NDS 864 - 5" Inch Pro Series Channel Kit
The NDS 864 5" inch Pro Series Channel Kit is a high-performance drainage solution designed for professional landscaping and hardscaping projects. This versatile kit provides efficient water management for driveways, patios, pool decks, and other outdoor areas prone to water accumulation.
Key Features:
- Channel is made of polypropylene (PP), 2 high-density polyethylene (HDPE) channel drain grates,
- UV-resistant for long-lasting performance
- Sleek, low-profile design
- Easy-to-install interlocking system
- Compatible with various grate options
Installation Instructions:
- Plan the layout of your drainage system.
- Excavate a trench 6" wider than the channel and deep enough to accommodate the desired slope (minimum 1/8" per foot).
- Pour a 3" concrete base in the trench and level it.
- Begin placing channel sections starting from the outlet or lowest point.
- Connect sections using the interlocking system, ensuring a tight fit.
- Install end caps and outlet adapters as needed.
- Secure channels in place with concrete backfill along the sides.
- Install your chosen grates by snapping them into place.
- Finish grade surrounding areas to be slightly higher than the channel edges.
Product Specifications:
- Material: channel is made of polypropylene (PP), 2 high-density polyethylene (HDPE) channel drain grates,
- Channel width: 5" inches (127 mm)
- Channel length: 39.4 inches (1 meter) per section
- Load class: Class B (61-175 PSI)
- Flow rate: 59 to 83 GPM
- Available grate options: Plastic, cast iron
- Compliance: Meets ASTM D1785 standards for physical properties of PVC pipe
Package Contents:
- 5 in. Pro Series Deep Profile channel
- 2 x Channel Drain Grates
- 2 x End caps
- 1 x Outlet adapter
- Installation instructions
The NDS 864 5" Pro Series Channel Kit offers a professional-grade drainage solution that combines durability, performance, and ease of installation. Its versatile design makes it suitable for a wide range of applications, ensuring effective water management for your outdoor projects.
Product and Technical Information

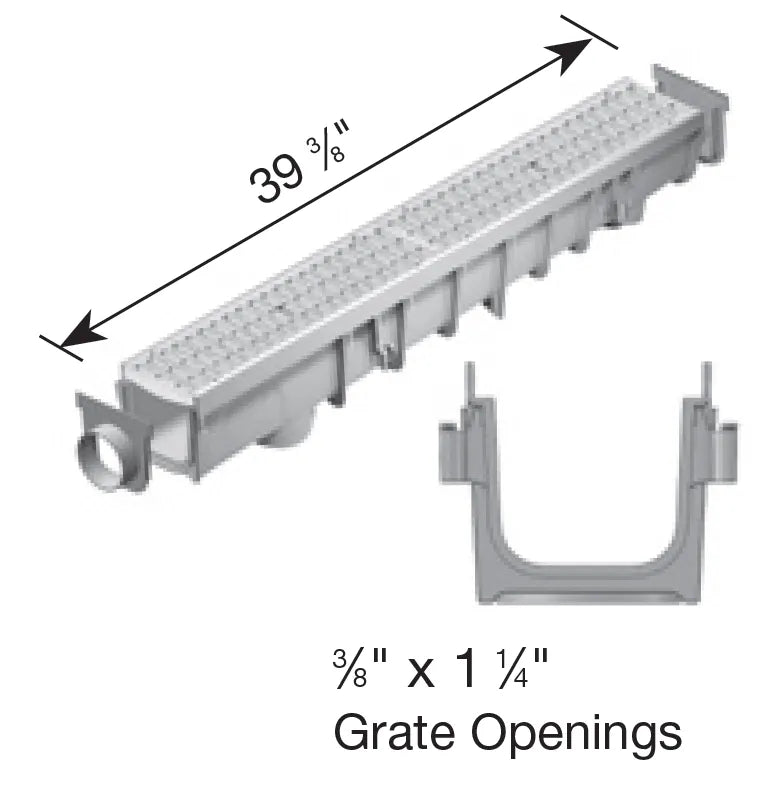

Dimensions: L 39-1/2" x W 5-1/2" x H 4-3/4"
NDS Channel Drain Installation Guide
NDS 5 Inch Pro Series Drain Kit - Technical Specifications
NDS 5 Inch Pro Series Grate Technical Specifications
Installation Instructions - NDS Pro Series Channel Drain
Installation Instructions - 3" and 4" PVC Coupling End Outlet
Installation Instructions - 3" and 4" PVC Coupling Bottom Outlet Connection
