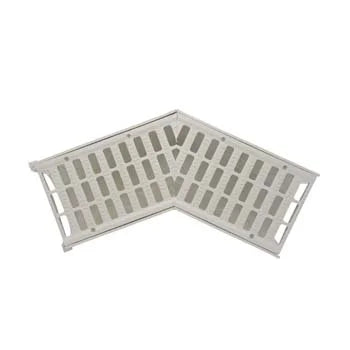

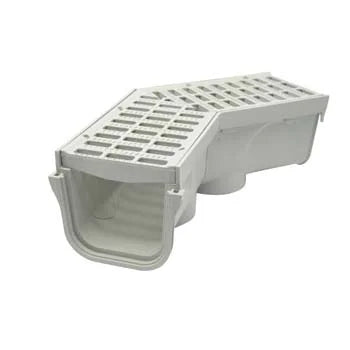

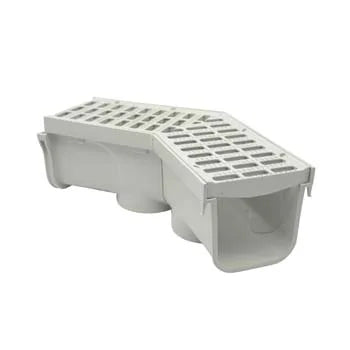

NDS 862 - 5" Pro Series Deep Profile Grate and Channel Drain 45-Degree Elbow
The NDS 862 5IN Pro Series Deep Profile Grate and Channel Drain 45 Degree Elbow is a high-quality drainage solution designed for professional landscaping and construction projects. This elbow component allows for seamless 45-degree turns in your drainage system, ensuring efficient water flow and optimal performance.
Key Features:
- 5-inch wide grate for substantial water intake
- Deep profile design for increased water capacity
- Durable construction for long-lasting performance
- Compatible with NDS Pro Series channel drain systems
- Ideal for residential and commercial applications
Installation Instructions:
- Excavate the area where the elbow will be installed, ensuring proper depth and width.
- Place a layer of gravel or crushed stone as a base for the elbow.
- Position the elbow at the desired 45-degree angle, ensuring it aligns with connecting channel sections.
- Connect the elbow to adjacent channel sections using NDS connecting clips.
- Secure the elbow in place using concrete or backfill material.
- Install the grate onto the elbow, ensuring it's properly seated and locked.
- Grade the surrounding area to direct water flow towards the drain system.
Product Specifications:
- Material: High-impact polypropylene

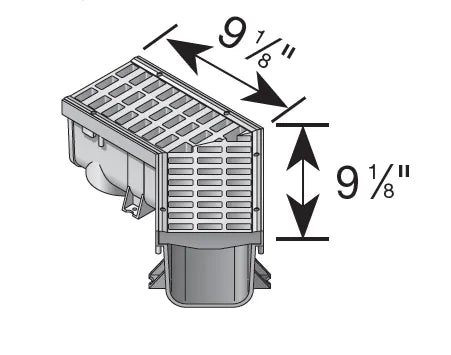

- Dimensions: 5" width
- Color: Gray
- UV resistant: Yes
- Chemical resistant: Yes
- Freeze/thaw resistant: Yes
Applications:
- Driveways
- Patios
- Pool decks
- Landscaped areas
- Commercial properties
The NDS 862 5IN Pro Series Deep Profile Grate and Channel Drain 45 Degree Elbow is an essential component for creating efficient and effective drainage systems in various settings. Its robust construction and thoughtful design make it a top choice for professionals seeking reliable water management solutions.
Product and Technical Information
Installation Instructions - NDS Pro Series Channel Drain

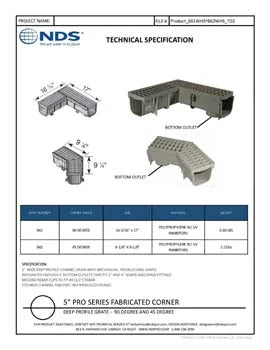

Technical Specifications - NDS 5" Pro Series Deep Profile Grate and Channel Drain 90 - Degree Elbow
