NDS 861 - 5" Pro Series Deep Profile Grate and Channel Drain 90 - Degree Elbow

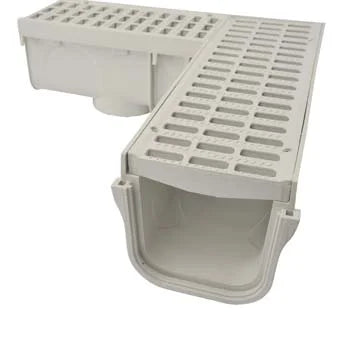

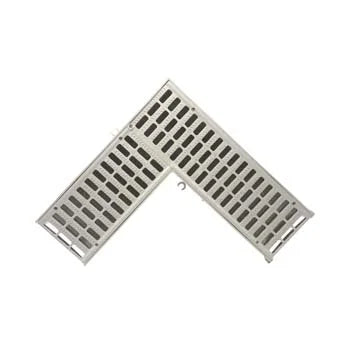

The NDS 861 5IN Pro Series Deep Profile Grate and Channel Drain 90 Degree Elbow is a high-performance drainage solution designed for professional landscaping and hardscaping projects. This 90-degree elbow component allows for seamless turns in your drainage system, ensuring efficient water management in residential and commercial applications.
Key Features:
- 5-inch wide deep profile design for maximum water flow
- Durable, UV-resistant material for long-lasting performance
- Compatible with NDS Pro Series channel drain systems
- Ideal for driveways, patios, pool decks, and other outdoor areas
- ADA compliant when used with appropriate grates
Installation Instructions:
- Excavate the area where the elbow will be installed, ensuring proper depth and width.
- Place a layer of gravel or crushed stone as a base for stability.
- Position the elbow at the desired 90-degree turn in your drainage system.
- Connect the elbow to adjoining channel drain sections using NDS-approved connectors.
- Ensure the elbow is level and properly aligned with the rest of the system.
- Secure the elbow in place using concrete or other appropriate material.
- Install the grate on top of the elbow, ensuring it's properly seated and secure.
- Finish the surrounding area with your chosen surface material, leaving the grate exposed for water entry.
Product Specifications:
- Material: High-density polyethylene (HDPE)

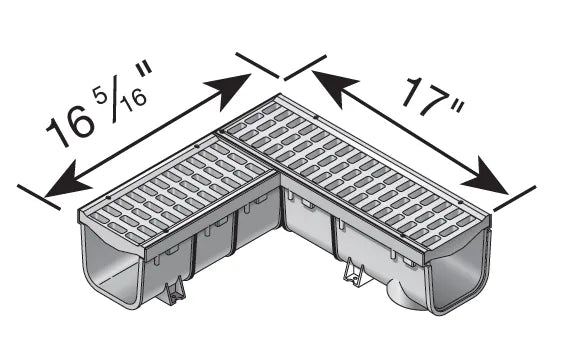

- Dimensions: 5" width x 5" height (channel interior)
- Length: Varies based on specific elbow configuration
- Load class: Light duty to heavy duty (depending on grate selection)
- Flow rate: Up to X gallons per minute (varies based on slope and conditions)
- Color: Gray (channel), various options for grates
- Compatibility: NDS Pro Series channel drain components
- Warranty: Limited lifetime warranty against defects
For optimal performance, pair this 90-degree elbow with NDS Pro Series channel drains and grates. Always follow local building codes and consult with a professional for complex drainage projects.
