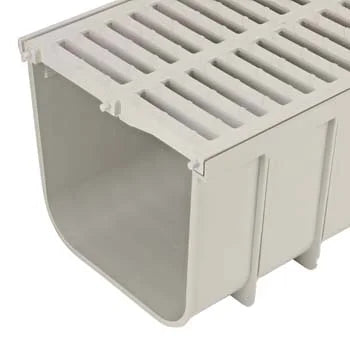

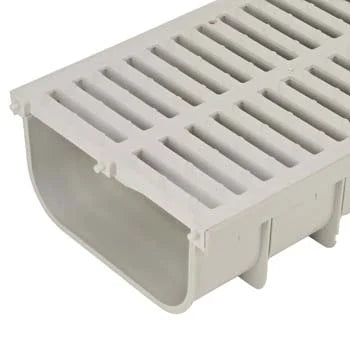

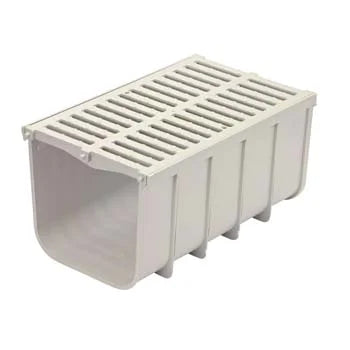

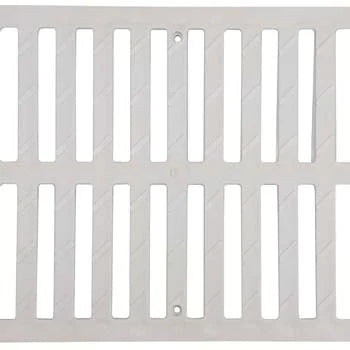

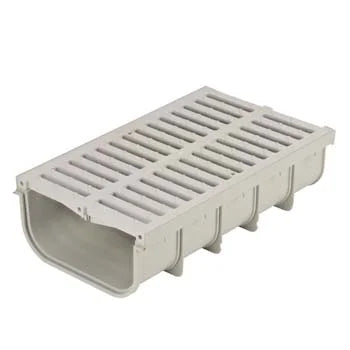

NDS 847 - 12" Pro Series Light Traffic Channel Grate - Gray
The NDS 847 12IN Pro Series Channel Grate is a high-quality drainage solution designed for residential and commercial applications. This durable and efficient grate provides excellent water management for driveways, patios, pool decks, and other areas prone to water accumulation.
Key Features:
- 12-inch width for optimal water flow
- Corrosion-resistant construction
- ADA compliant
- Suitable for pedestrian and light vehicle traffic
- Easy installation and maintenance
Product Specifications:
- Material: High-impact polypropylene

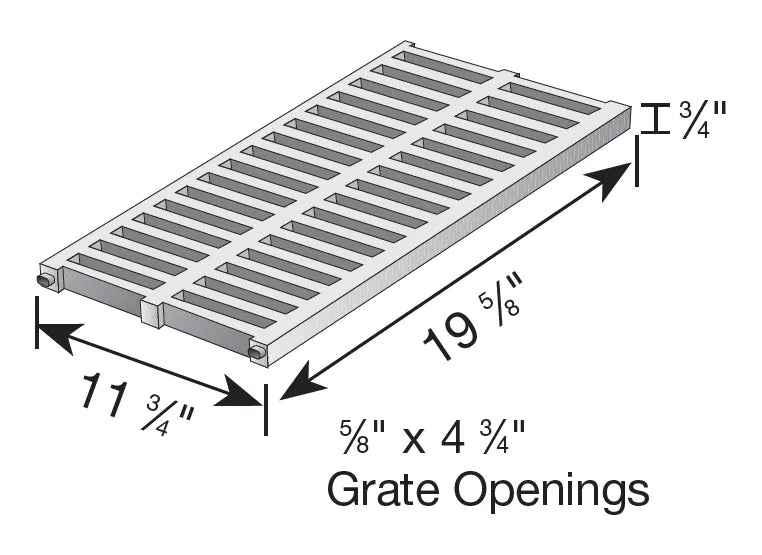

- Dimensions: 11-3/4"W - 19-5/8"L
- Load Class: H-10 (up to 20,000 lbs)
- Flow Rate: Up to 17.6 GPM
- Color: Gray
- Compatible with NDS Pro Series Channel Drain system
Installation Instructions:
- Excavate a trench slightly wider and deeper than the channel drain.
- Create a 4-inch concrete base in the trench and level it.
- Start assembling the channel sections from the outlet end, ensuring proper slope.
- Connect subsequent sections, using the male-female interlocking system.
- Install end caps and outlets as needed.
- Secure the channel drain with concrete backfill, leaving 1/8 inch below the surrounding surface.
- Once concrete has cured, snap the grates into place.
- Finish the surrounding surface to be flush with the top of the grate.
The NDS 847 12IN Pro Series Channel Grate offers a professional-grade drainage solution that combines durability, efficiency, and ease of installation. Its robust construction and sleek design make it an ideal choice for various applications where effective water management is crucial.
