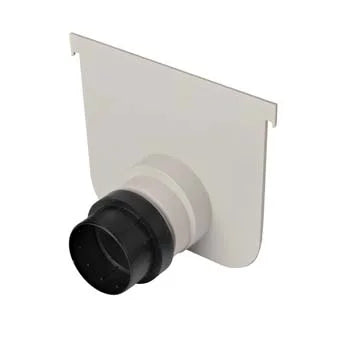

NDS 844 - 12" Pro Series Deep Profile End Cap/End Outlet

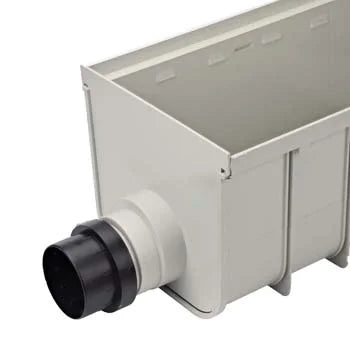

The NDS 844 12IN Pro Series Deep Profile End Cap End Outlet is a high-quality drainage solution designed for professional landscaping and construction projects. This versatile end outlet provides an effective way to direct water flow from your channel drain system while maintaining a sleek, low-profile appearance.
Key Features:
- Compatible with 12-inch wide NDS Pro Series channel drains
- Deep profile design for increased water capacity
- Durable, UV-resistant plastic construction
- Pre-marked drill points for easy customization
- Suitable for residential and commercial applications
Installation Instructions:
- Ensure the channel drain is properly installed and level.
- Clean the end of the channel where the end cap will be attached.
- Apply a bead of silicone sealant around the edge of the channel.
- Align the end cap with the channel end, ensuring a snug fit.
- Secure the end cap using stainless steel self-tapping screws (not included).
- If needed, drill out the pre-marked outlet hole using an appropriate-sized hole saw.
- Connect the outlet pipe to your drainage system using PVC cement or mechanical coupling.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Color: Black

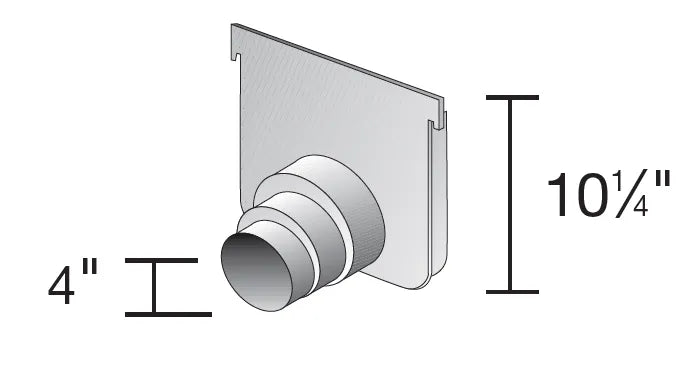

- Dimensions: 12" W x 12.5" H x 3" D (approximate)
- Weight: 1.86 lbs
- Maximum flow rate: 21 gallons per minute (GPM)
- Outlet size: 4-inch diameter (customizable)
- Temperature range: -40°F to 140°F
- Chemical resistance: Excellent
Compatible with NDS Pro Series channel drains and grates (sold separately). Ideal for use in driveways, parking lots, pool decks, and other areas requiring efficient water management.
