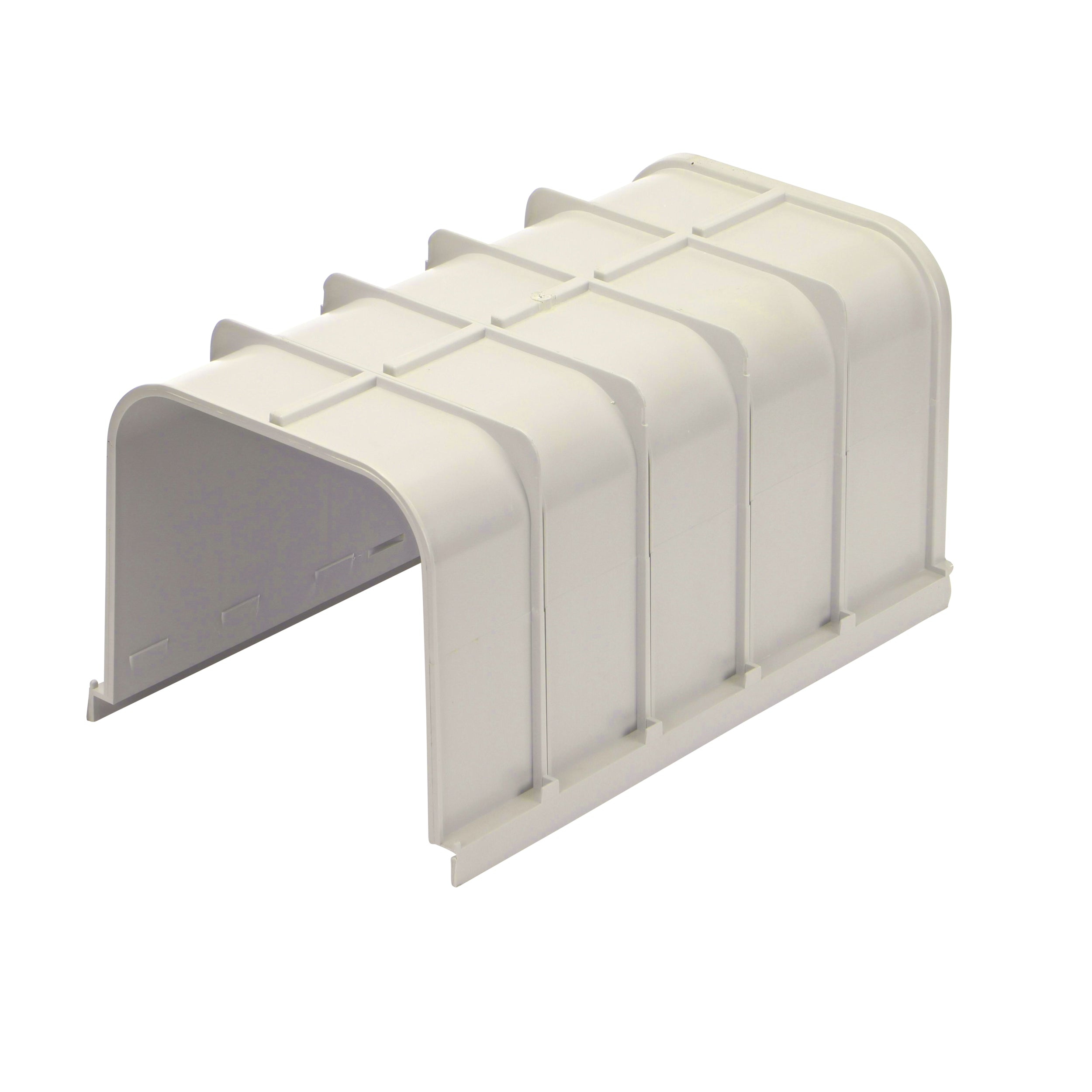

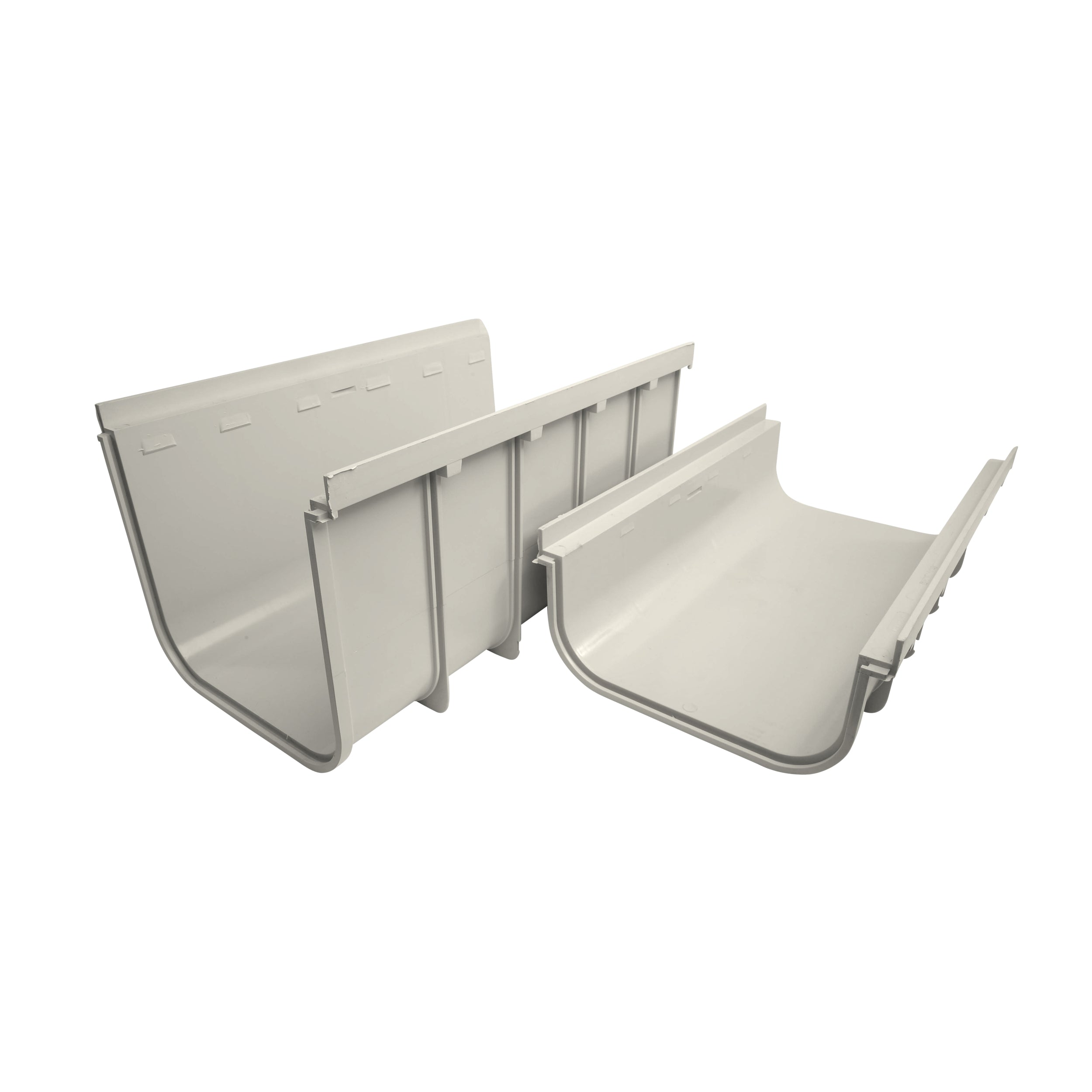

NDS 843 - 12" Pro Series Deep Profile Channel Drain
The NDS 843 12IN Pro Series Deep Profile Channel Drain is a high-performance drainage solution designed for commercial and residential applications requiring efficient water management. This robust channel drain system offers superior strength and durability, making it ideal for driveways, parking lots, and other areas with heavy vehicle traffic.
Key Features:
- 12-inch wide channel for maximum water flow
- Deep profile design for increased capacity
- Durable, high-density polyethylene construction

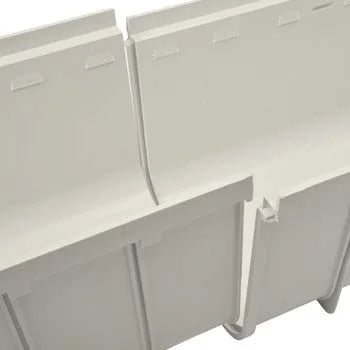

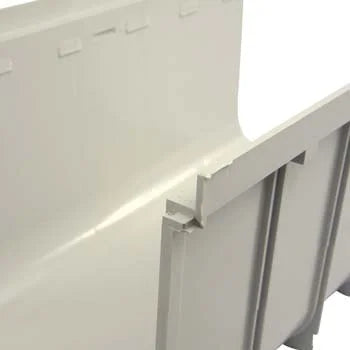

- Interlocking system for easy installation

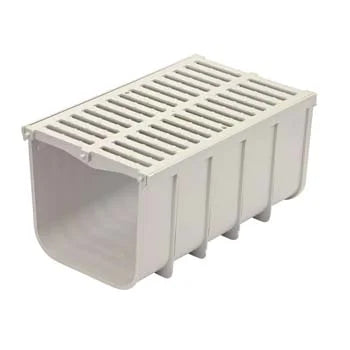

- Compatible with various grate options
- Neutral sand color blends with surroundings
Product Specifications:

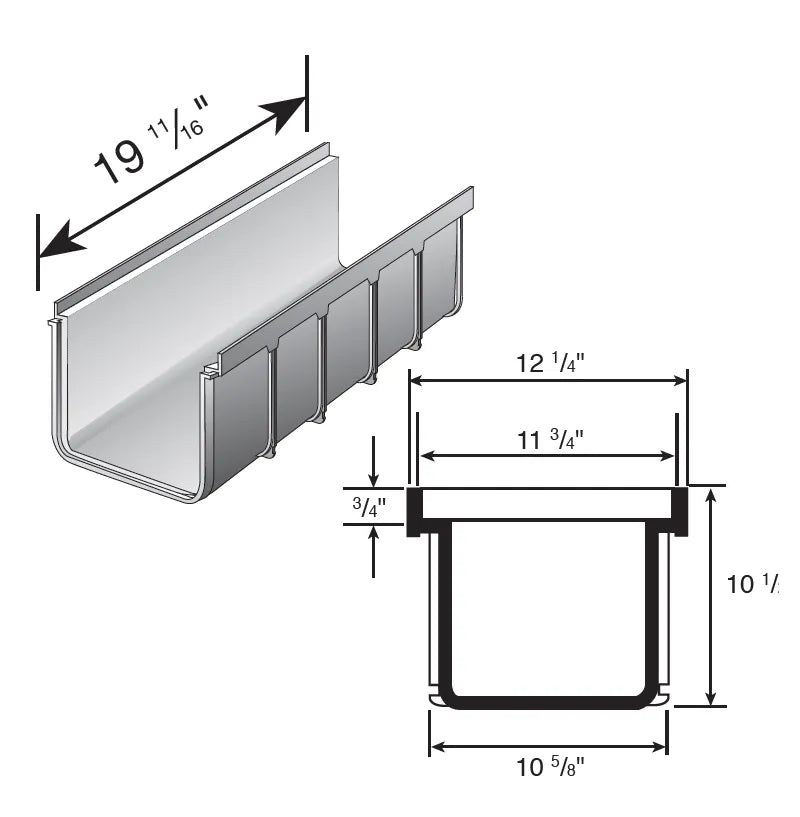

- Dimensions: 12" W x 39.4" L x 12.2" D (per section)
- Material: High-density polyethylene (HDPE)
- Load class: Up to Class C (when paired with appropriate grate)
- Flow rate: Up to 77.5 GPM (depending on slope)
- Available accessories: End caps, bottom outlets, catch basins
Installation Instructions:
- Excavation:
- Dig a trench 16" wide and at least 14" deep.
- Ensure a minimum 1/8" per foot slope for proper drainage.
- Base preparation:
- Pour a 2" thick concrete base in the trench.
- Allow concrete to set before proceeding.
- Channel placement:
- Start at the lowest point of the drainage run.
- Place channels end-to-end, ensuring proper alignment and interlocking.
- Use end caps at the start and end of the run.
- Securing channels:
- Pour concrete around the sides of the channels, leaving the top 1" free for grate installation.
- Ensure channels remain level during concrete pour.
- Grate installation:
- Once concrete has cured, snap grates into place.
- Secure grates with provided locking mechanisms if applicable.
- Final steps:
- Backfill and compact surrounding area.
- Finish surface to desired level, ensuring it's slightly higher than the grate for proper water flow.
The NDS 843 12IN Pro Series Deep Profile Channel Drain offers a professional-grade solution for effective water management in various settings. Its durable construction and easy installation make it an excellent choice for contractors and DIY enthusiasts alike.
Product and Technical Information
Technical Specifications - NDS 12" Pro Series Deep Profile Channel Drain
