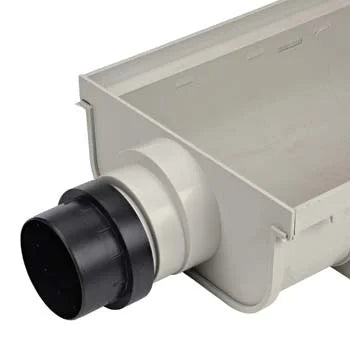

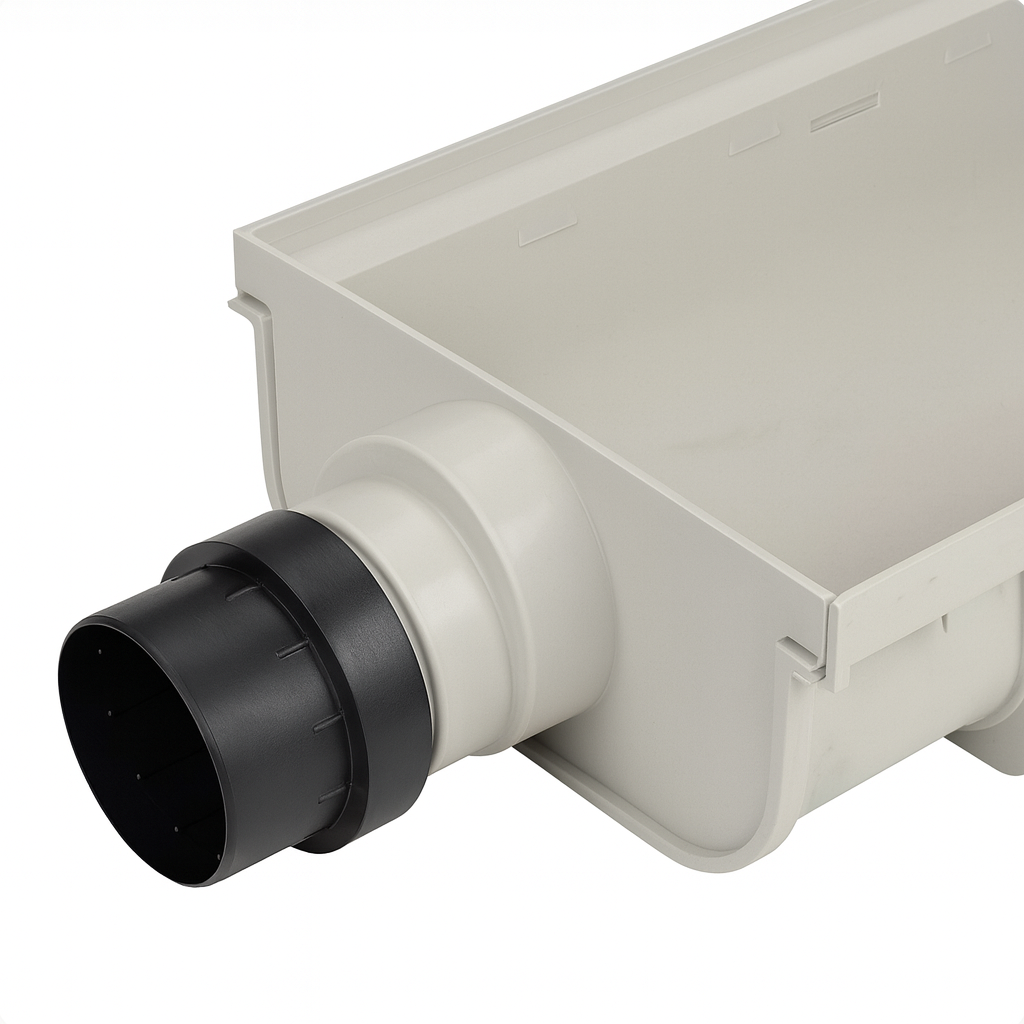

NDS 841 - 12" Pro Series Shallow Profile End Cap/End Outlet

NDS 841 - 12" Pro Series Shallow Profile End Cap/End Outlet

The NDS 841 12IN Pro Series Shallow Profile End Cap End Outlet with Knockout is a high-quality drainage solution designed for professional landscaping and construction projects. This versatile end cap features a built-in outlet and knockout, allowing for easy integration with various drainage systems. Its shallow profile makes it ideal for installations with limited depth requirements.

Key Features:

• 12-inch width
• Shallow profile design
• Built-in end outlet
• Knockout for customizable drainage options
• Compatible with NDS Pro Series channel drains
• Durable, UV-resistant material

Installation Instructions:

1. Ensure the channel drain is properly installed and level.
2. Clean the end of the channel drain where the end cap will be attached.
3. Apply a bead of silicone sealant around the edge of the channel drain.
4. Align the end cap with the channel drain and press firmly to secure.
5. If using the knockout, remove it with a hammer and chisel.
6. Connect the drainage pipe to the outlet or knockout opening.
7. Secure the connection with appropriate fittings and sealant.
8. Backfill and compact the soil around the installed end cap.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Color: Black
• Chemical resistance: Excellent
• UV resistance: Yes
• Temperature range: -40°F to 140°F (-40°C to 60°C)
• Compatibility: NDS Pro Series channel drain

Product and Technical Information

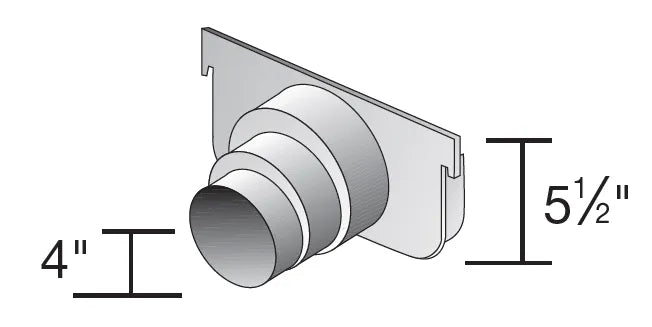

Technical Specifications - NDS 12" Pro Series Shallow Profile End Cap/End Outlet
