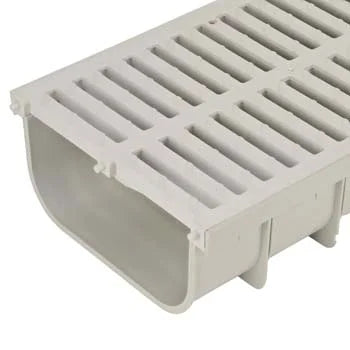

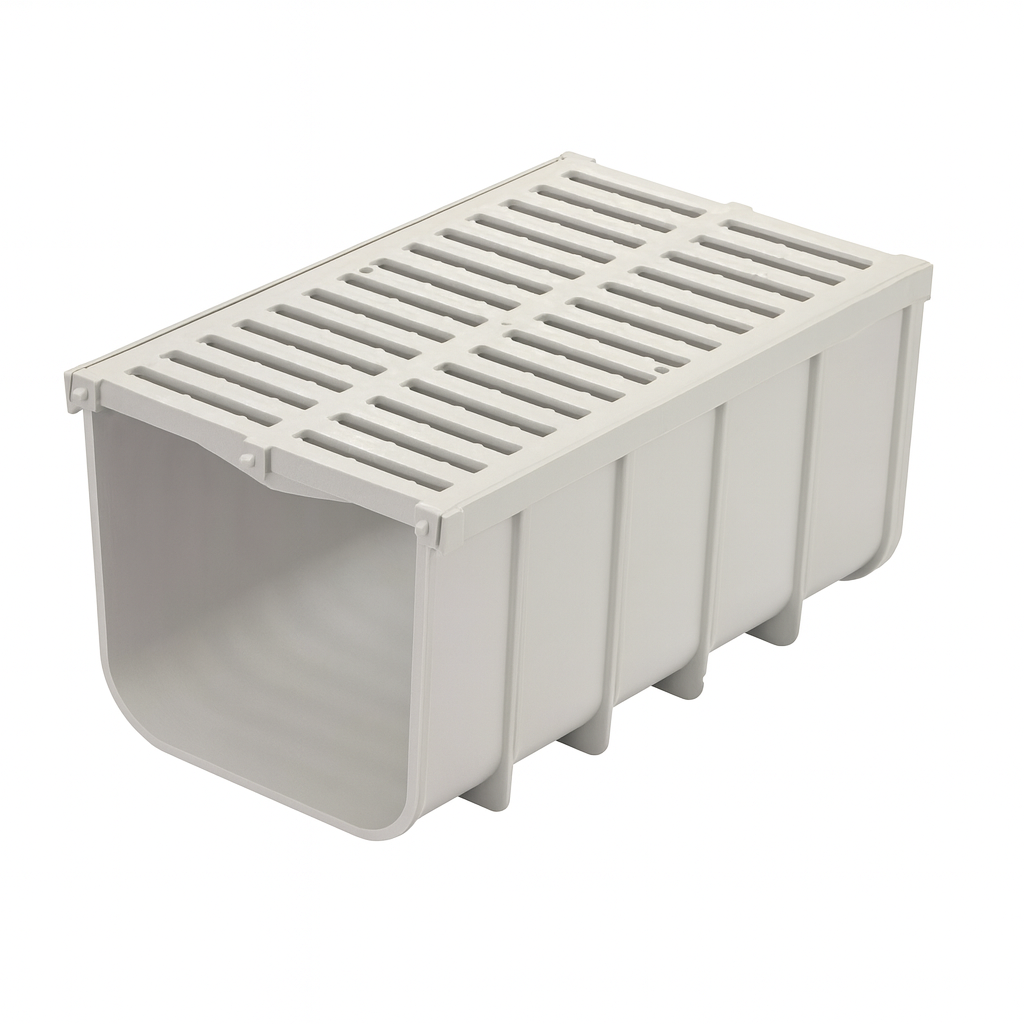

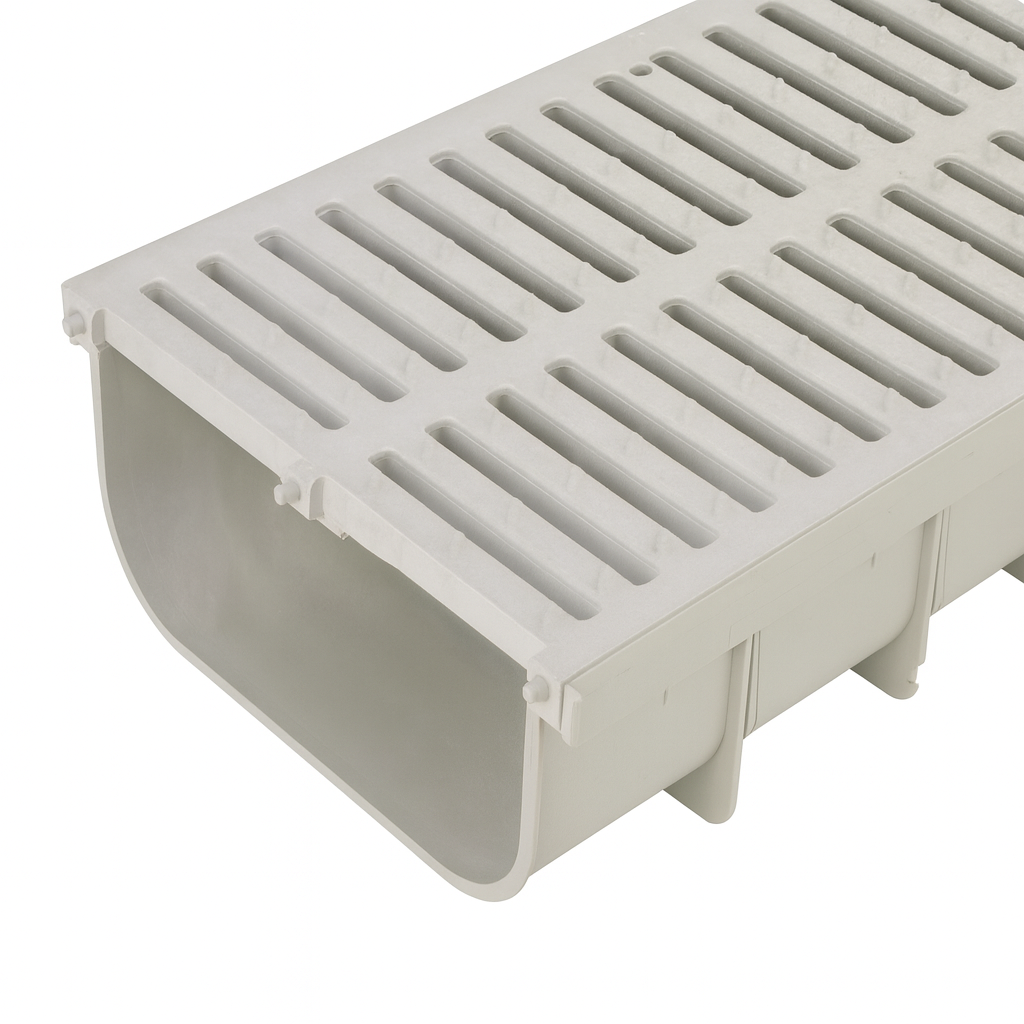

NDS 840 - 12" Pro Series Shallow Profile Channel Drain
The NDS 840 12IN Pro Series Shallow Profile Channel Drain is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This innovative channel drain system offers superior water flow capacity in a low-profile design, making it ideal for driveways, patios, pool decks, and other areas where effective surface water removal is crucial.
Key Features:
- 12-inch wide channel for maximum water flow
- Shallow profile for easy integration into existing landscapes
- Durable, high-density polyethylene construction
- UV-resistant material for long-lasting performance
- Interlocking system for seamless installation
- Compatible with various grate options for customized aesthetics
Product Specifications:
- Dimensions: 12" W x 39.4" L x 3.2" H (per section)
- Material: High-density polyethylene (HDPE)
- Load class: Light to medium-duty applications
- Flow rate: Up to 23 gallons per minute (GPM)
- Available accessories: End caps, bottom outlets, connectors
Installation Instructions:
- Plan the drain layout and mark the installation area.
- Excavate a trench approximately 16 inches wide and 5 inches deep, ensuring a slight slope for proper water flow.
- Create a 2-inch thick gravel base in the trench and compact it.
- Place the channel sections in the trench, starting from the outlet point. Ensure proper alignment and slope.
- Connect the channel sections using the built-in interlocking system.
- Install end caps at the beginning and end of the drain run.
- Pour concrete around the sides of the channel, leaving the top 1/8 inch below the desired finished grade.
- Allow the concrete to cure according to manufacturer recommendations.
- Install the selected grates by snapping them into place.
- Backfill and finish the surrounding area to match the existing surface.
The NDS 840 12IN Pro Series Shallow Profile Channel Drain offers a reliable and efficient solution for managing surface water, helping to prevent flooding and protect your property. Its easy installation and versatile design make it an excellent choice for both DIY enthusiasts and professional contractors.
