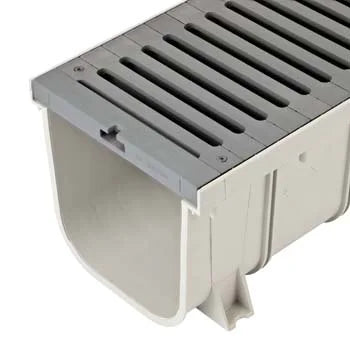

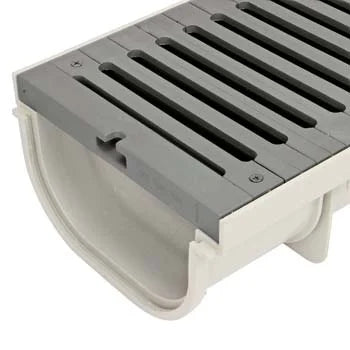

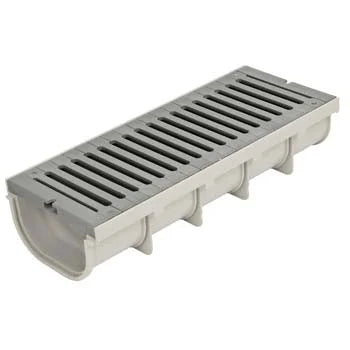

NDS 838 - 8" Pro Series Channel Grate
The NDS 838 8IN Pro Series Channel Grate is a high-performance drainage solution designed for heavy traffic areas. This durable and efficient grate system effectively manages water runoff while withstanding the demands of vehicular and pedestrian traffic.
Key Features:
- Heavy-duty construction for high-traffic areas
- 8-inch width for optimal water flow
- Corrosion-resistant materials
- Easy installation and maintenance
Installation Instructions:
- Excavate a trench to the required depth and width, allowing for the channel and surrounding concrete.
- Place a layer of gravel at the bottom of the trench for improved drainage.
- Install the channel sections, ensuring proper alignment and slope for water flow.
- Connect adjacent channel sections using the provided connectors.
- Secure end caps at the start and end of the channel run.
- Pour concrete around the channels, leaving the top edge slightly below the final surface level.
- Once the concrete has cured, snap the grates into place along the channel.

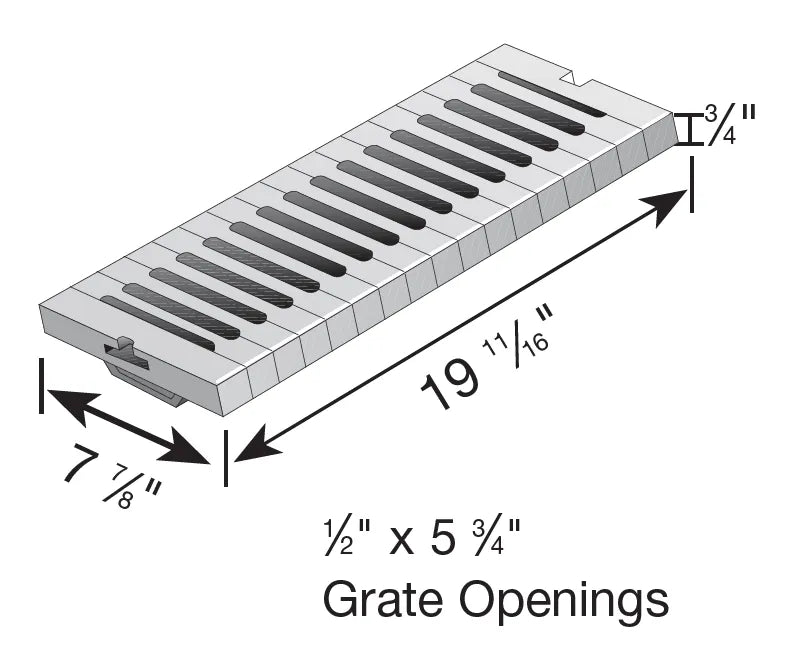

Product Specifications:
- Material: Heavy-duty polymer
- Length: 39.4 inches (1 meter)
- Width: 8 inches
- Load Class: C - Suitable for parking lots, driveways, and areas with occasional heavy vehicle traffic
- Flow Rate: Up to 21 gallons per minute

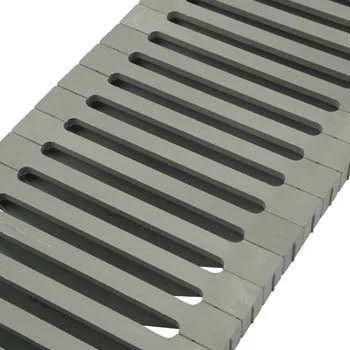

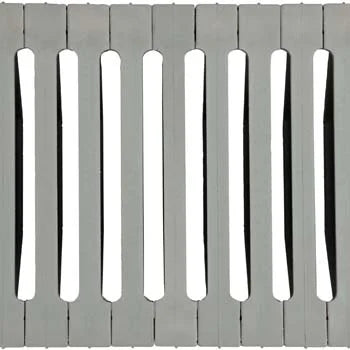

- Grate Design: 0.25-inch slot openings
- UV Resistant: Yes
- Chemical Resistant: Yes
- Warranty: 10-year limited manufacturer warranty
The NDS 838 8IN Pro Series Channel Grate offers a robust drainage solution for areas experiencing heavy traffic. Its durable construction and efficient design make it an ideal choice for parking lots, driveways, and other high-use areas requiring effective water management.
Product and Technical Information
Technical Specifications - NDS Heavy Traffic 8" Pro Series Channel Grate
