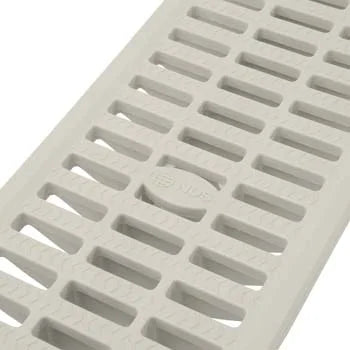

NDS 837 - 8" Pro Series Channel Grate
The NDS 837 8IN Pro Series Channel Grate is a high-performance drainage solution designed for residential and light commercial applications. This durable and attractive grate effectively manages surface water runoff, preventing flooding and erosion while enhancing the aesthetics of your property.
Key Features:
- Professional-grade construction
- 8-inch width for optimal water flow
- Sleek, low-profile design
- Corrosion-resistant materials
- Compatible with NDS Pro Series Channel Drain systems
Installation Instructions:
- Excavate a trench according to your drainage plan, ensuring proper slope for water flow.
- Install the NDS Pro Series Channel Drain system following manufacturer guidelines.
- Place the 837 8IN grate onto the channel, ensuring it sits flush and level.
- Secure the grate using the provided locking mechanisms.
- Backfill and compact the surrounding area, leaving the grate exposed.
Product Specifications:
- Material: High-impact polypropylene
- Length: 39.4 inches (1 meter)
- Width: 8 inches
- Height: 0.79 inches
- Load class: Light duty (up to 37 psi)
- Color: Gray (other colors available upon request)
- UV resistant
- Chemical resistant
- Temperature range: -40°F to 180°F
The NDS 837 8IN Pro Series Channel Grate offers a perfect blend of functionality and style for your drainage needs. Its robust construction and easy installation make it an ideal choice for driveways, patios, pool decks, and other areas requiring efficient water management.
Product and Technical Information
Technical Specifications - NDS 8" Pro Series Channel Grate
