NDS 836 - 8" Pro Series Channel Grate (Pedestrian Traffic)

NDS 836 - 8" Pro Series Channel Grate (Pedestrian Traffic)

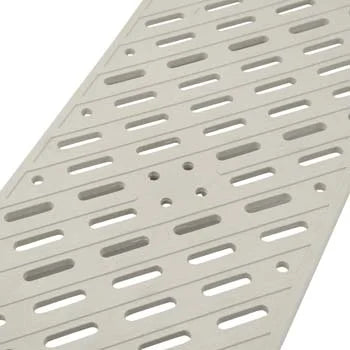

The NDS 836 8IN Pro Series Channel Grate is a high-performance drainage solution designed for both residential and commercial applications. This durable grate provides effective water management while maintaining an aesthetically pleasing appearance.

Key Features:

• Professional-grade construction
• 8-inch width for optimal water flow
• Corrosion-resistant materials
• ADA compliant
• Suitable for various traffic loads

Installation Instructions:

1. Excavate the area to the required depth and width.
2. Install the channel body, ensuring proper slope for drainage.
3. Pour concrete around the channel, leaving space for the grate.
4. Once concrete has cured, place the grate into the channel.
5. Secure the grate using the provided locking mechanisms.

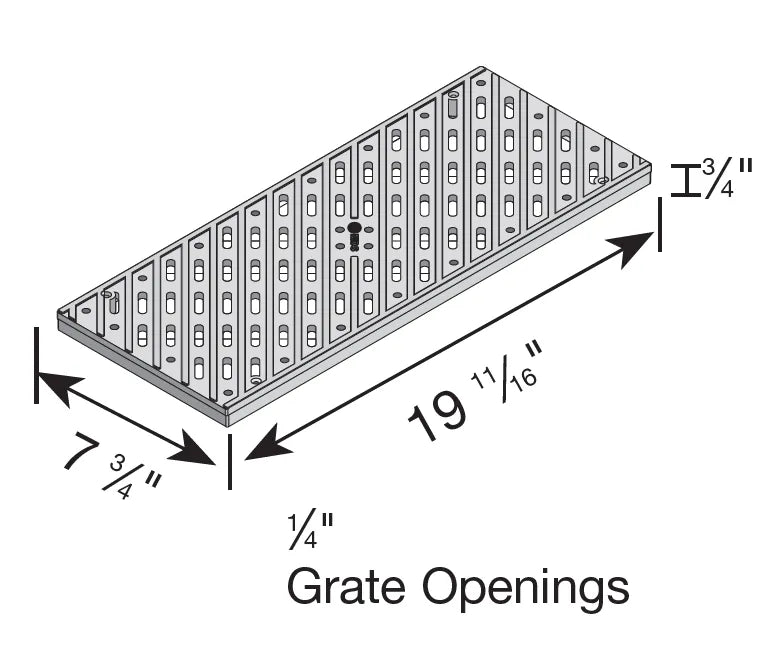

Product Specifications:

• Material: High-impact polypropylene
• Length: 19 11/16 inches
• Width: 7 3/4 inches
• Height: 3/4 inch
• Load Class: C (up to 56,000 lbs)
• Color: Gray
• UV resistant
• Chemical resistant
• Temperature range: -40°F to 180°F

Product and Technical Information

Technical Specifications - NDS 8" Pro Series Channel Grate, Pedestrian Traffic
