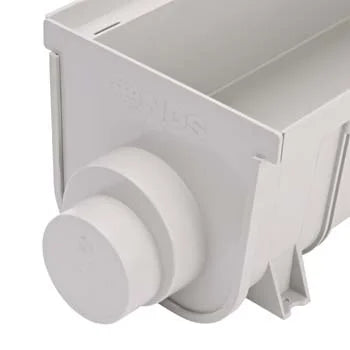

NDS 834 - 8" Pro Series Deep Profile End Cap/End Outlet
The NDS 834 8IN Pro Series Deep Profile End Cap End Outlet is a high-quality drainage solution designed for professional landscaping and construction projects. This versatile end outlet is compatible with NDS 8-inch Pro Series channel drains, providing an efficient way to direct water flow from your drainage system.
Key Features:
- Compatible with 8-inch NDS Pro Series channel drains
- Deep profile design for increased water capacity
- Durable, UV-resistant plastic construction
- Pre-scored outlet for various pipe sizes
- Easy to install and maintain
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Color: Gray
- Dimensions: 8" width x 9.8" length x 12.2" depth
- Weight: .54 lbs
- Maximum flow rate: 55 gallons per minute
- Outlet sizes: 3", 4", or 6" round pipe (knock-out required)
Installation Instructions:
- Ensure the channel drain is properly installed and leveled.
- Clean the end of the channel drain where the end outlet will be attached.
- Apply a bead of landscape adhesive around the perimeter of the channel end.
- Align the end outlet with the channel drain and press firmly to secure.
- Allow adhesive to cure according to manufacturer's instructions.
- Determine the required outlet pipe size and use a utility knife to cut along the pre-scored line for the appropriate diameter.
- Connect the outlet pipe to the end cap, ensuring a snug fit.
- Backfill around the end outlet and pipe, compacting the soil to prevent settling.
This NDS 834 8IN Pro Series Deep Profile End Cap End Outlet is an essential component for completing your professional drainage system. Its robust construction and versatile design make it suitable for a wide range of applications, from residential landscapes to commercial properties.
Product and Technical Information
Technical Specifications - NDS 8" Pro Series Deep Profile End Cap/End Outlet Grate
