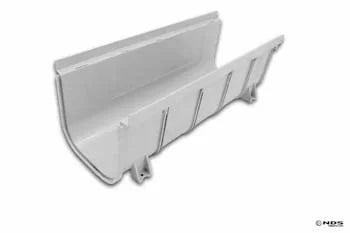

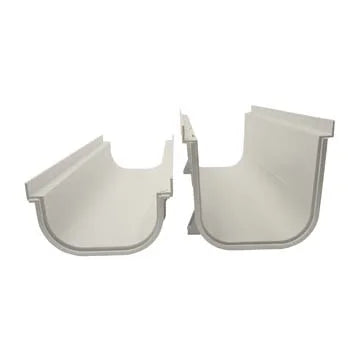

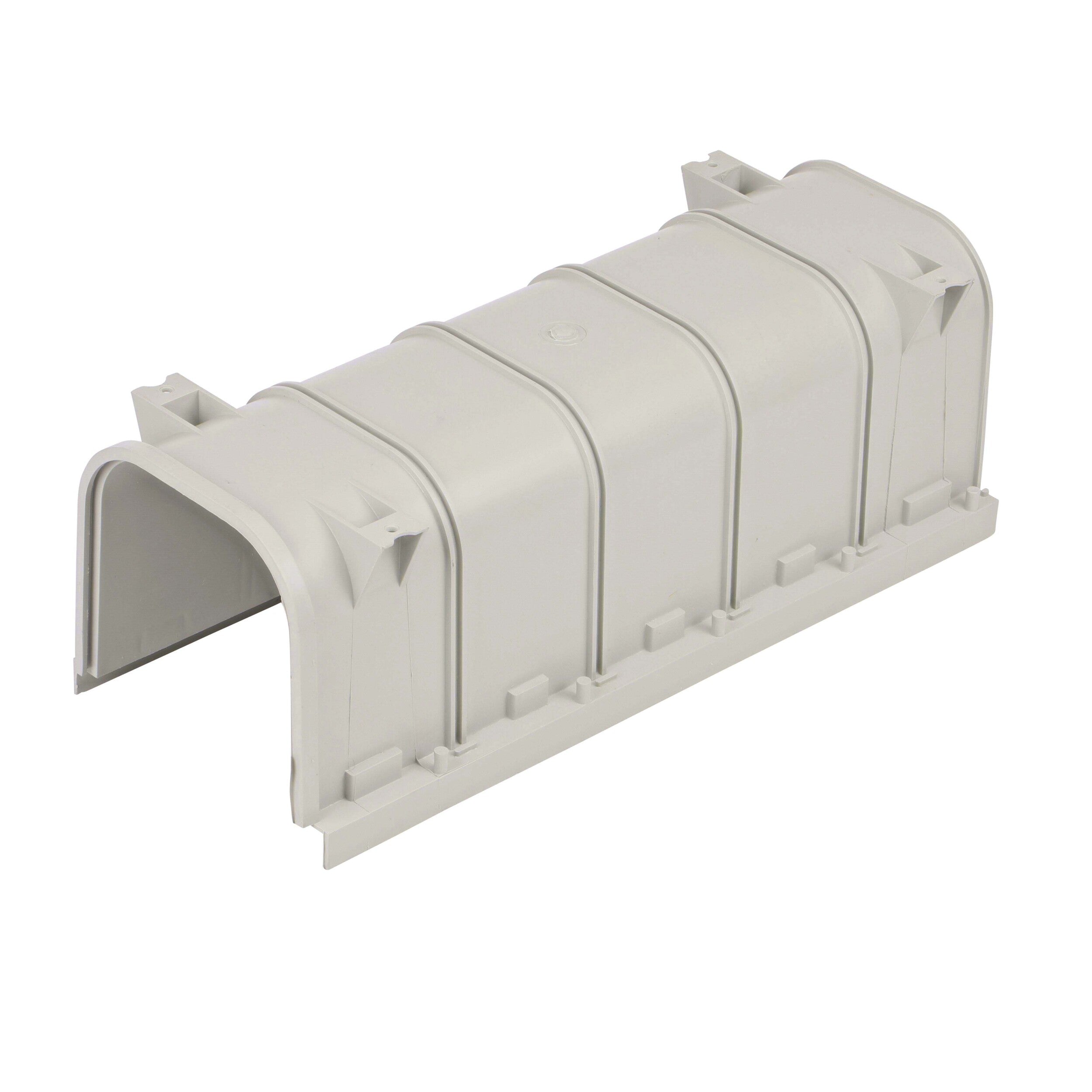

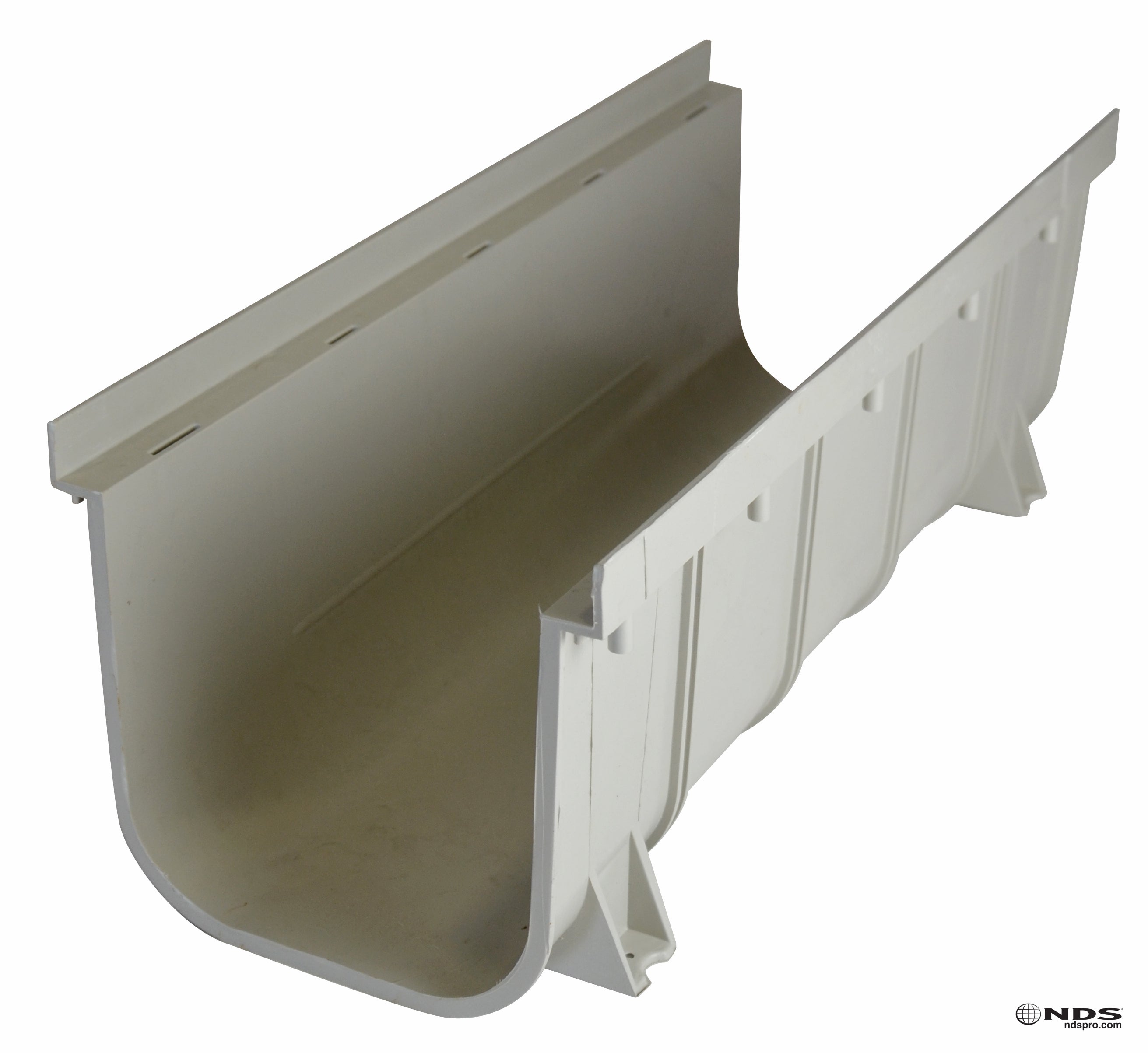

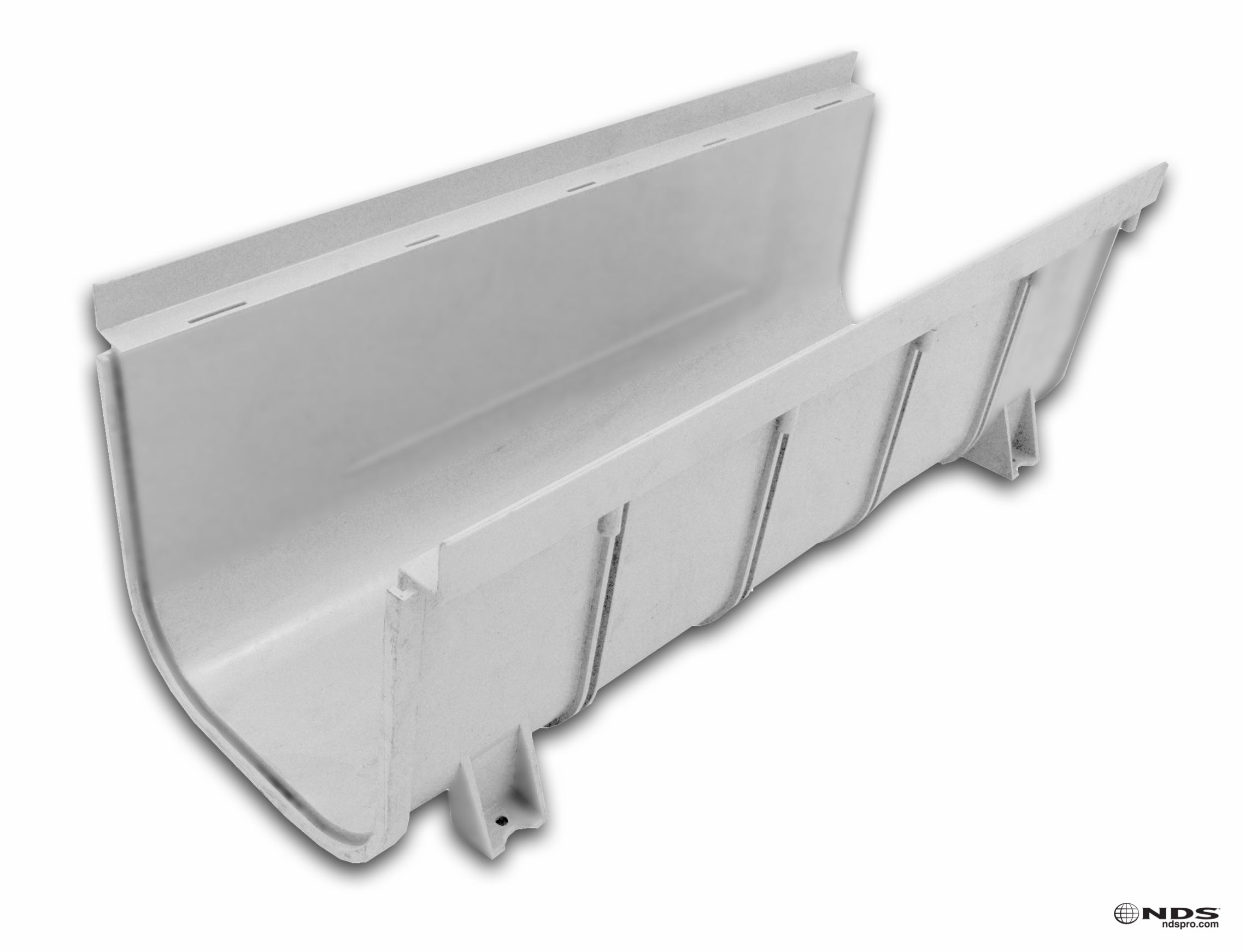

NDS 833 - 8" Pro Series Deep Profile Drain
The NDS 833 8IN Pro Series Deep Profile Drain is a high-performance drainage solution designed for commercial and residential applications requiring efficient water management. This robust drain features a deep profile for increased water flow capacity, making it ideal for areas prone to heavy rainfall or runoff.
Key Features:
- 8-inch width for optimal water collection
- Deep profile design for increased flow capacity
- Durable, UV-resistant polymer construction
- Heavy-duty grate for vehicular traffic
- Modular design for easy installation and customization
Product Specifications:
- Material: High-impact polypropylene
- Dimensions: 8-1/4"W - 19-11/16"L
- Flow rate: Up to 55 gallons per minute
- Load class: H-20 (suitable for vehicular traffic)
- Available grate options: Black, gray, or sand color
Installation Instructions:
- Excavation:
- Dig a trench 12 inches wider than the drain body and 2 inches deeper than the finished drain height.
- Ensure a minimum 1% slope for proper water flow.
- Base preparation:
- Add 2 inches of compacted gravel or sand to the trench bottom.
- Level and compact the base material.
- Drain placement:
- Position the drain sections in the trench, starting from the lowest point.
- Connect multiple sections using the built-in interlocking system.
- Ensure proper alignment and maintain the slope.
- Pipe connection:
- Connect the drain to the drainage pipe system using appropriate fittings.
- Seal connections to prevent leaks.
- Backfilling:
- Carefully backfill around the drain with gravel or crushed stone.
- Compact the fill material in layers to prevent settling.
- Finishing:
- Install the grates onto the drain body.
- Adjust surrounding surface to be 1/8 inch above the grate for proper drainage.
- Final inspection:
- Verify proper slope and connections.
- Perform a water test to ensure efficient drainage.
The NDS 833 8IN Pro Series Deep Profile Drain offers superior water management for a wide range of applications. Its durable construction and efficient design make it an excellent choice for contractors and property owners seeking a reliable drainage solution.
