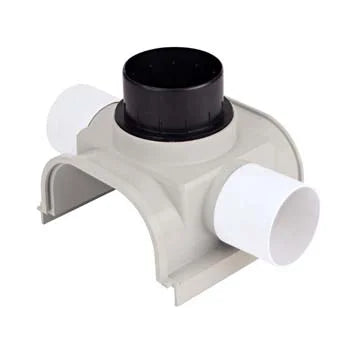

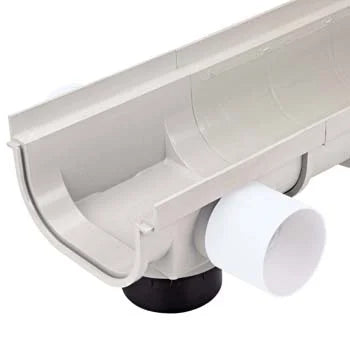

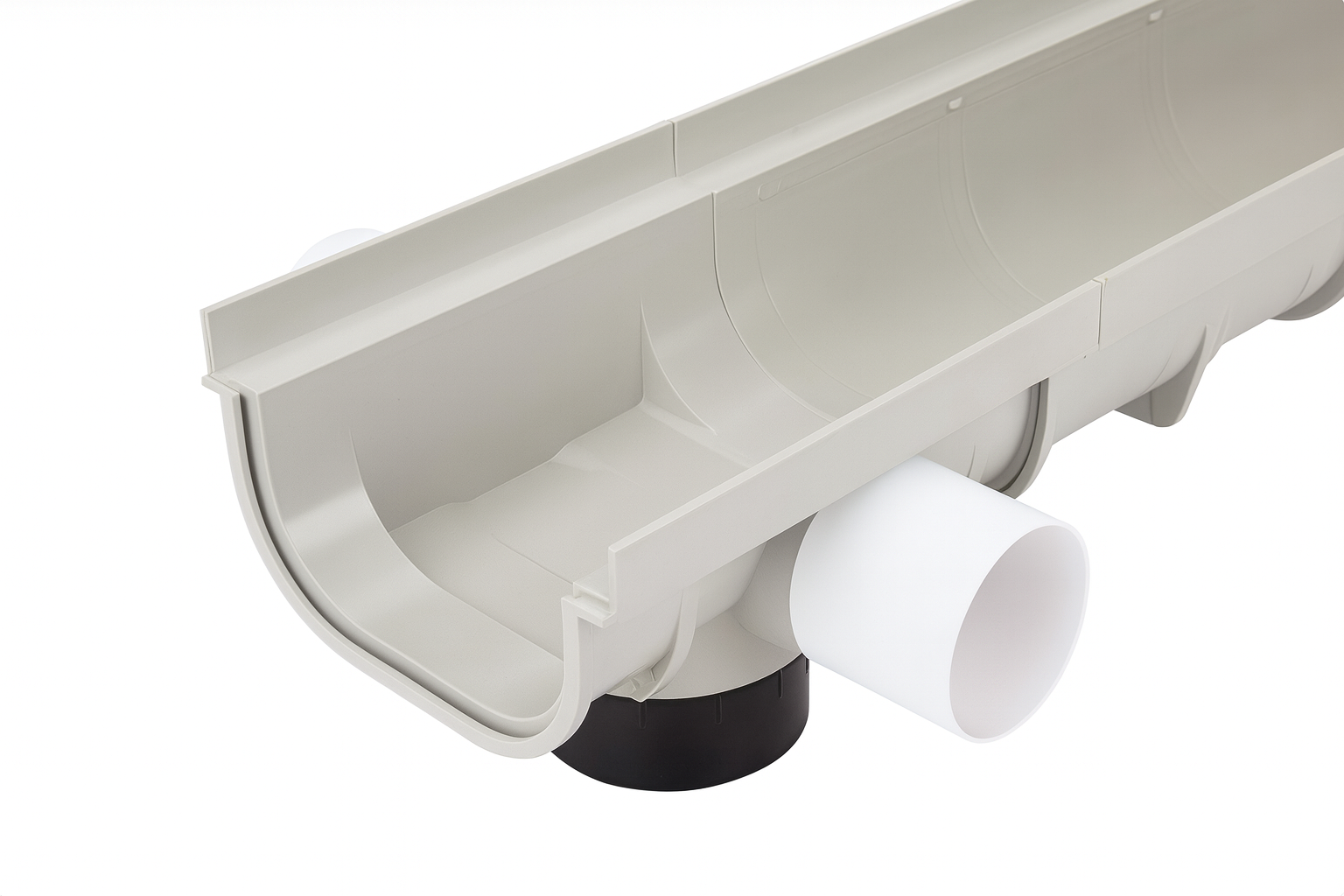

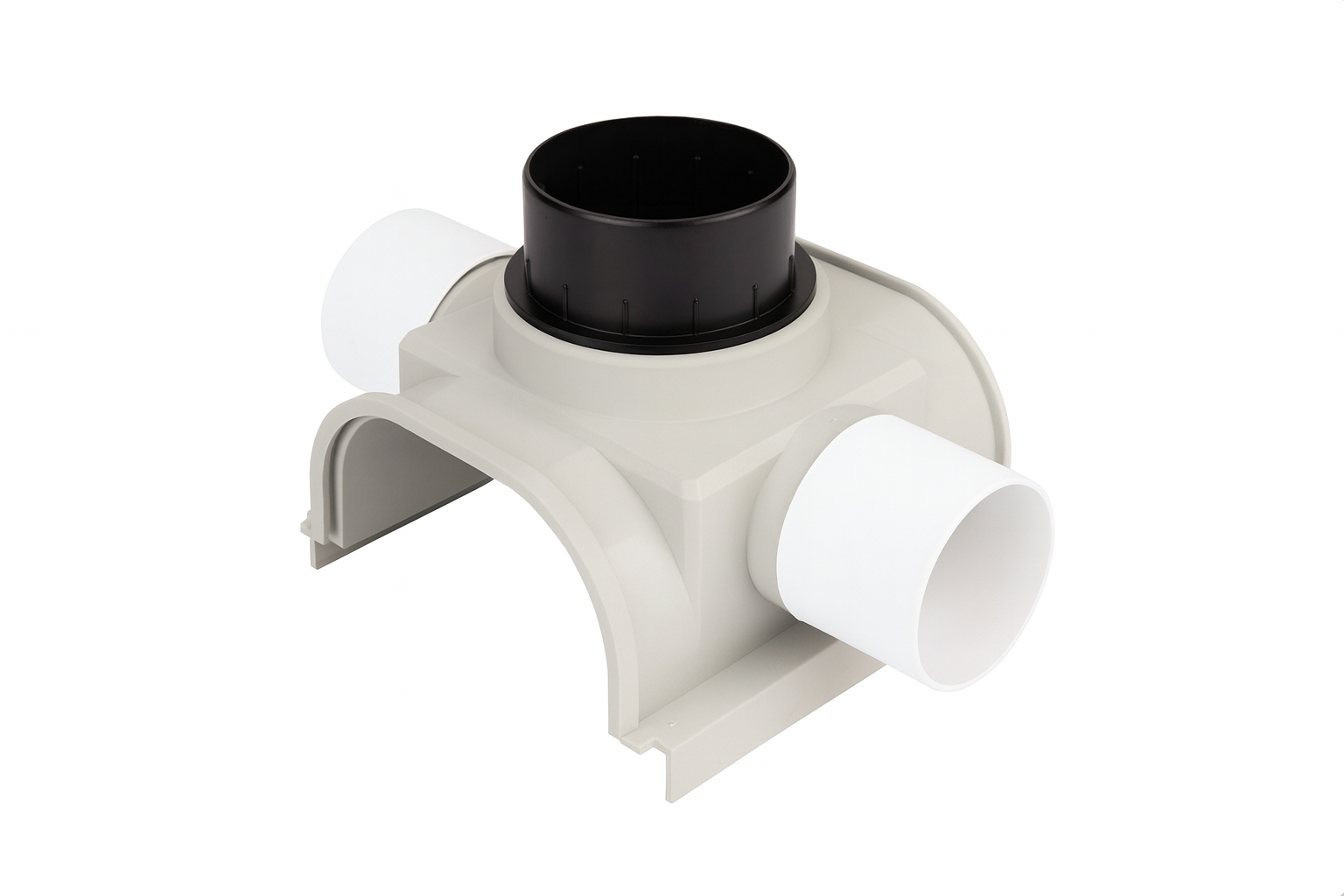

NDS 832 - 8" Pro Series Shallow Profile Side Outlet
The NDS 832 8IN Pro Series Shallow Profile Side Outlet is a high-performance drainage solution designed for professional landscaping and construction projects. This innovative product offers superior water management in a compact, low-profile design.
Key Features:
- Low-profile design for discreet installation
- Durable, high-impact polypropylene construction
- UV-resistant for long-lasting performance
- Side outlet for efficient water diversion
- Compatible with NDS catch basins and channel drains
Product Specifications:
- Dimensions: 8" diameter
- Height: 3.5"
- Material: Polypropylene
- Color: Gray
- Load rating: Light traffic (pedestrian)
- Flow rate: Up to 21 GPM
- Outlet size: 3" or 4" pipe compatibility
Installation Instructions:
- Excavation:
- Dig a hole approximately 12" wider than the outlet diameter and 6" deeper than the intended depth.
- Base preparation:
- Add 4" of compacted gravel to the bottom of the excavation for stability.
- Positioning:
- Place the outlet on the prepared base, ensuring it's level and at the desired height.
- Pipe connection:
- Connect the appropriate size pipe (3" or 4") to the side outlet using PVC cement.
- Backfilling:
- Carefully backfill around the outlet with gravel, compacting in 4" layers.
- Leave the top 2" for final landscaping material.
- Final touches:
- Install the grate (sold separately) and adjust the surrounding area for proper drainage slope.
The NDS 832 8IN Pro Series Shallow Profile Side Outlet is the perfect solution for efficient water management in areas with limited vertical space. Its durable construction and versatile design make it ideal for a wide range of applications, from residential landscapes to commercial properties.
Product and Technical Information

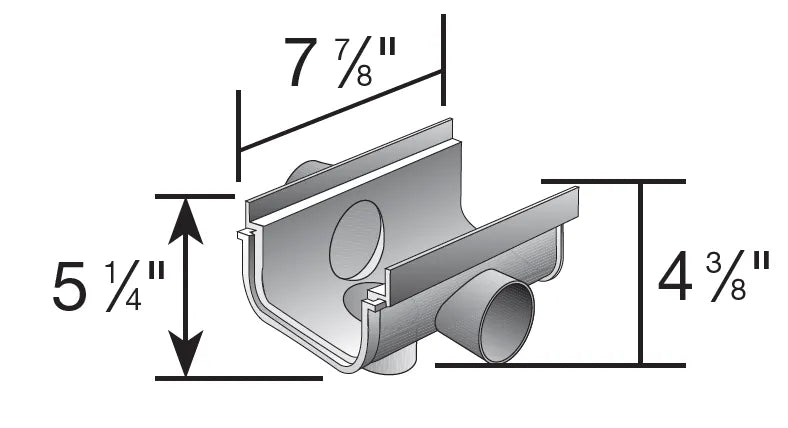

Technical Specifications - NDS 8" Pro Series Shallow Profile Side Outlet
