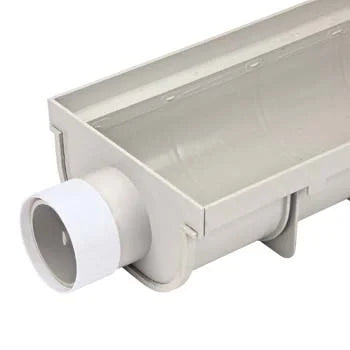

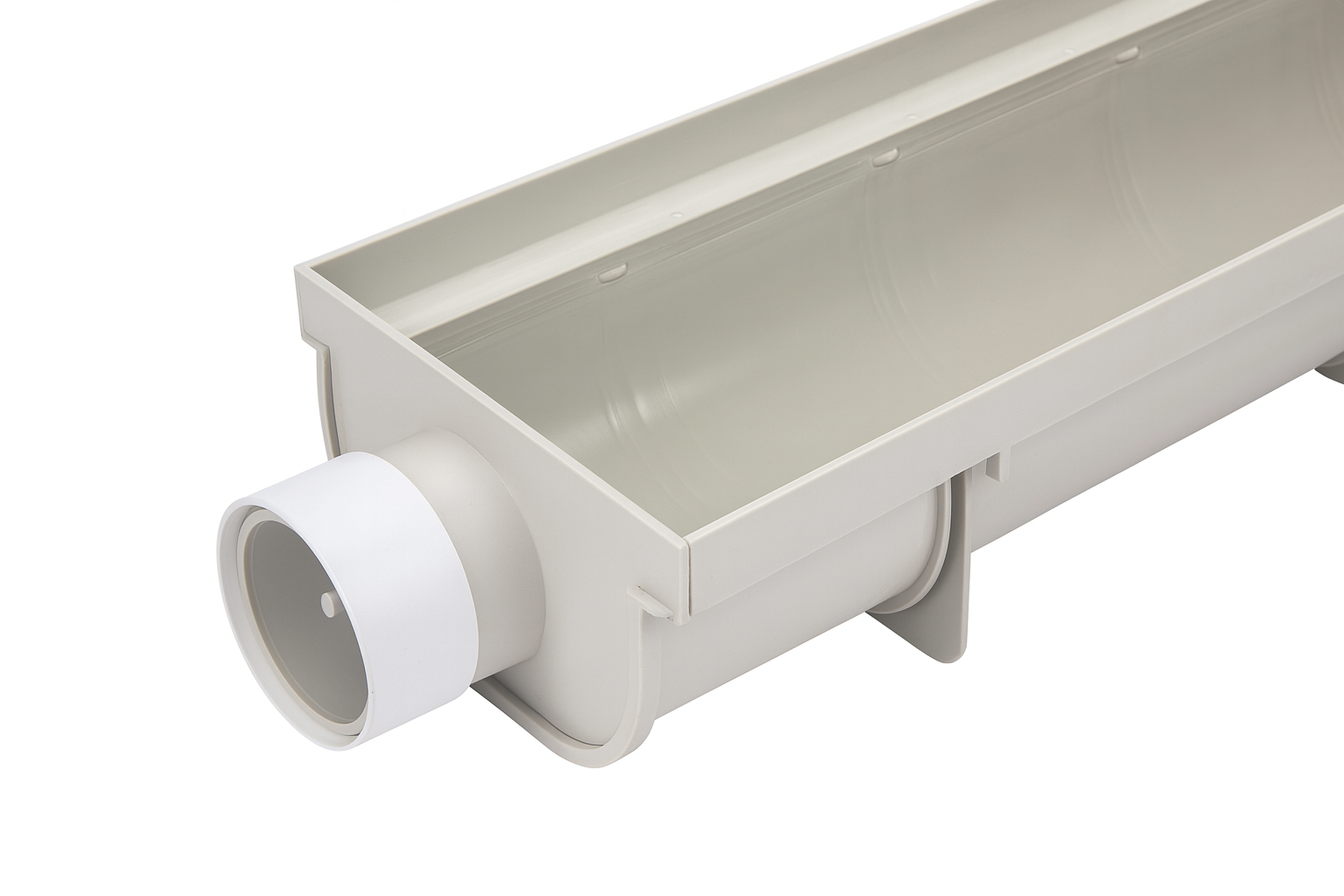

NDS 831 - 8" Pro Series Channel Drain Shallow Profile End Cap / 3" S&D SPT Knockout End Outlet
The NDS 831 8IN Pro Series Channel Drain Shallow Profile End Cap is a high-quality drainage solution designed for efficient water management in residential and commercial applications. This end cap features a 3-inch Sewer & Drain (S&D) knockout end outlet, providing versatile installation options for your drainage system.
Key Features:
- Compatible with 8-inch Pro Series Channel Drains
- Shallow profile design for low-clearance installations
- 3-inch S&D knockout end outlet
- Durable construction for long-lasting performance
- Easy integration with existing NDS drainage systems
Installation Instructions:
- Ensure the channel drain is properly installed and level.
- Clean the end of the channel drain where the end cap will be attached.
- Apply a bead of silicone sealant around the perimeter of the channel end.
- Align the end cap with the channel drain and press firmly to secure.
- If using the knockout outlet: a. Locate the 3-inch knockout area on the end cap. b. Use a hammer and screwdriver to carefully remove the knockout. c. Attach the appropriate 3-inch S&D pipe to the outlet using PVC cement.
- Allow sealant to cure according to manufacturer's instructions before use.
Product Specifications:
- Material: High-impact polypropylene
- Color: Gray
- Dimensions: 8 inches wide (to match channel drain)
- Outlet size: 3-inch S&D compatible
- Profile height: Shallow (exact measurement not provided, please check with manufacturer)
- Compatible with: NDS Pro Series 8-inch Channel Drains
- Application: Residential and commercial drainage systems
This end cap provides a professional finish to your channel drain system while offering the flexibility of an optional end outlet for enhanced drainage capabilities.
Product and Technical Information

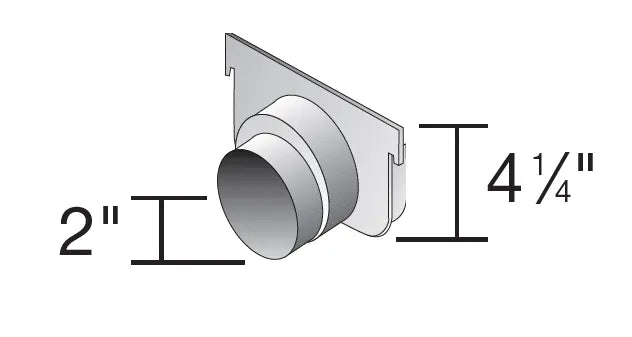

Technical Specifications - NDS 8" Pro Series Channel Drain Shallow Profile End Cap / 3" S&D SPT Knockout End Outlet
