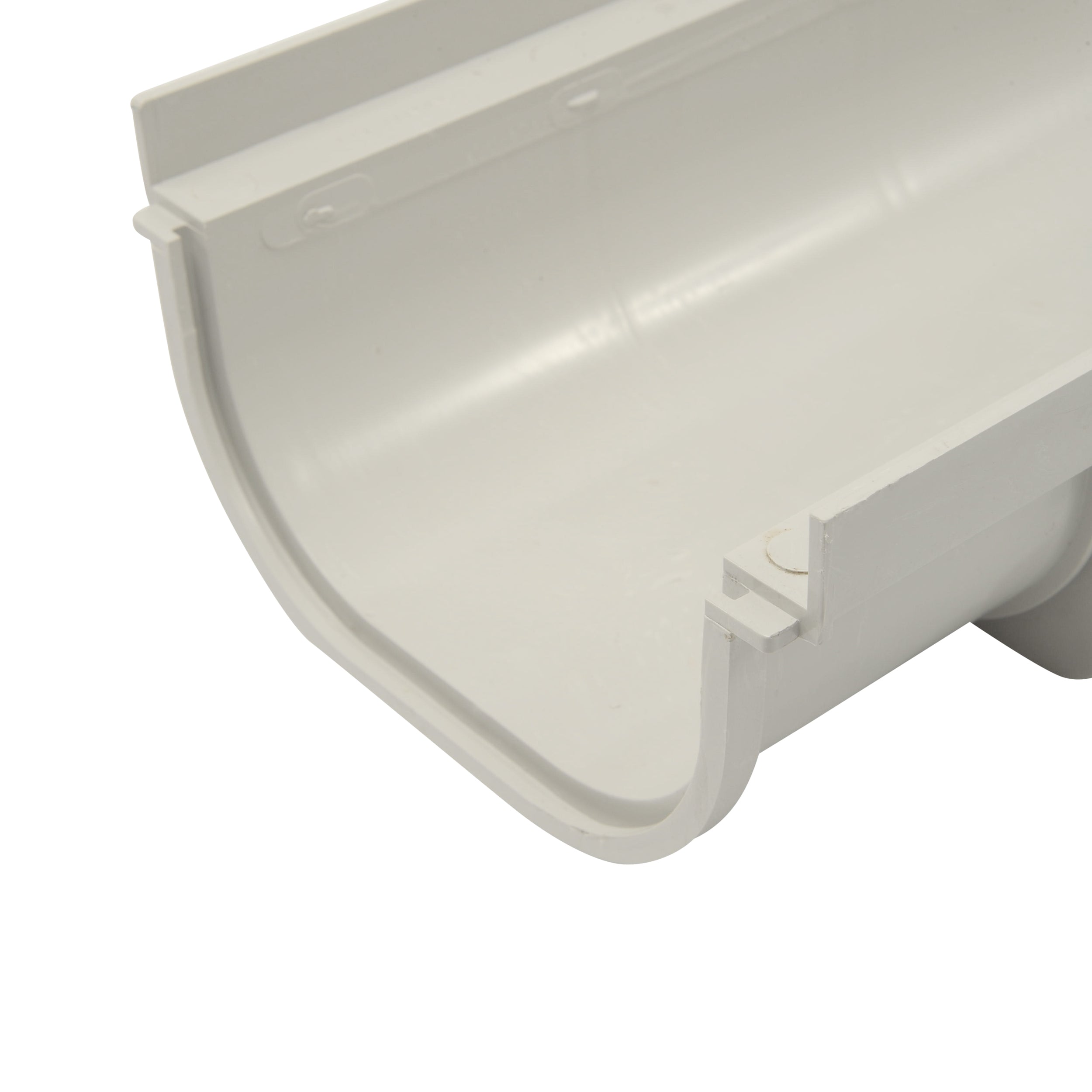

NDS 830 - 8" Pro Series Shallow Profile Channel Drain
The NDS 830 8IN Pro Series Shallow Profile Channel Drain is a high-performance drainage solution designed for efficient water management in residential and commercial applications. Its low-profile design allows for seamless integration into various landscapes while providing superior drainage capabilities.
Key Features:
- 8-inch wide channel
- Shallow profile for easy installation
- Durable, high-density polyethylene construction
- Interlocking system for extended drainage runs
- Compatible with various grate options
Installation Instructions:
- Excavate a trench slightly wider than the channel and deep enough to accommodate the drain and bedding material.
- Create a 2-inch deep concrete base in the trench.
- Place the channel sections, starting from the outlet and working upwards.
- Connect sections using the interlocking system.
- Ensure proper slope (1/8 inch per foot minimum) for adequate water flow.
- Secure channels with concrete backfill along the sides.
- Install grates and test water flow.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Channel width: 8 inches
- Chemical resistance: Excellent
- UV resistance: Yes
- Frost resistance: Yes
Product and Technical Information

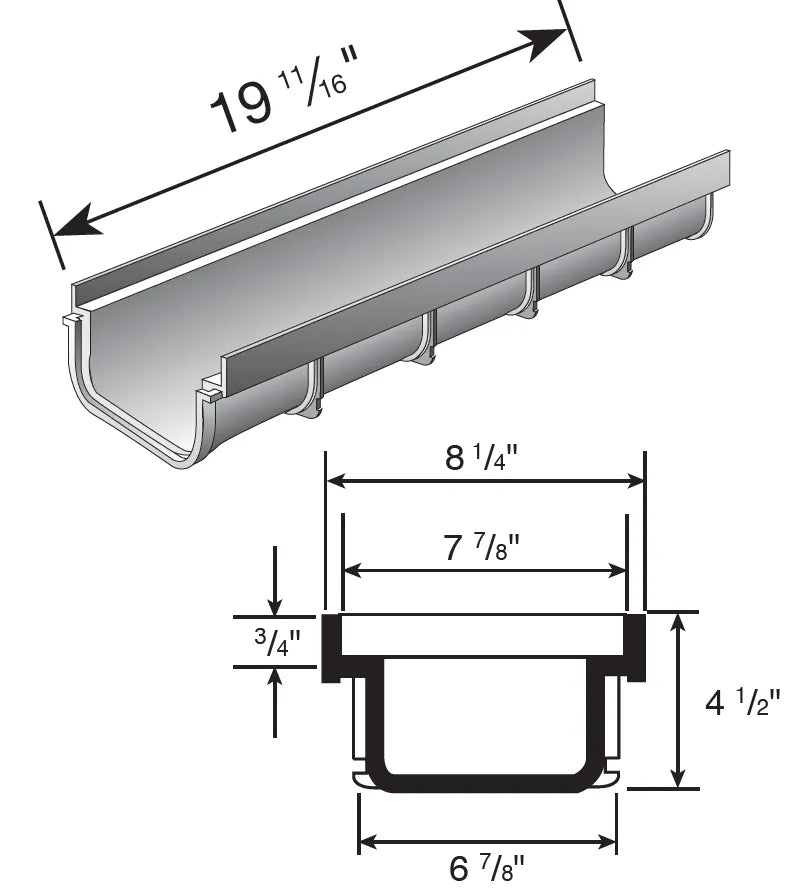

Technical Specifications - NDS 8" Pro Series Shallow Profile Channel Drain
