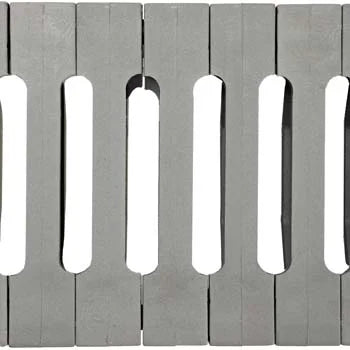

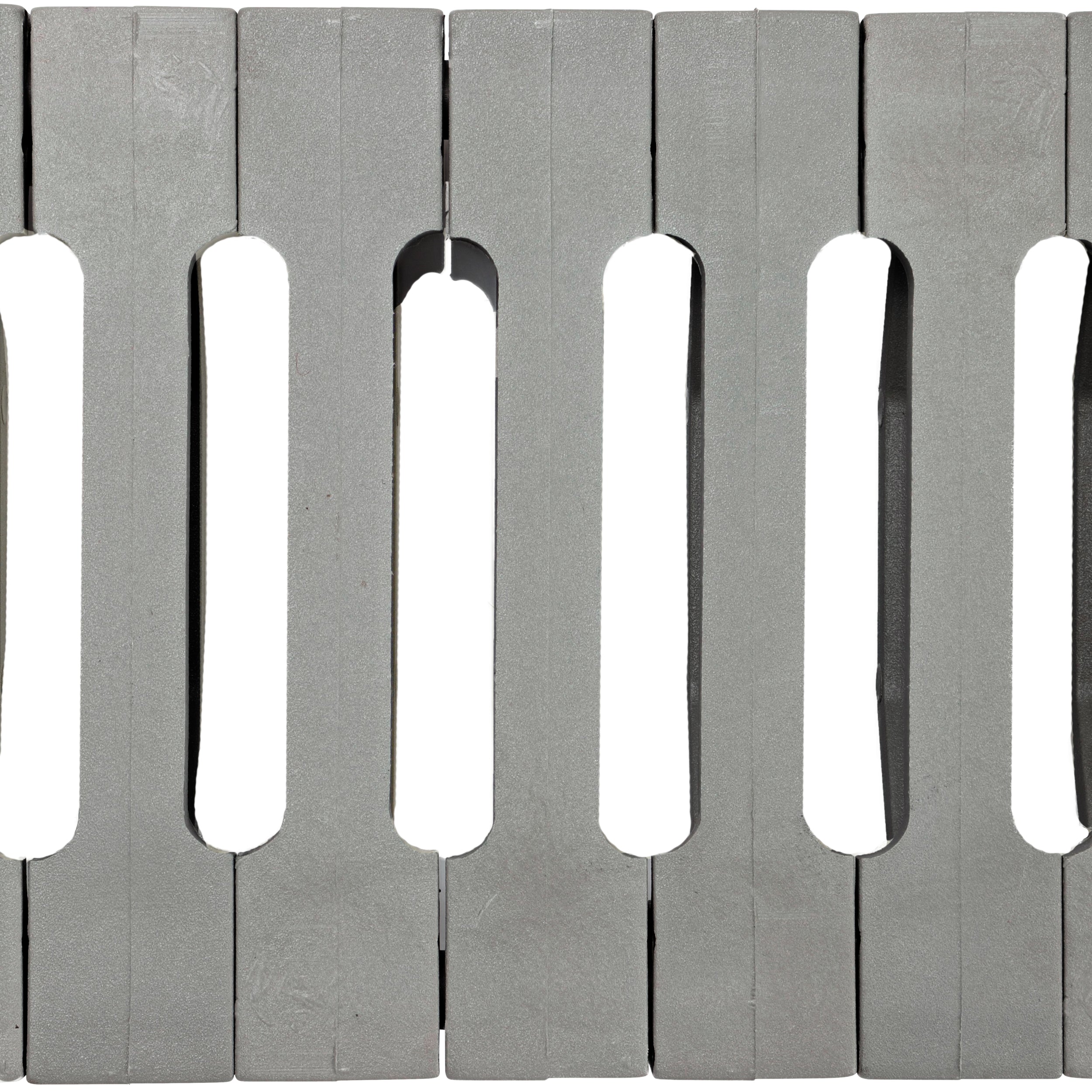

NDS 828 - 5" Pro Series Channel Grate, Heavy Traffic Gray
Color: Black (#816), Brick Red (#818), Gray (#814), Green (#815), Sand (#817) and White (#819)
The NDS 828 Pro Series Channel Drain Grate is a durable and efficient drainage solution for residential and commercial applications. Measuring 5" inches wide by 20" inches long, this grate is designed to fit standard 5"-inch channel drains, providing excellent water flow and debris filtration.
Key Features:
- Heavy-duty construction
- Corrosion-resistant material
- Suitable for heavy duty pneumatic tire forklifts and tractor trailers
- Easy installation and removal for maintenance
Installation Instructions:
- Ensure the channel drain is properly installed and level.
- Clean the drain channel of any debris.
- Place the grate into the channel, ensuring it sits flush with the surrounding surface.
- If applicable, secure the grate using the manufacturer-provided locking mechanism.
Product Specifications:

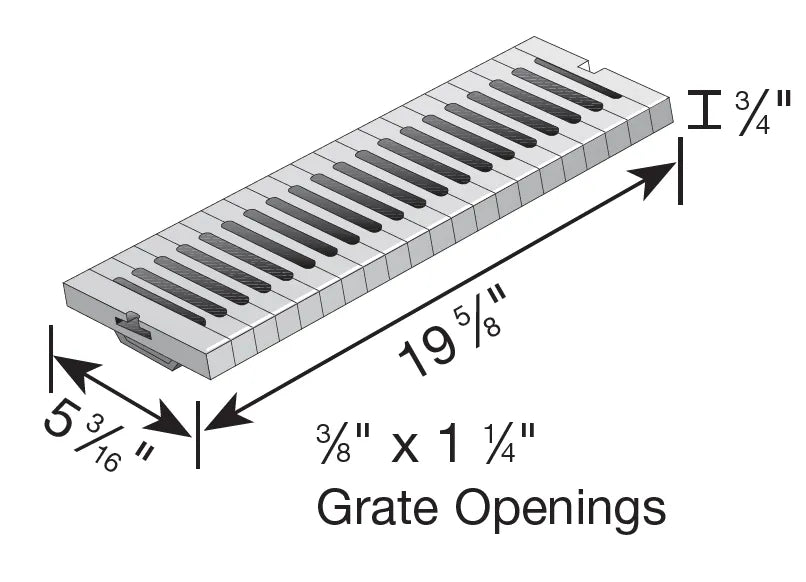

- Dimensions: 5 3/16" width x 19 5/8" inches long
- Material: High Impact Glass-Reinforced Nylon (GF/Nylon)
- Load Class C (325 PSI) (Heavy duty)
- Color: Gray Nylon
- Weight: Approximately 1 lb
- UV-resistant for outdoor use
- Chemical-resistant
Product and Technical Information
FAQ - Will NDS Iron Metal Grates Rust?

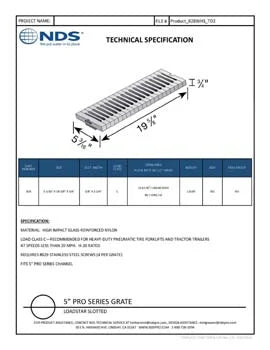

Technical Specifications - NDS 5" Pro Series Channel Grate
