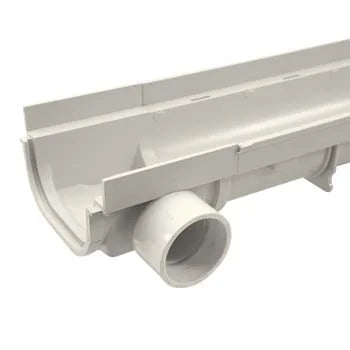

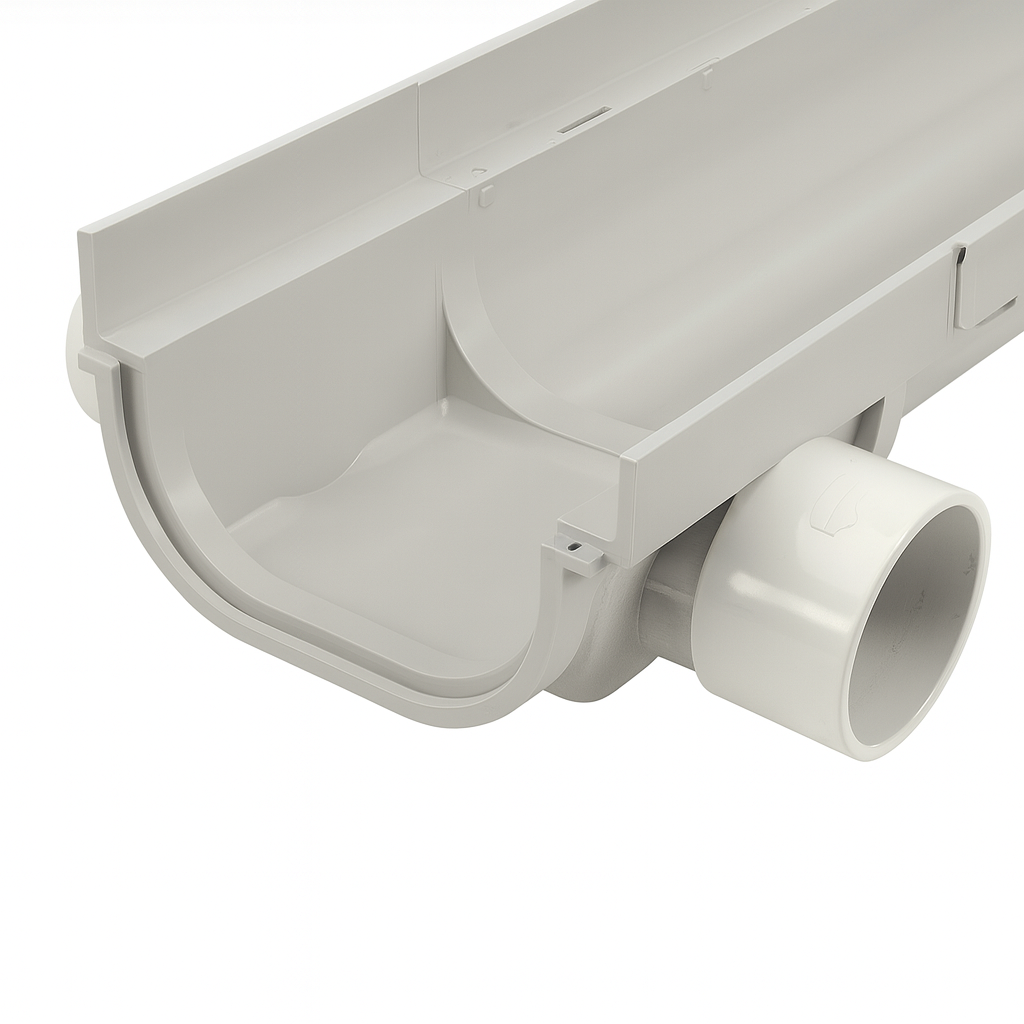

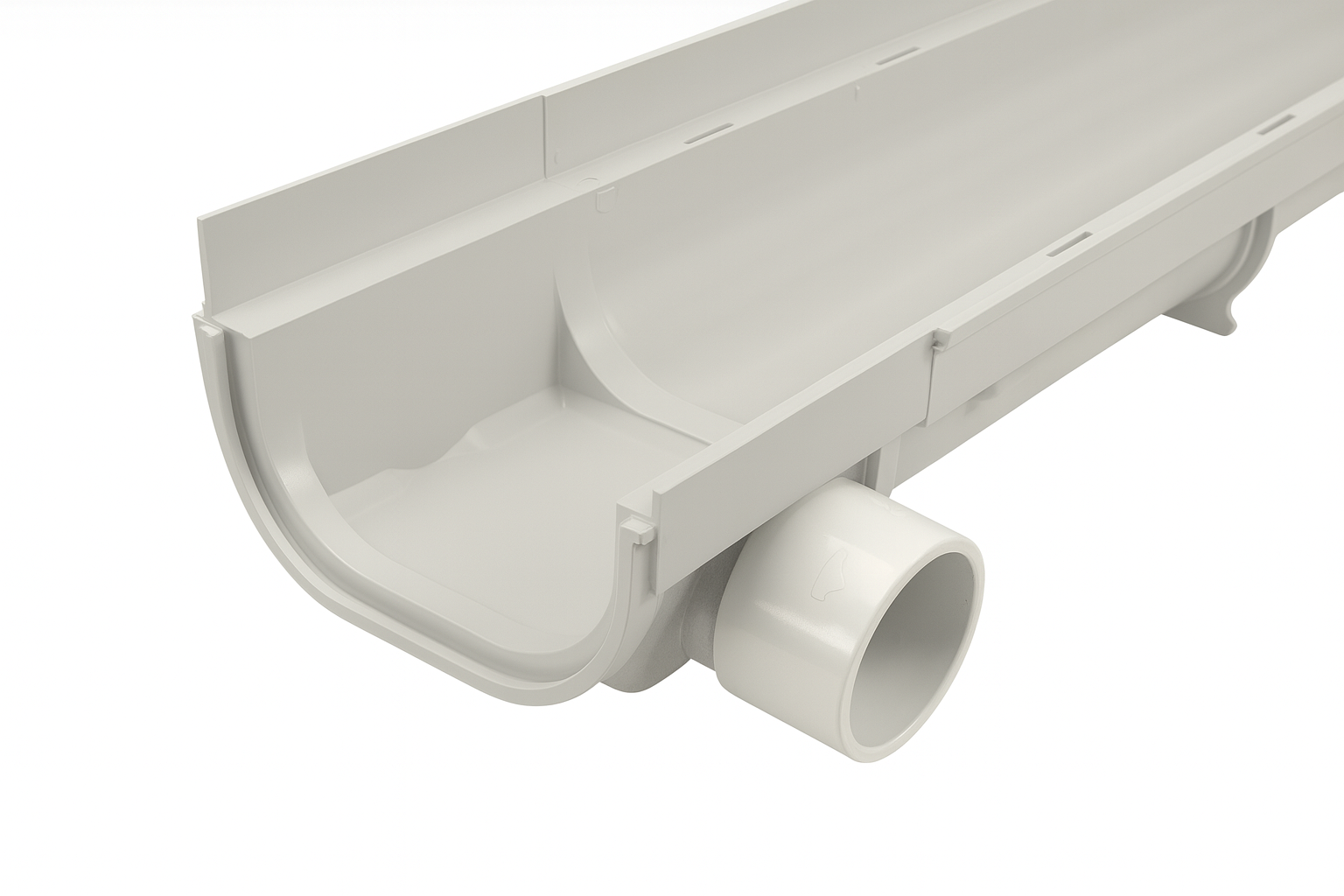

NDS 822 - 5" Shallow Profile Channel Drain Side Outlet

NDS 822 - 5" Shallow Profile Channel Drain Side Outlet

The NDS 822 5IN Pro Series Shallow Profile Channel Drain Side Outlet is a high-performance drainage solution designed for efficient water management in residential and commercial applications. This shallow profile channel drain features a side outlet for easy connection to existing drainage systems, making it ideal for driveways, patios, pool decks, and other areas requiring effective surface water removal.

Key Features:

• 5-inch wide channel
• Shallow profile for minimal excavation
• Side outlet for versatile installation options
• Durable, UV-resistant plastic construction
• Compatible with various grate options

Installation Instructions:

1. Excavate a trench according to local building codes and project requirements.
2. Create a level base using compacted gravel or concrete.
3. Begin assembly at the outlet point, ensuring proper slope for water flow.
4. Connect channel sections using the built-in male/female connections.
5. Secure channels in place with concrete backfill.
6. Install desired grate and connect the side outlet to the drainage system.
7. Finish surrounding area with your chosen surface material.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Channel width: 5 inches (127 mm)
• Channel length: 39.4 inches (1 m)
• Compatible grate materials: Plastic, galvanized steel, stainless steel, cast iron

Product and Technical Information

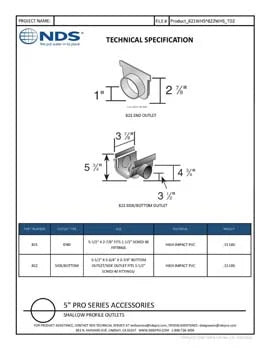

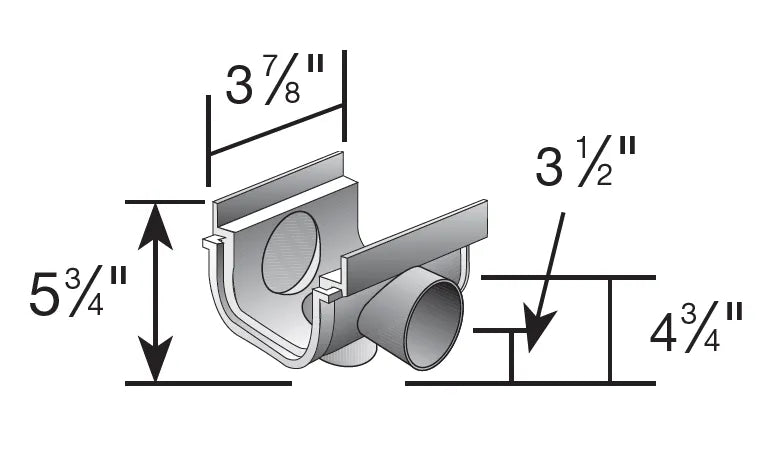

Technical Specifications - NDS 5" Shallow Profile Channel Drain Side Outlet
