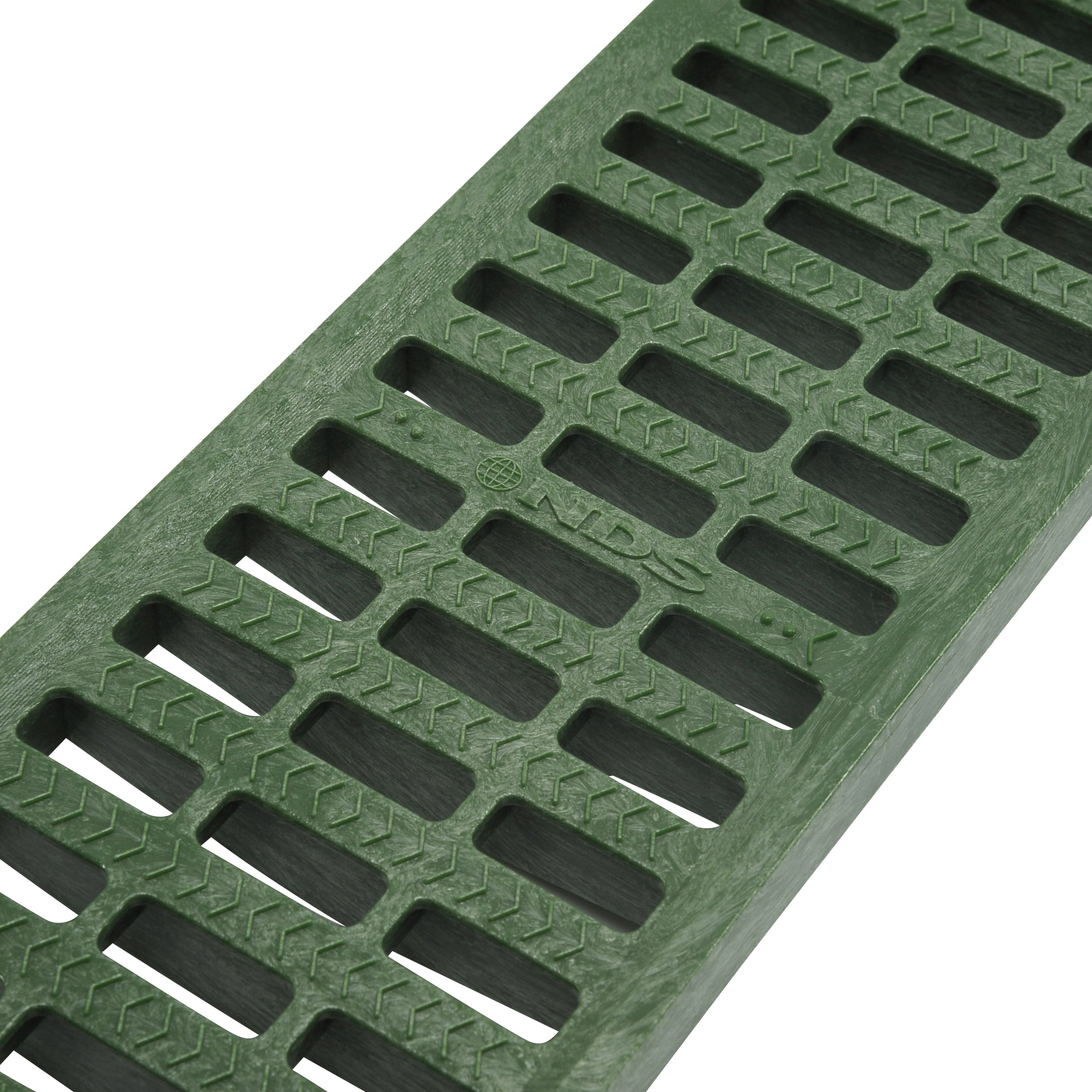

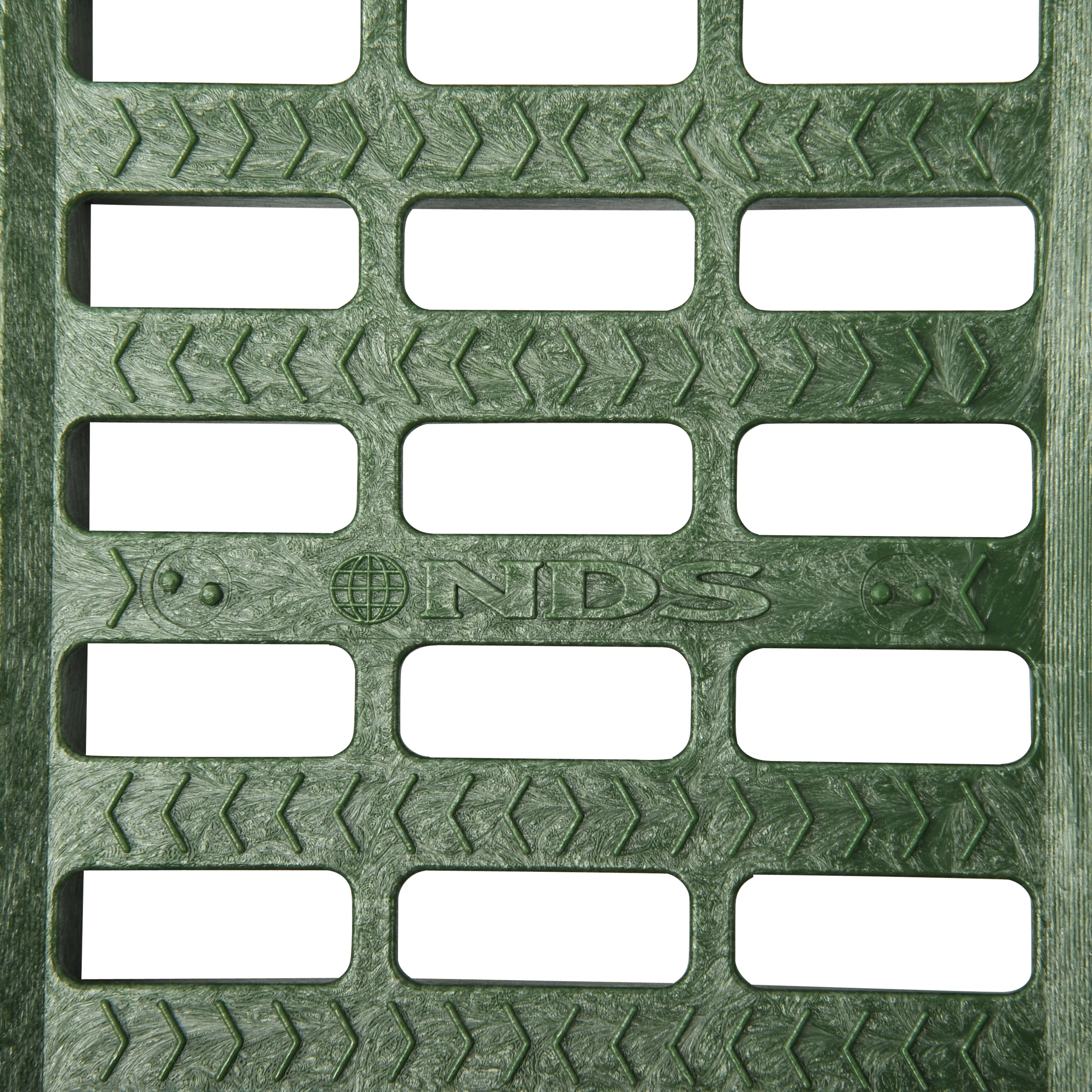

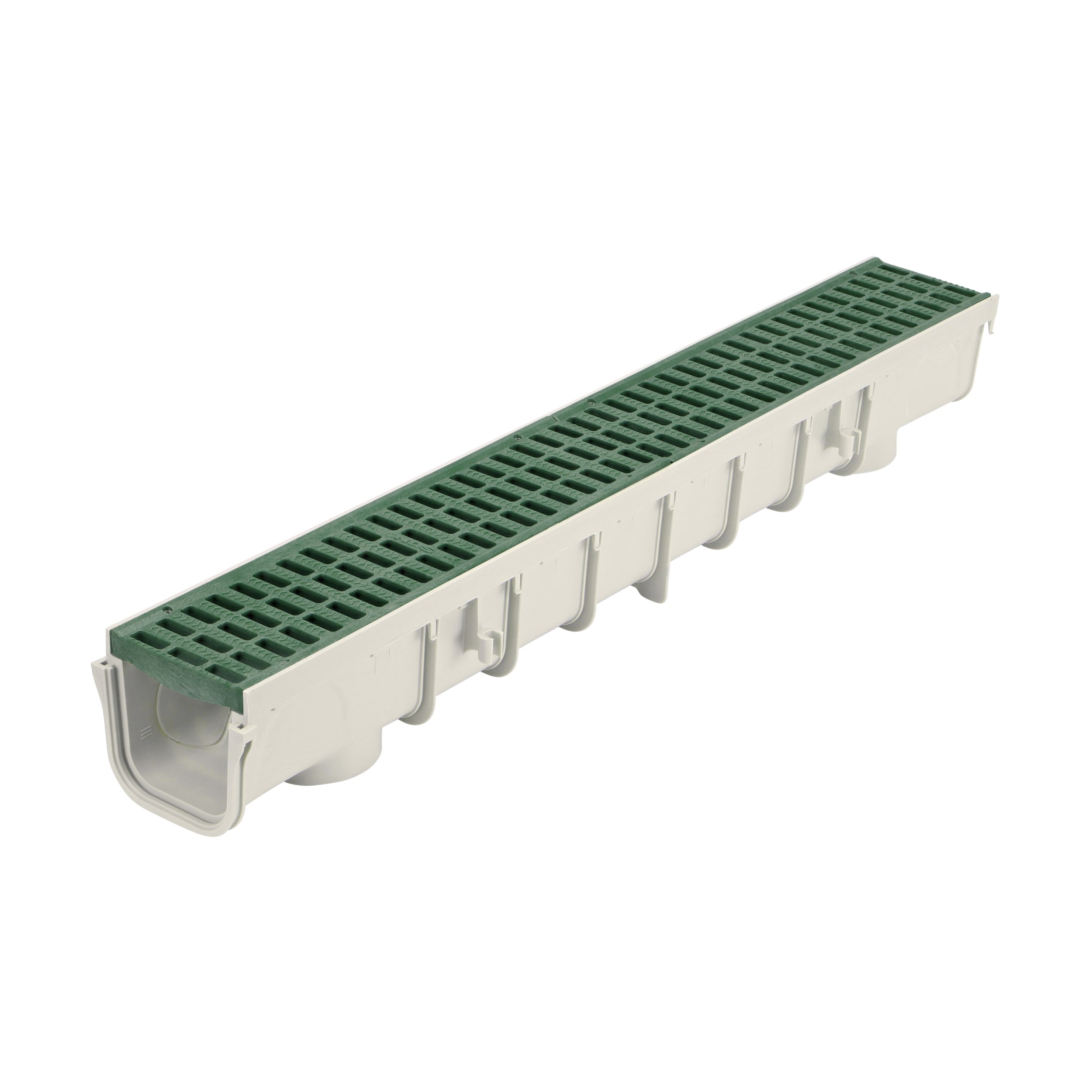

NDS 815 - 5" Pro Series Channel Drain Grate - Green
Colors: Black (#816), Brick Red (#818), Gray (#814), Sand (#817) and White (#819)
The NDS 815 Pro Series Channel Grate is a high-performance drainage solution designed for residential and light commercial applications. This 5"-inch wide by 20"-inch long grate provides efficient water management and superior load-bearing capacity. Constructed from durable materials, it offers long-lasting performance and resistance to corrosion, making it ideal for driveways, patios, pool decks, and other areas requiring effective surface drainage.
Key Features:
- Durable construction for long-lasting performance
- Corrosion-resistant materials
- High load-bearing capacity
- Easy installation and maintenance
- Compatible with NDS Pro Series Channel Drain Systems
Installation Instructions:
- Excavate a trench for the channel drain, ensuring proper slope for water flow.
- Install the channel drain according to manufacturer's instructions.
- Place the 815 grate onto the channel, ensuring it sits flush and securely.
- For multiple grates, connect them using the interlocking system.
- Secure the grate to the channel using the provided locking mechanisms.
- Finish the surrounding area with your chosen surface material.
Product Specifications:
- Dimensions: 5 1/4" inches wide x 19 5/8" inches long
- Material: Polyethylene treated with UV inhibitors
- Color: Green
- Load Class: Class B (Light vehicle traffic)(61-175 PSI)
- Compatible with: NDS Pro Series Channel Drain Systems
- Slotted design for efficient water intake
- UV-resistant for outdoor use
- Interlocking system for multiple grate installation
- Removable for easy cleaning and maintenance
Product and Technical Information
Technical Specifications - NDS 5 Inch Pro Series Grate
