NDS 813 - 5" Pro Series Channel Drain End Cap/End Outlet
The NDS 813 5IN Pro Series Deep Profile Channel Drain End Cap End Outlet is a high-quality drainage component designed for efficient water management in residential, commercial, and industrial applications. This end cap with outlet provides a secure closure for your channel drain system while allowing water to exit through a built-in outlet port.
Key Features:
- Compatible with 5-inch Pro Series Deep Profile Channel Drains
- Durable construction for long-lasting performance
- Built-in end outlet for efficient water discharge
- Easy to install and maintain
- Designed to prevent debris accumulation
Installation Instructions:
- Ensure the channel drain is properly installed and level.
- Clean the end of the channel drain where the end cap will be attached.
- Apply a bead of silicone sealant around the edge of the channel drain end.
- Align the end cap with the channel drain, ensuring the outlet is positioned correctly.
- Press the end cap firmly onto the channel drain.
- Secure the end cap using stainless steel screws (not included) through the pre-drilled holes.
- Allow the sealant to cure according to manufacturer's instructions.
- Connect the outlet to your desired drainage pipe or system.
Product Specifications:
- Material: High-impact polypropylene
- Color: Gray
- Dimensions: 5 inches wide x 5.4 inches high (to match channel depth)
- Outlet diameter: 4 inches (standard size for easy connection)
- UV resistant for outdoor use
- Chemical resistant
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Compatible with NDS Pro Series 5-inch Deep Profile Channel Drains
Product and Technical Information

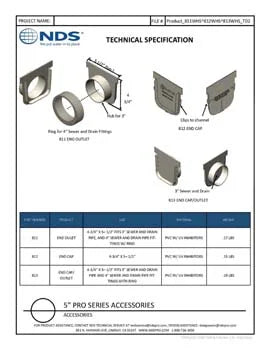

Technical Specifications - NDS 5" Pro Series Channel Drain End Cap/End Outlet
