NDS 764 -3" Inch Pro Series Channel Drain Kit with Plastic Grates, End Caps/Outlet (1 Meter)

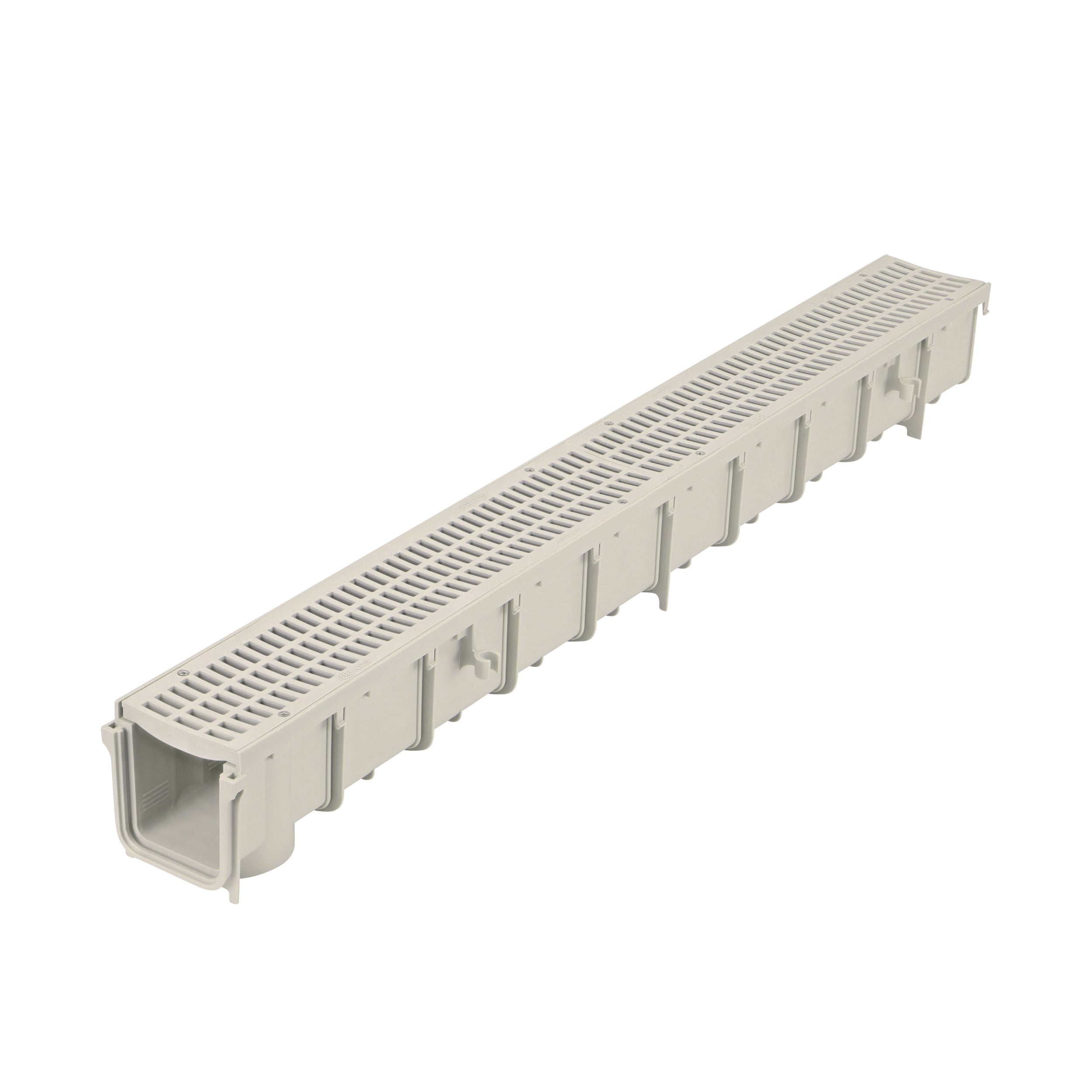

NDS 764 - 3" Pro Series Channel Drain Kit (1 Meter)

Includes:

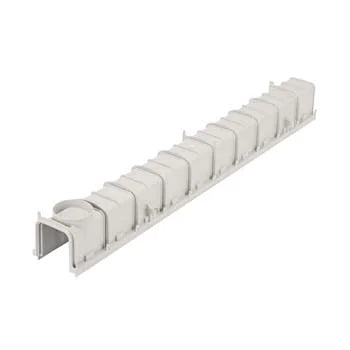

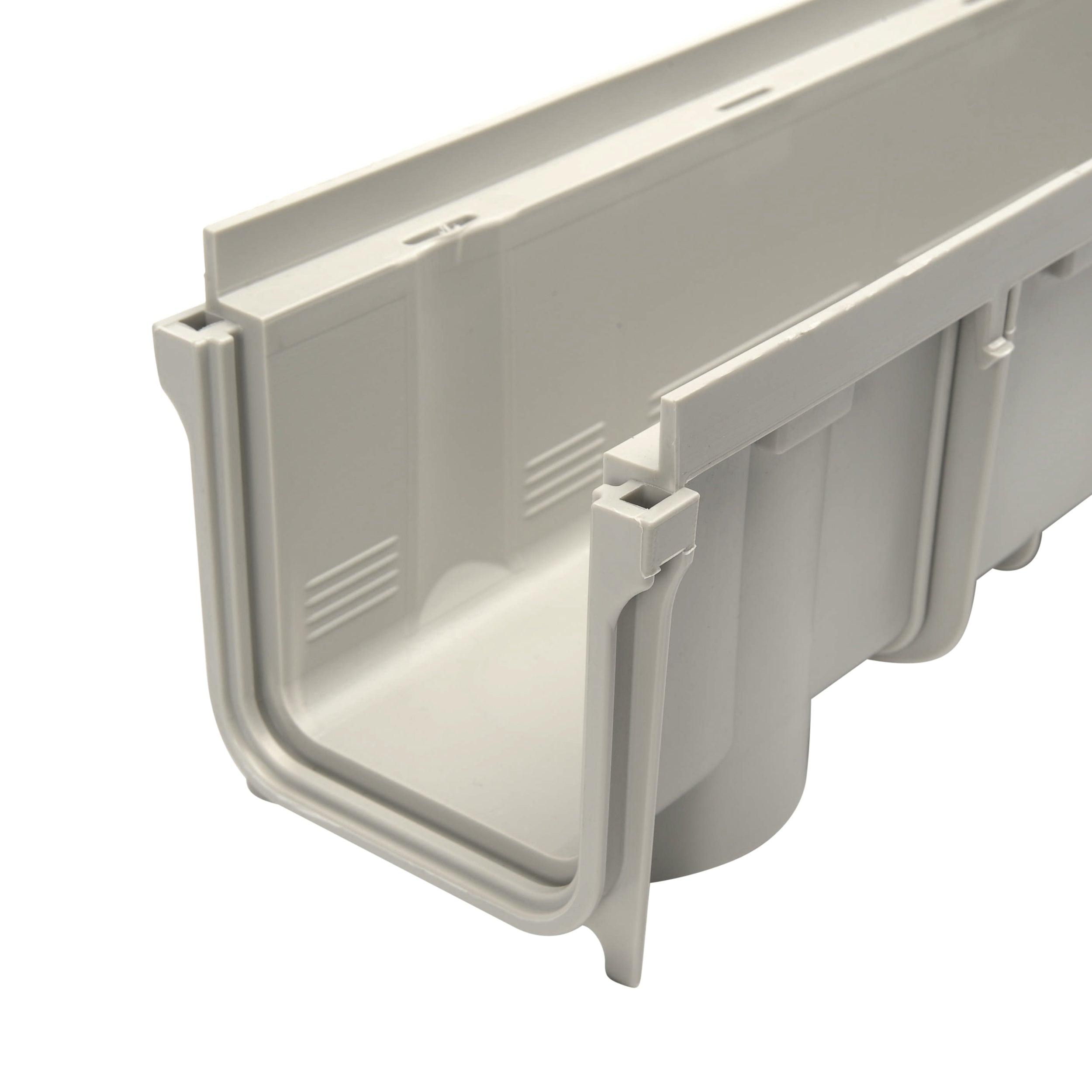

1 - Item 710 3" Pro Series Channel Drain

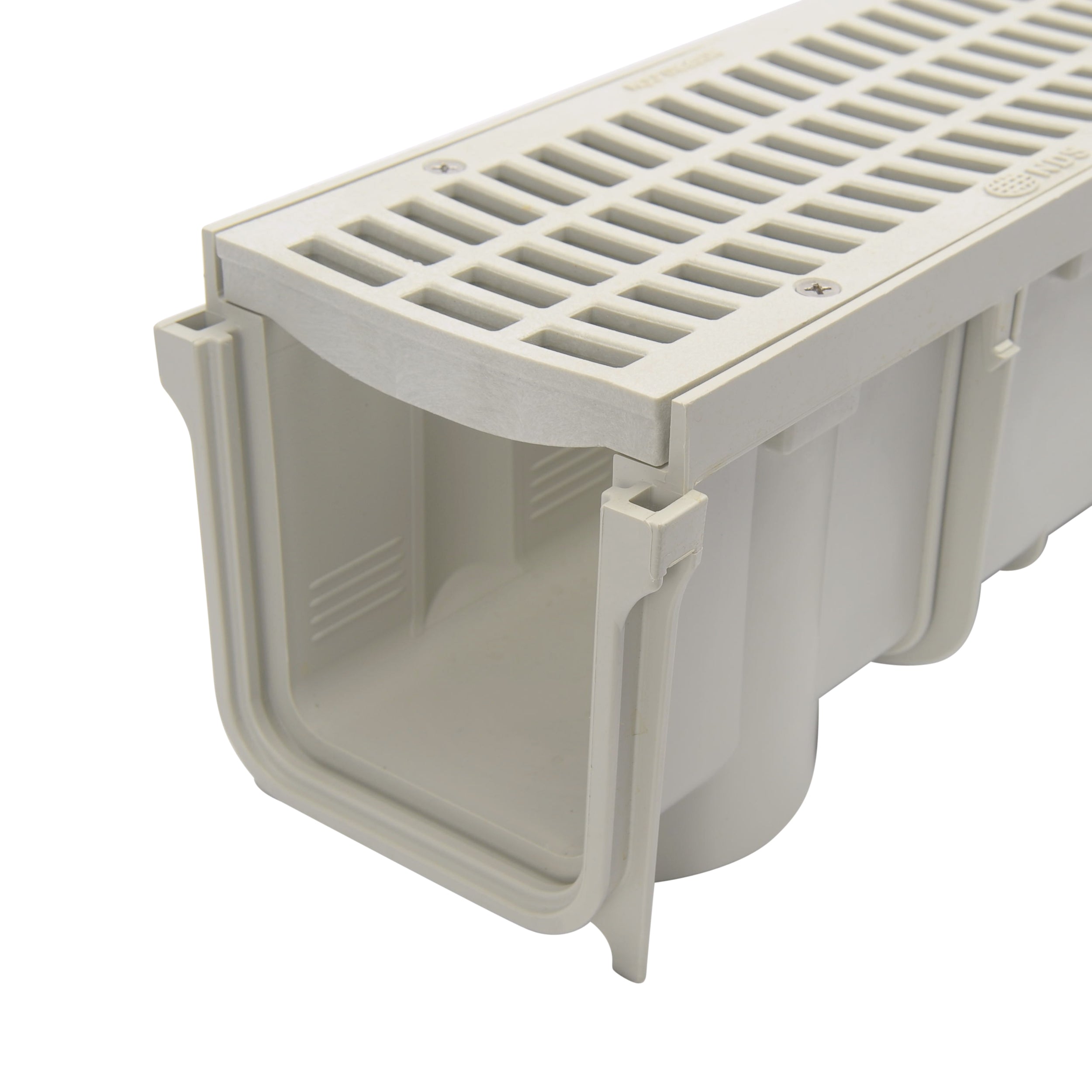

2 - Item 714 3" Pro Series Channel Grates

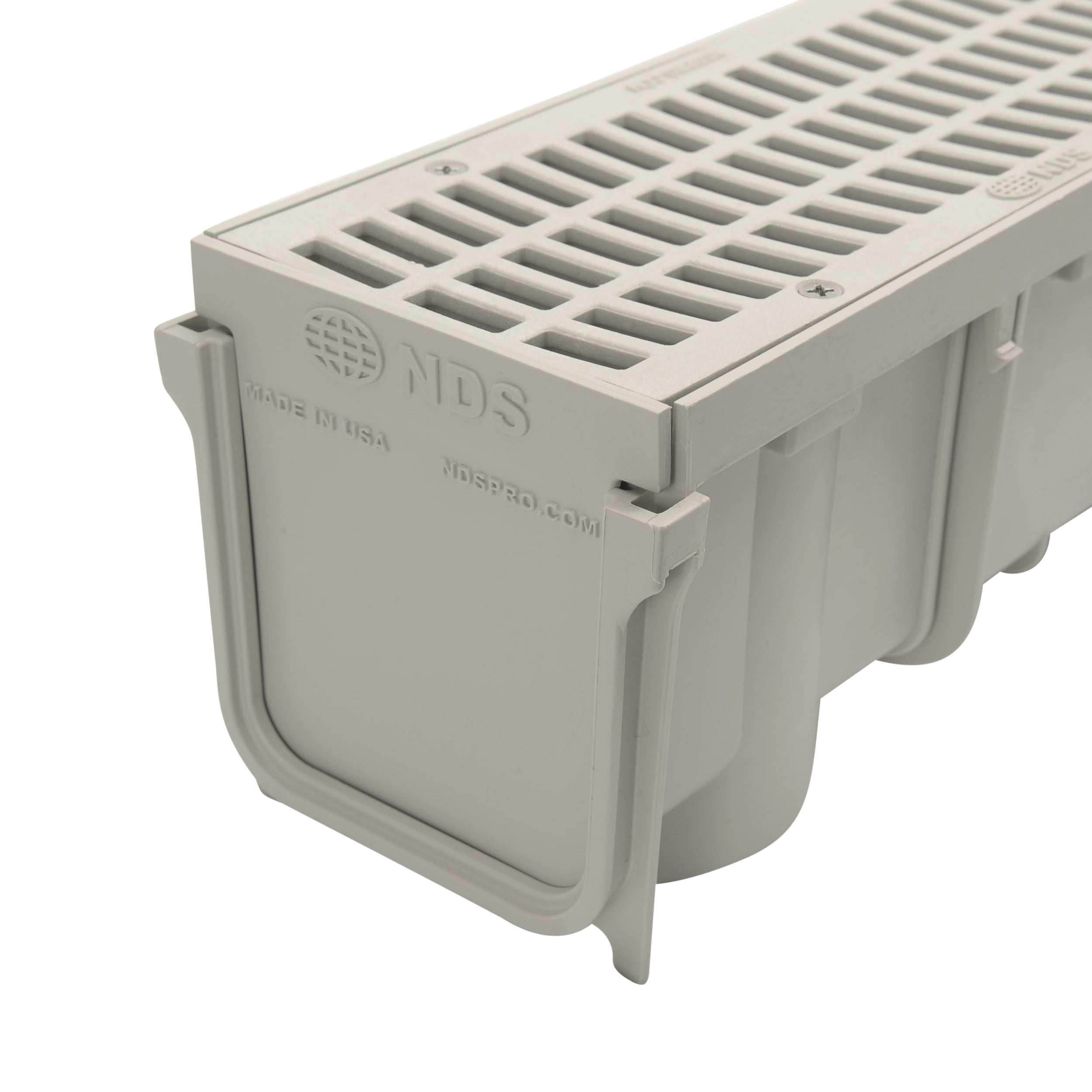

1 - Item 712 3" Pro Series End Cap

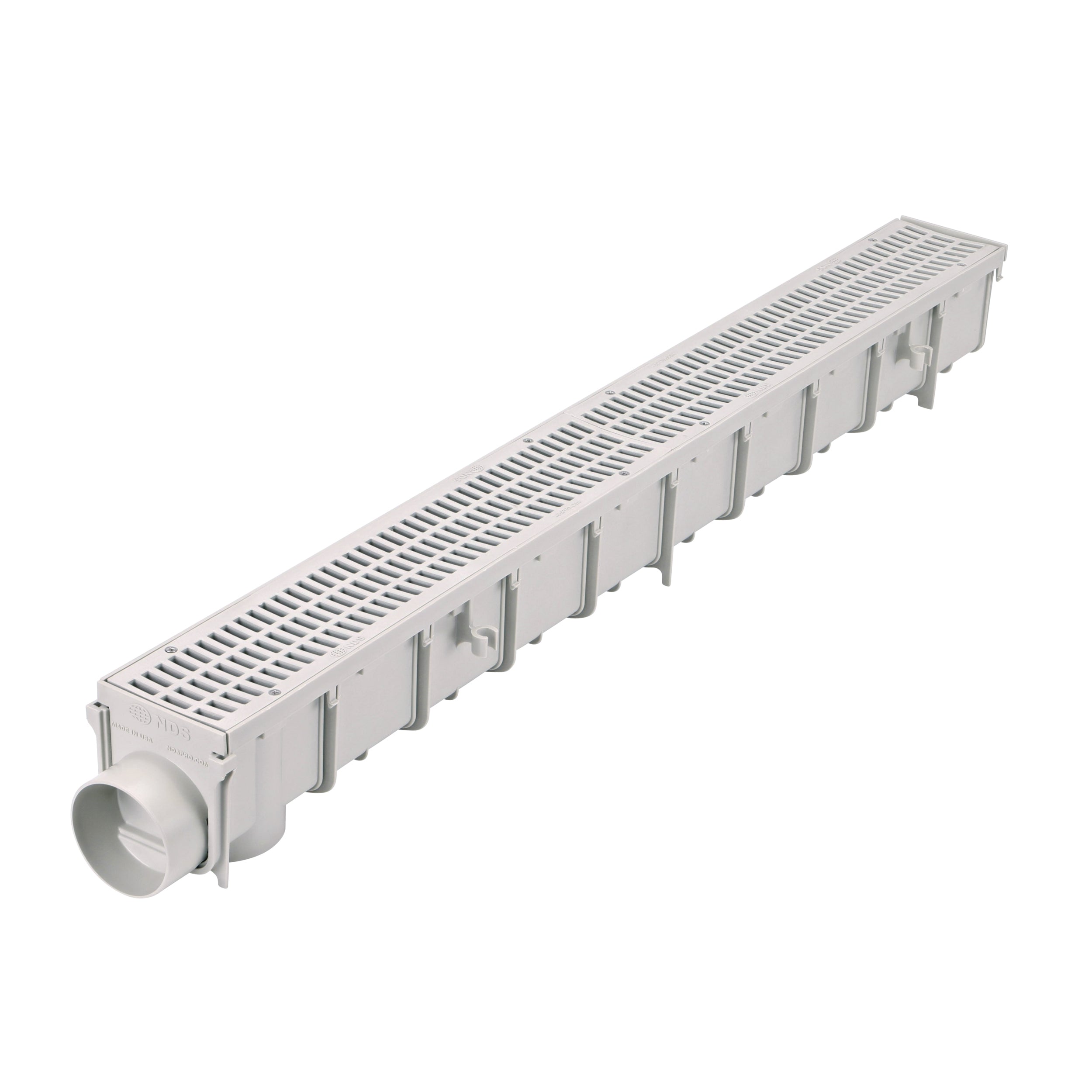

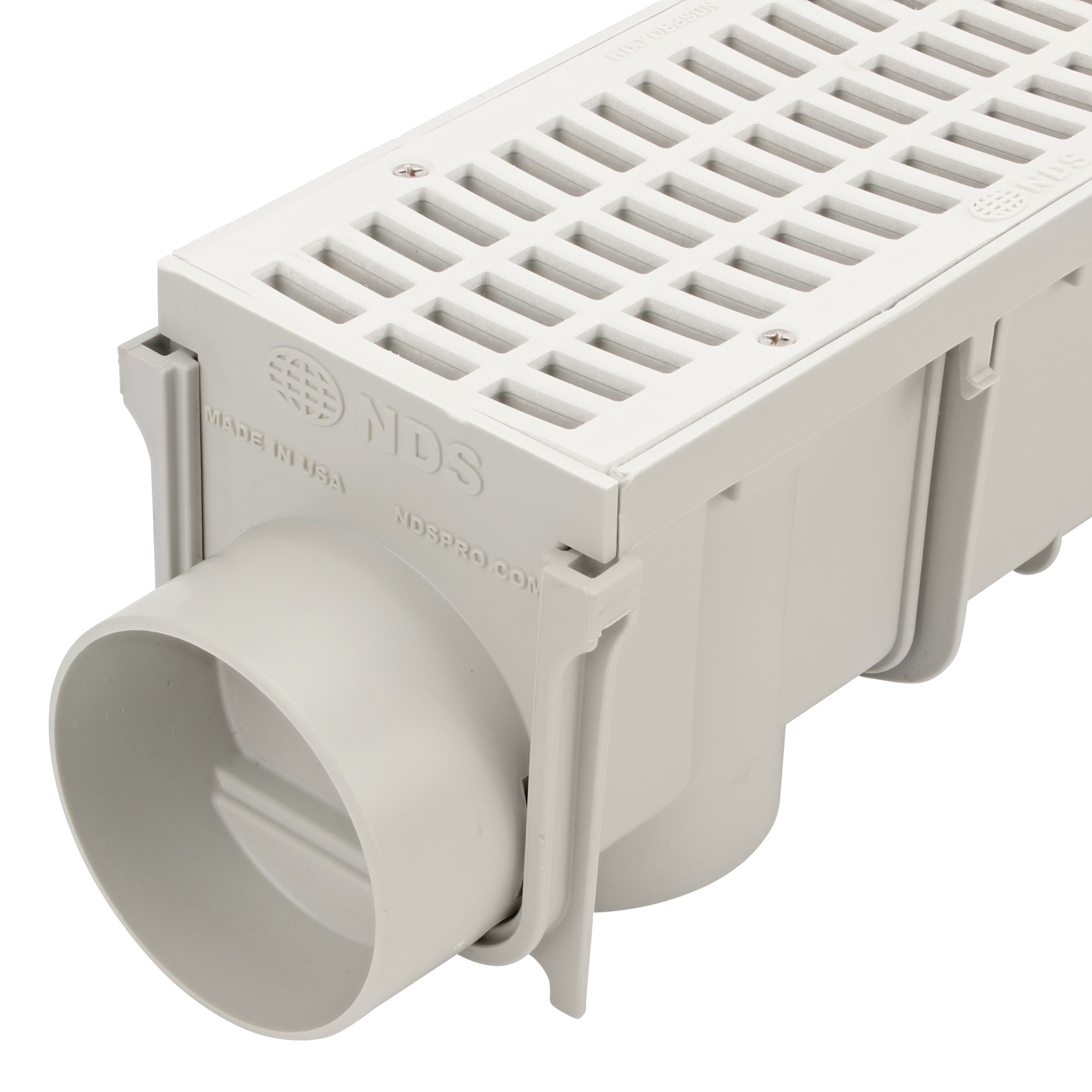

1 - Item 713 3" Pro Series End Outlet and stainless steel grate screws

The NDS 764 Pro Series Channel Drain Kit offers a reliable solution for surface water drainage. This versatile system is perfect for driveways, patios, pool decks, and other areas requiring effective water control.

Key Features:

• Durable plastic construction
• Pre-sloped channel for optimal water flow
• Interlocking system for easy installation
• Suitable for pedestrian and light vehicle traffic

Installation Instructions:

1. Excavate a trench 6" wider than the channel and at least 4" deeper.
2. Pour a 4" concrete base and allow it to set.
3. Place the channel sections, starting from the outlet point.
4. Connect sections using the interlocking system.
5. Adjust to ensure proper slope (minimum 1/8" per foot).
6. Secure channels with concrete on sides, leaving the top 1/8" below final surface.
7. Install end caps and outlet adapter as needed.
8. Allow concrete to cure before installing grates.
9. Finish surrounding surface to be flush with grate top.

Product Specifications:

• Material: Polypropylene PP (Channel Drain), High-density polyethylene HDPE (Drain Grates)
• Channel length: 39.4" (1 meter)
• Channel width: 3 5/16"
• Channel depth: 4 1/8"
• Grate material: HDPE
• Load class: Class B (61 to 175 PSI)
• Flow rate: 72 to 102 GPM

This Pro Series Channel Drain Kit provides an effective, easy-to-install drainage solution for various applications. Its durable construction and efficient design make it an excellent choice for both DIY enthusiasts and professional contractors

Product and Technical Information

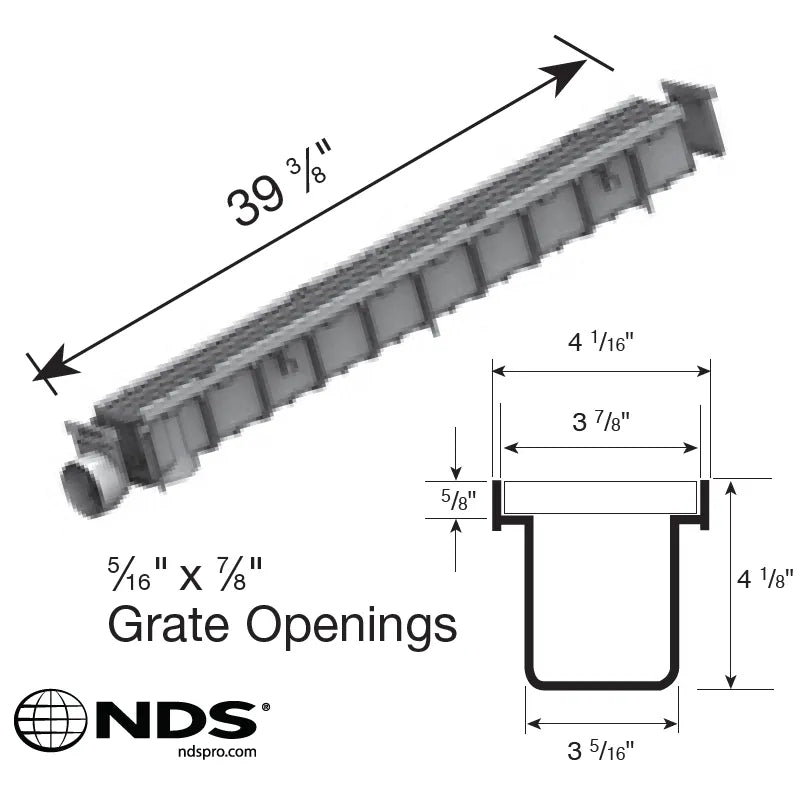

Dimensions: L 39-3/8" x W 4-1/16" x H 3-3/4"

Technical Specifications - NDS 3" Pro Series Channel Drain Kit (1 Meter)

Installation Guide for NDS Channel Drain
Installation Instructions - NDS Pro Series Drain

Installation Instructions - NDS 3" Pro Series Channel Drain Landscape Traffic 4" Concrete Abutment
Installation Instructions - NDS 3" Pro Series Channel Drain Load Class A & B 4" Encasement Brick Rebar Suspension
Installation Instructions - NDS 3" Pro Series Channel Drain Load Class A & B 4" Encasement Pavers Brick Rebar Suspension
