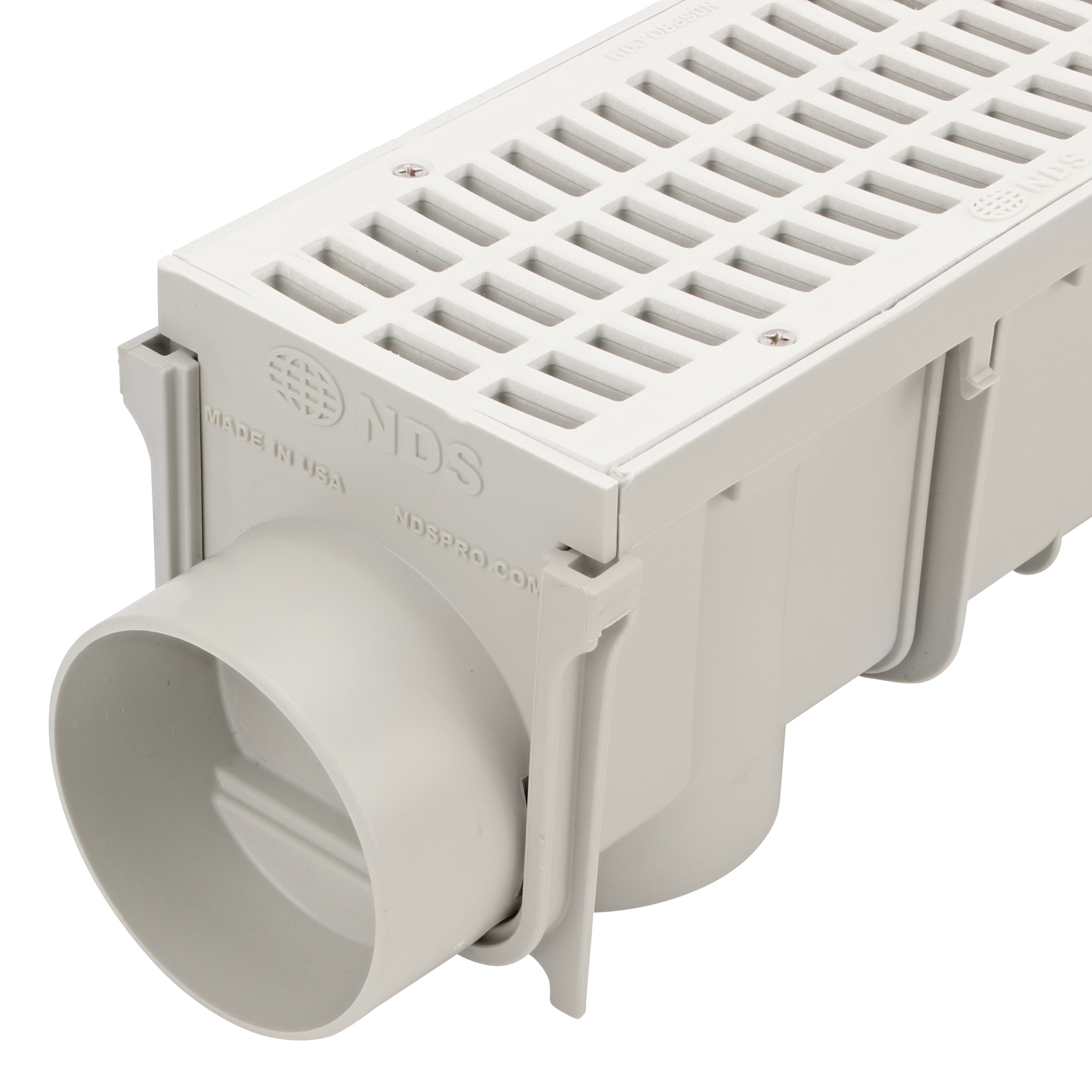

NDS 713 - 3" Inch Pro Series Channel Drain End Cap/End Outlet Light Gray

NDS 713 - 3" Pro Series End Cap/End Outlet

The NDS 713 3" inch Pro Series Channel End Cap End Outlet is a high-quality drainage solution designed for professional landscaping and construction projects. This end outlet efficiently directs water from your channel drain system into underground pipes or other drainage areas. Made from durable materials, it ensures long-lasting performance and seamless integration with your existing NDS Pro Series channel drain setup.

Key Features:

• Compatible with 3"-inch NDS Pro Series channel drains
• Provides a clean finish to channel drain runs
• Includes a built-in outlet for easy connection to drainage pipes
• UV-resistant for long-term outdoor use
• Designed for professional-grade installations

Installation Instructions:

1. Ensure the channel drain is properly installed and level.
2. Clean the end of the channel where the end cap will be attached.
3. Apply a bead of outdoor-rated adhesive sealant to the connection points.
4. Align the end cap with the channel end, ensuring the outlet is positioned correctly.
5. Press the end cap firmly into place.
6. Secure the end cap using stainless steel screws (not included) if desired for added stability.
7. Allow the adhesive to cure according to manufacturer's instructions.
8. Connect the outlet to your drainage pipe using an appropriate coupling or adapter.

Product Specifications:

• Material: polypropylene (PP) treated with UV inhibitors.
• Color: Light Gray

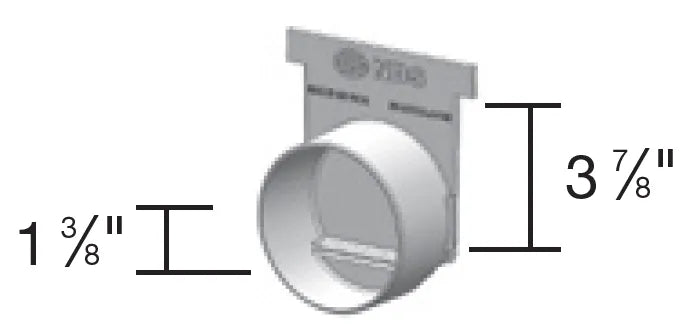

• Outlet diameter: 3 7/8" inches
• Temperature range: -40°F to 180°F (-40°C to 82°C)
• Chemical resistance: Resistant to most common chemicals and pollutants

Compatible with:

• NDS Pro Series 3"-inch channel drain systems
• Standard 3"-inch drainage pipes and fittings
