NDS 712 - 3" Inch Pro Series Channel Drain End Cap Light Gray

NDS 712 - 3" Pro Series End Cap

The NDS 712 3" inch Pro Series Channel End Cap is a high-quality drainage solution designed to provide a clean finish for 3"-inch Pro Series channel drains. This durable end cap effectively seals the channel end, preventing debris infiltration and ensuring optimal water flow.

Product Specifications:

• Material: Polypropylene (PP) treated with UV inhibitors.
• Color: Light gray

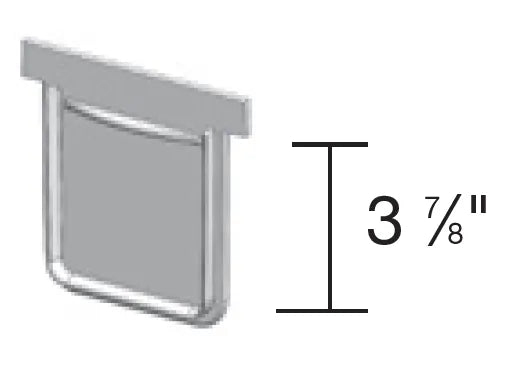

• Dimensions: 3 7/8" Depth (fits 3" Pro Series channels)
• UV-resistant: Yes
• Chemical-resistant: Yes
• Compatible with: NDS Pro Series 3" channel drains

Installation Instructions:

1. Ensure the channel end is clean and free of debris.
2. Apply a small bead of silicone sealant around the inner edge of the end cap.
3. Align the end cap with the channel end, ensuring a proper fit.
4. Press the end cap firmly onto the channel end.
5. Secure the end cap using stainless steel screws (not included) through pre-drilled holes.
6. Allow the silicone sealant to cure according to manufacturer's instructions.
7. Test the installation by running water through the channel to ensure proper sealing.

The NDS 712 3" Inch Pro Series Channel End Cap offers a professional-grade solution for completing your drainage system. Its robust construction and easy installation make it an ideal choice for both residential and commercial applications.
