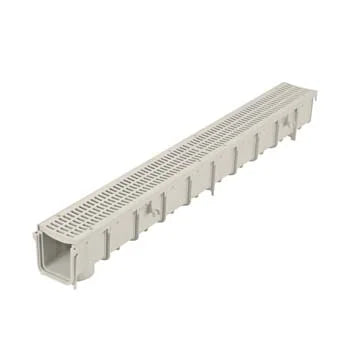

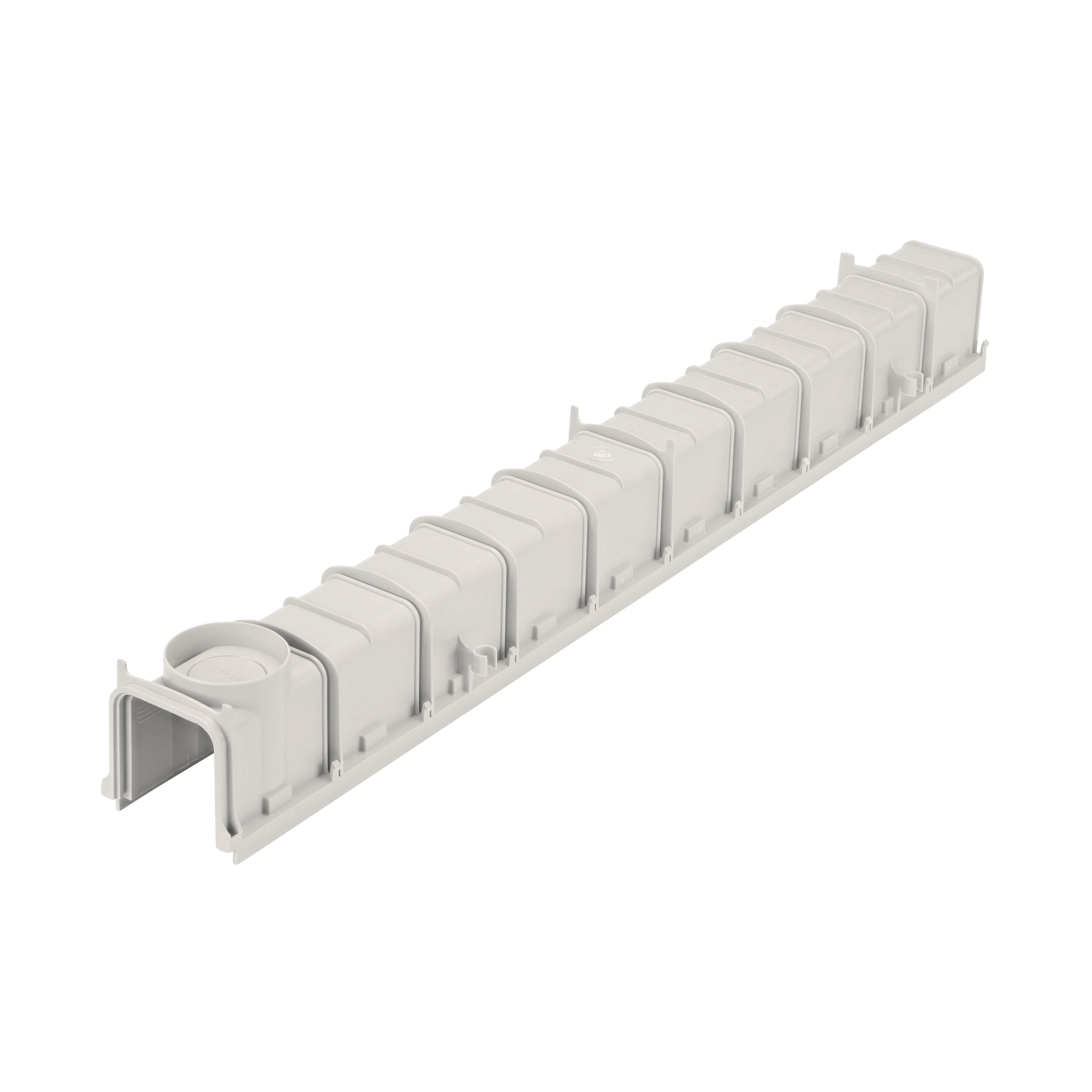

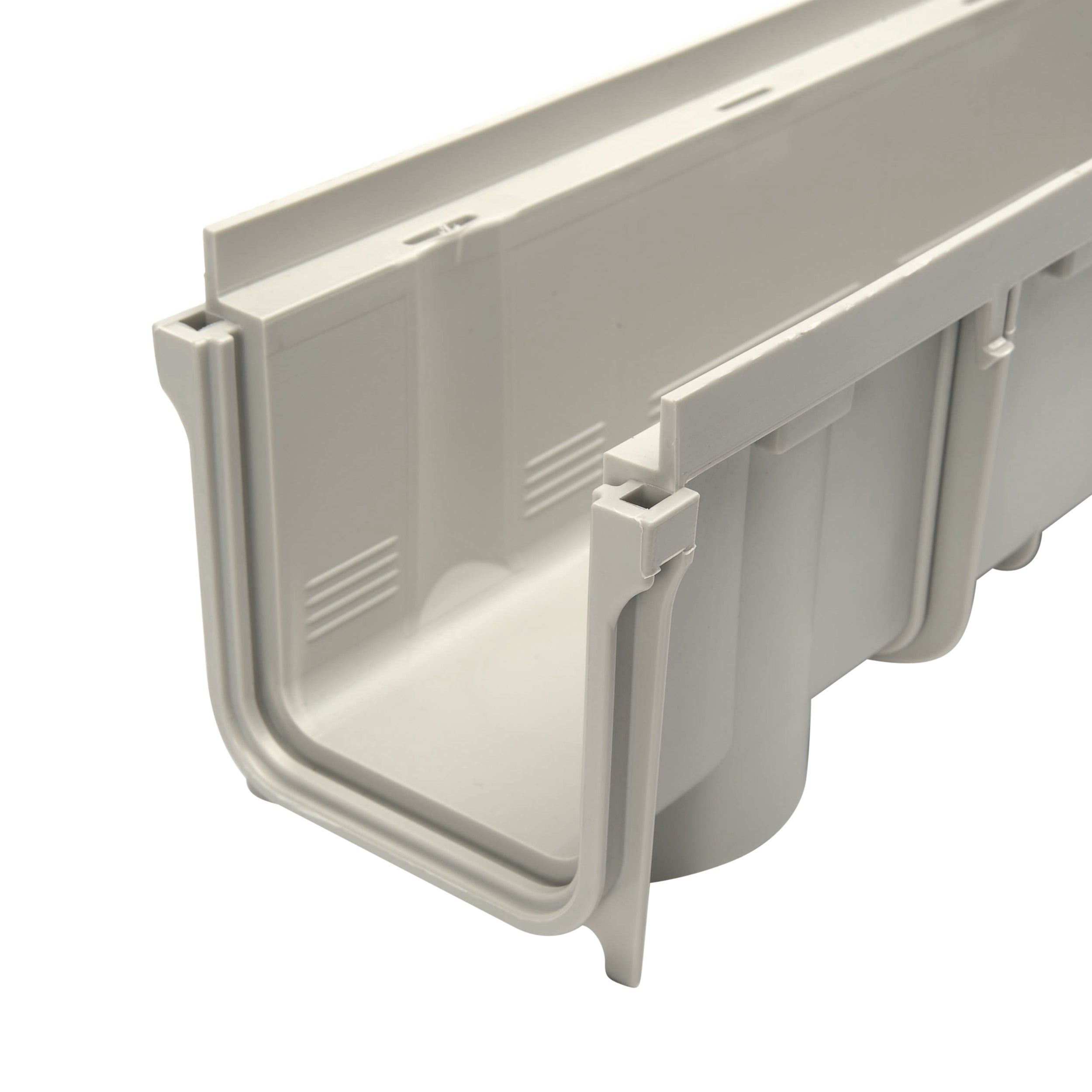

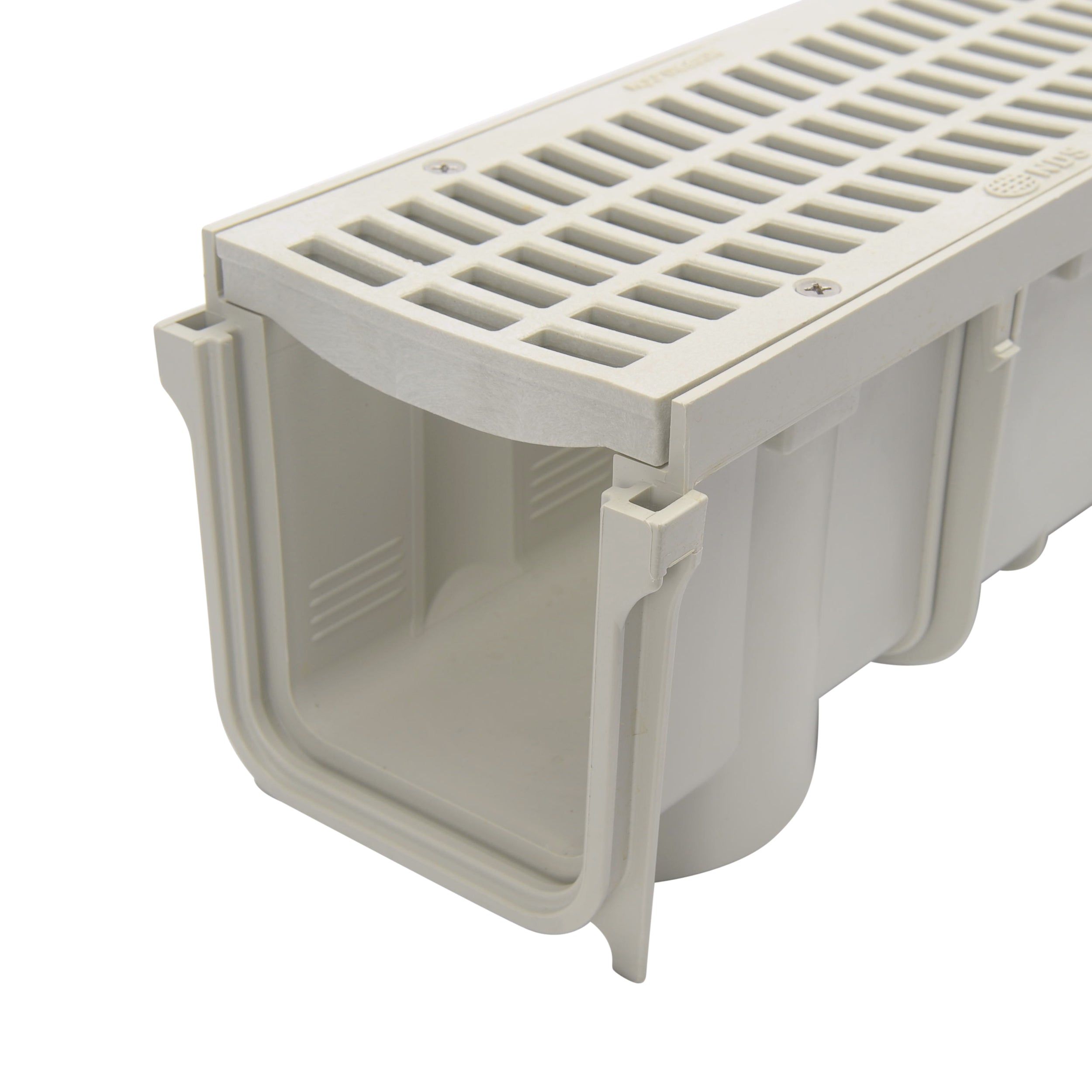

NDS 710 - 3" Inch Pro Series Channel Drain (1 Meter)

NDS 710 - 3" Pro Series Channel Drain

The NDS 710 3"inch Pro Series Channel Drain is a professional-grade drainage solution designed for efficient water management in residential and commercial applications. This durable channel drain system offers superior performance and easy installation for driveways, patios, pool decks, and other areas requiring effective surface water removal.

Key Features:

• 3"-inch wide channel for optimal water flow
• Durable, Polyvinyl Chloride (PVC) with UV inhibitors
• UV-resistant for long-lasting performance
• Interlocking design for easy installation
• Compatible with various grate options

Installation Instructions:

1. Excavate a trench to accommodate the channel and concrete
2. Install rebar for reinforcement if required
3. Place and level the channel sections, ensuring proper slope
4. Connect sections using built-in interlocking system
5. Secure end caps and outlet adapters as needed
6. Pour concrete around the channel, leaving space for the grate
7. Install the chosen grate once concrete has cured

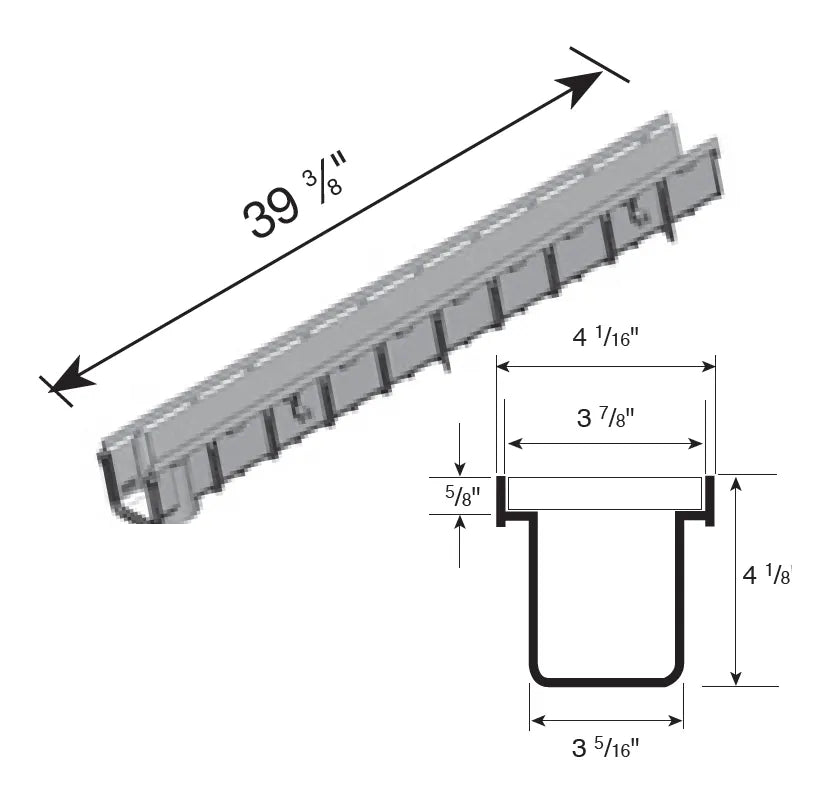

Product Specifications:

• Channel width: 3" inches
• Channel length: 39.4 inches (1 meter) per section
• Material: Polyvinyl Chloride (PVC) with UV inhibitors
• Load class: Varies based on grate selection (pedestrian to heavy vehicle)
• Flow rate: Up to 72 gallons per minute (dependent on installation)
• Chemical resistance: Excellent
• Temperature range: -40°F to 140°F (-40°C to 60°C)
• Available accessories: End caps, outlet adapters, catch basins
