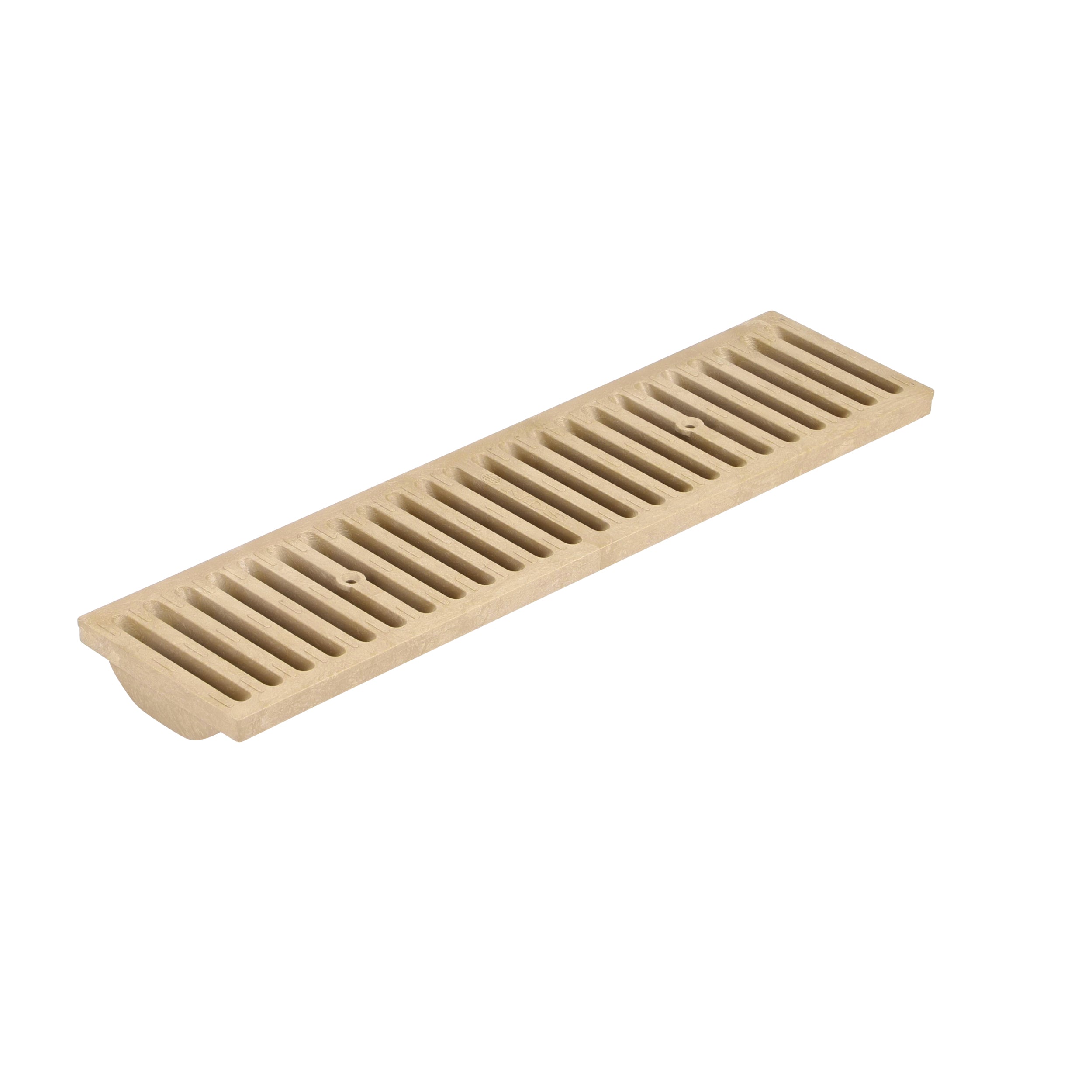

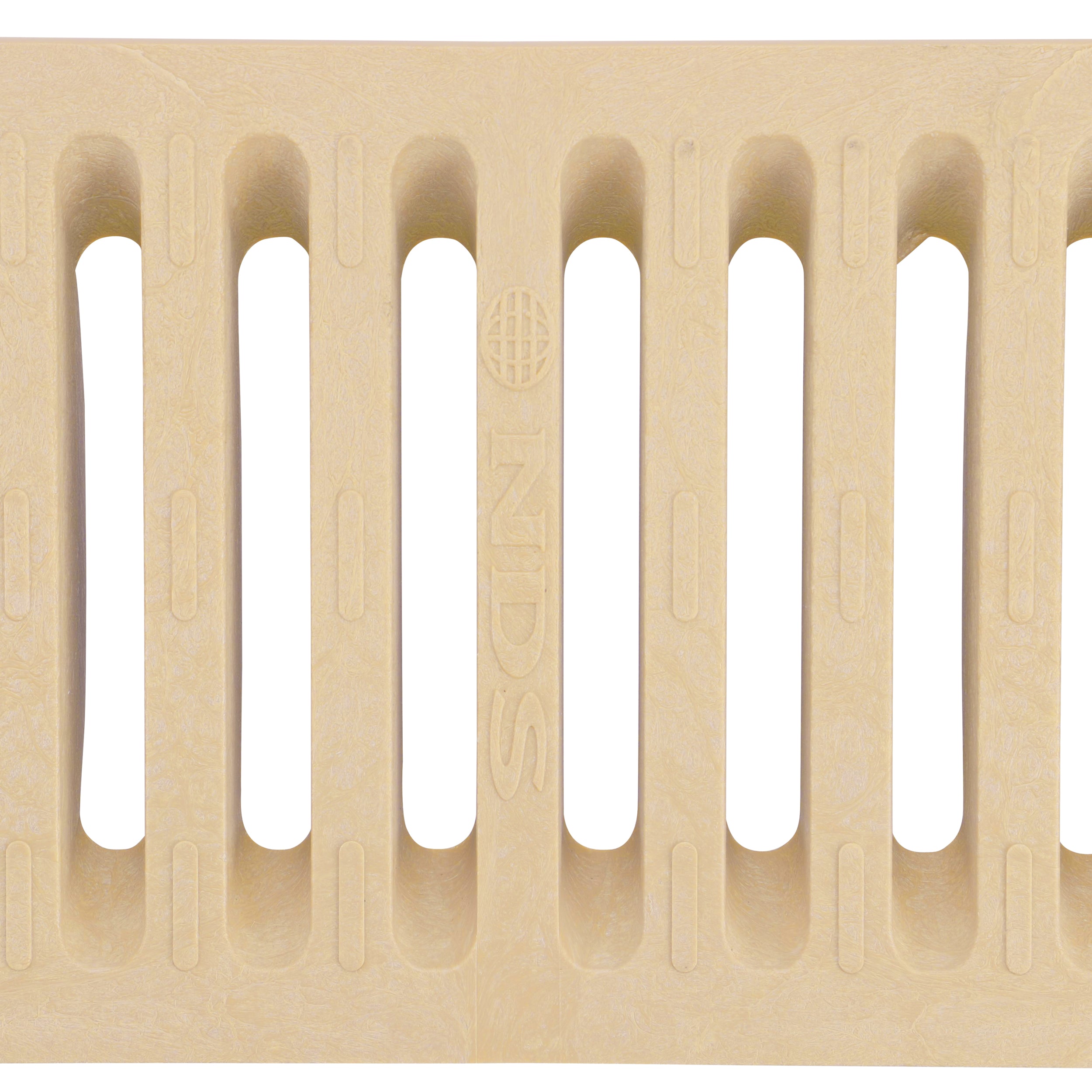

NDS 664 - 2FT Dura Channel Grate - Sand

NDS 664 - Dura-Slope Channel Grate - Sand

Colors: Black (#663), Brick Red (#665), Gray (#661), Green (#662), & White (#660)

The NDS 664 2FT Dura Channel Grate is a high-performance drainage solution designed for residential and light commercial applications. This durable grate provides efficient water management and superior load-bearing capacity.

Key Features:

• Length: 2 feet
• Material: Durable plastic composite
• Design: Low-profile, sleek appearance
• Application: Ideal for driveways, patios, and walkways

Installation Instructions:

1. Excavate a trench to the required depth and width.
2. Install the Dura Channel base according to manufacturer guidelines.

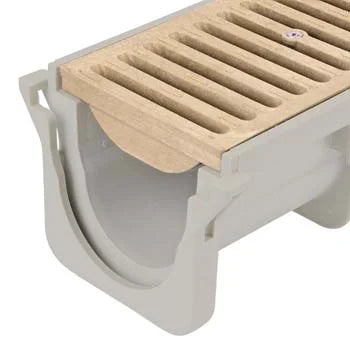

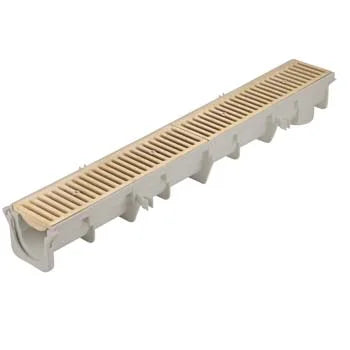

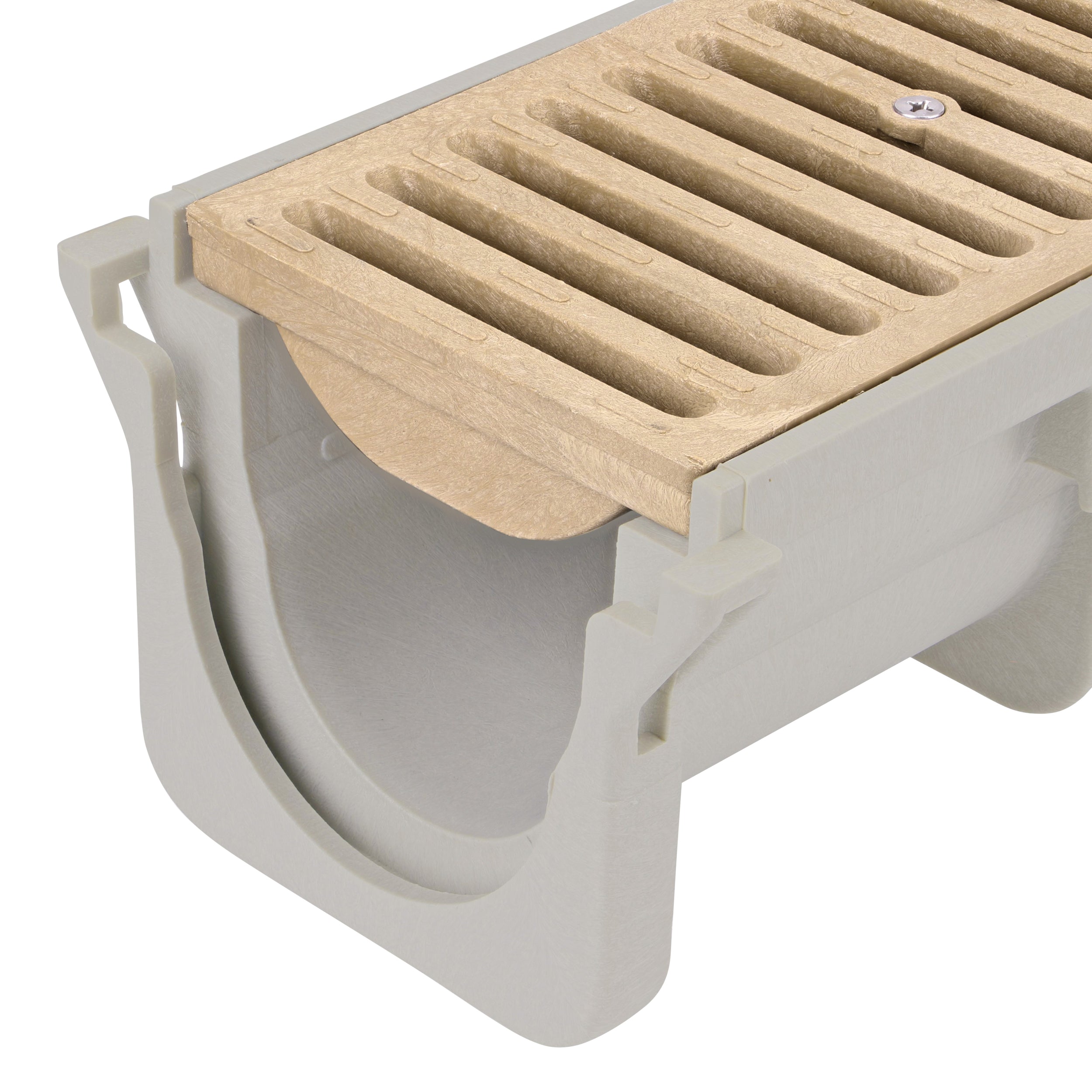

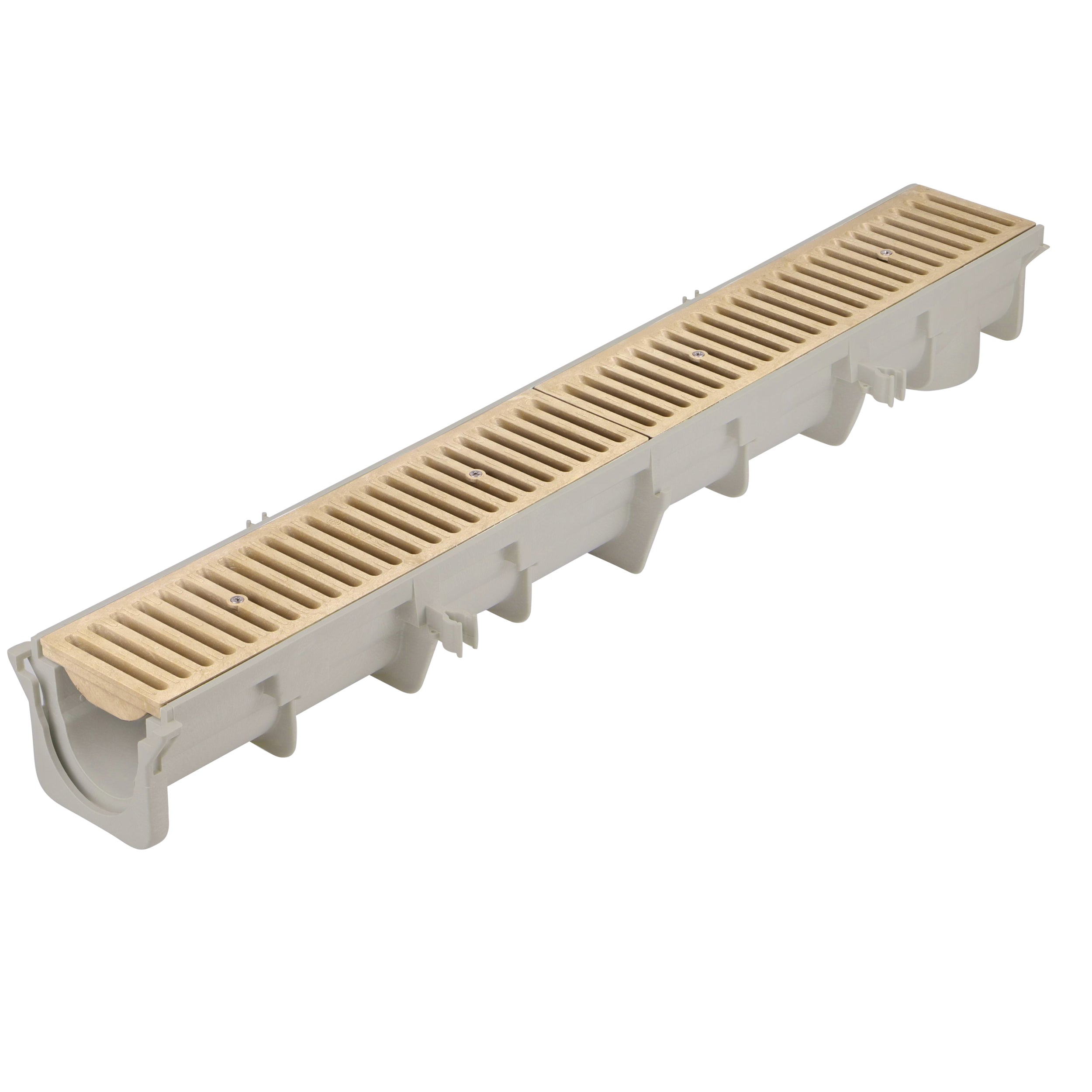

3. Place the 664 2FT grate onto the channel, ensuring proper alignment.
4. Secure the grate using the integrated locking mechanism.
5. Backfill and compact the surrounding area.

Product Specifications:

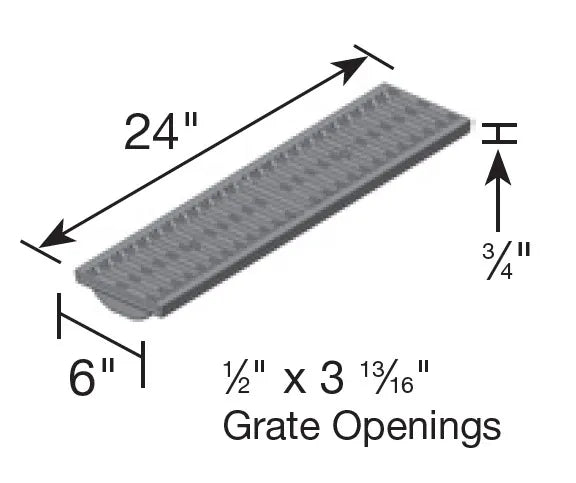

• Dimensions: 24" L x 6" W
• Load Class: Light duty (up to 2,000 lbs)
• Flow Rate: 10 GPM per linear foot
• Color: Sand
• UV Resistant: Yes
• Chemical Resistant: Yes
• Warranty: 10-year limited manufacturer warranty

Product and Technical Information

Manual - NDS Dura Slope
Catalog - NDS Dura Slope Trench Drain

Installation Instructions - Dura Slope Trench Drain System

Technical Specifications - NDS Dura-Slope Channel Grate
