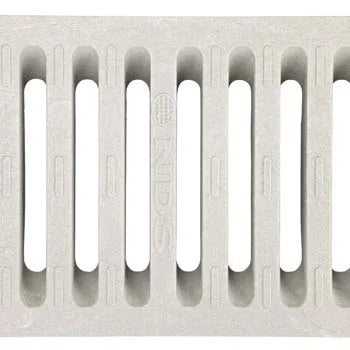

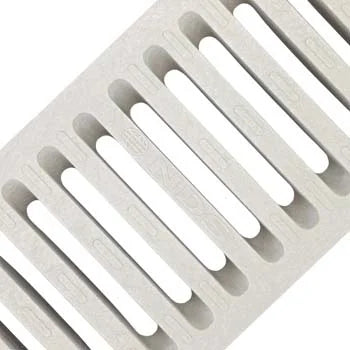

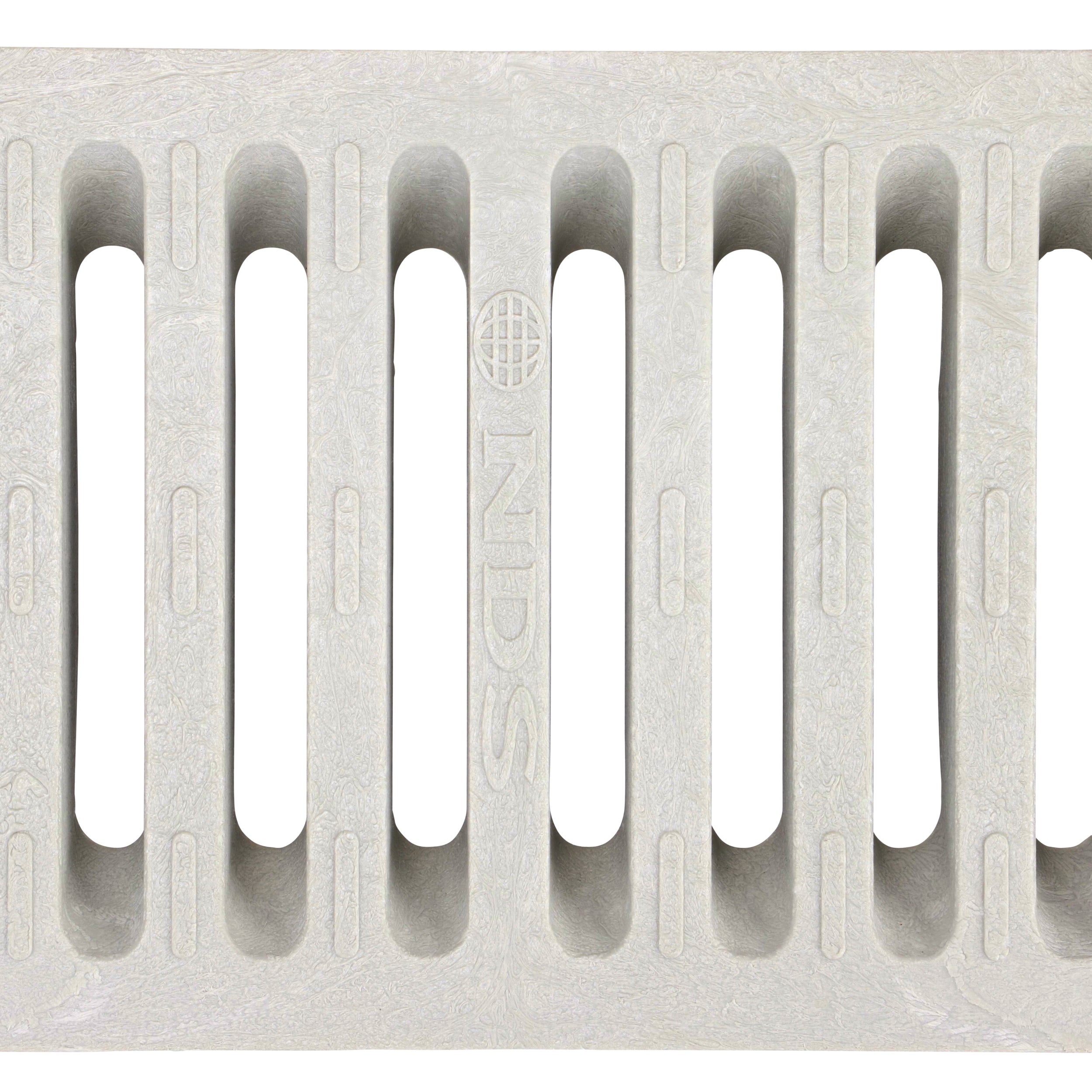

NDS 661LG - 2FT Dura Slope Grate - Light Gray

NDS 660LG - Dura-Slope Channel Grate - Light Gray

Colors: Black (#663), Brick Red (#665), Gray (#661), Green (#662), White (#660) & Sand (#664)

The NDS 660LG 2FT Dura Channel Grate is a high-performance drainage solution designed for residential and light commercial applications. This durable grate provides efficient water management and superior load-bearing capacity.

Key Features:

• Length: 2 feet
• Material: Durable plastic composite
• Design: Low-profile, sleek appearance
• Application: Ideal for driveways, patios, and walkways

Installation Instructions:

1. Excavate a trench to the required depth and width.
2. Install the Dura Channel base according to manufacturer guidelines.
3. Place the 660LG 2FT grate onto the channel, ensuring proper alignment.
4. Secure the grate using the integrated locking mechanism.
5. Backfill and compact the surrounding area.

Product Specifications:

• Dimensions: 24" L x 6" W
• Load Class: Light duty (up to 2,000 lbs)
• Flow Rate: 10 GPM per linear foot
• Color: Light Gray
• UV Resistant: Yes
• Chemical Resistant: Yes
• Warranty: 10-year limited manufacturer warranty
