The NDS 6 6IN Square Grate is a durable and attractive solution for drainage systems in residential and commercial applications. Designed to fit 4-inch pipe, this 6-inch square grate provides efficient water flow while preventing debris from entering your drainage system. Its sturdy construction and sleek design make it ideal for driveways, patios, pool decks, and other outdoor areas.
Key Features:
- 6-inch square design
- Compatible with 4-inch pipe
- Durable UV-resistant plastic construction
- Slip-resistant surface
- Available in black, green, and sand colors
- Easy to install and maintain
Installation Instructions:
- Ensure the drain pipe is properly installed and level.
- Place the grate over the drain pipe opening.
- Mark the outline of the grate on the surrounding surface.
- Remove the grate and apply a bead of outdoor-rated adhesive around the marked area.
- Place the grate back into position, pressing firmly to secure it.
- Allow the adhesive to cure according to manufacturer instructions.
- For added stability, you may use small screws to fasten the grate to the surrounding surface.
Product Specifications:

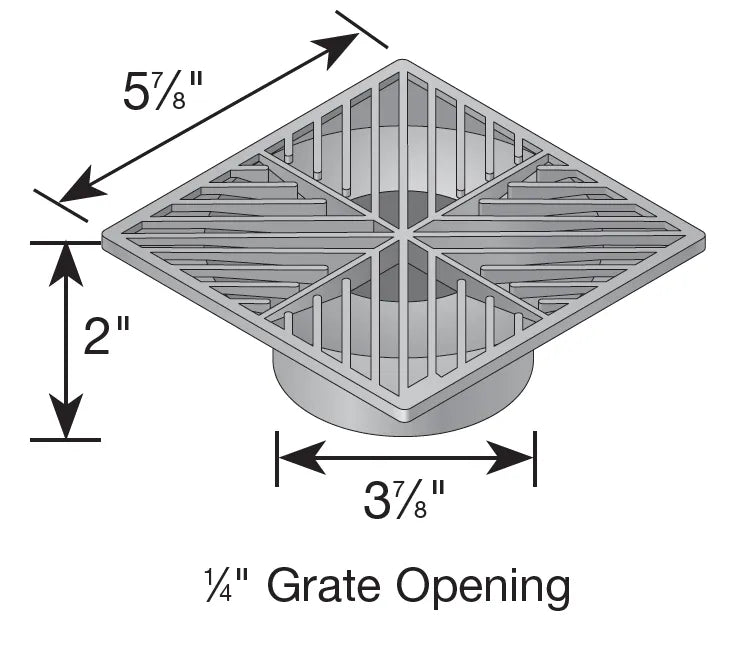

- Dimensions: 6" x 6" (outer dimensions)
- Material: High-impact polypropylene
- Load capacity: Light vehicular traffic (up to 2,000 lbs)
- Pipe compatibility: 4-inch round pipe
- Flow rate: Up to 41 GPM (gallons per minute)
- UV stabilized for long-lasting outdoor use
- Compliance: Meets ASME A112.6.3 standards
- Color: Gray
Maintenance: Clean the grate periodically to ensure optimal performance. Remove any accumulated debris and rinse with water. For tougher stains, use a mild detergent and soft brush.
Product and Technical Information
Technical Specifications - NDS 6" Square Grate
