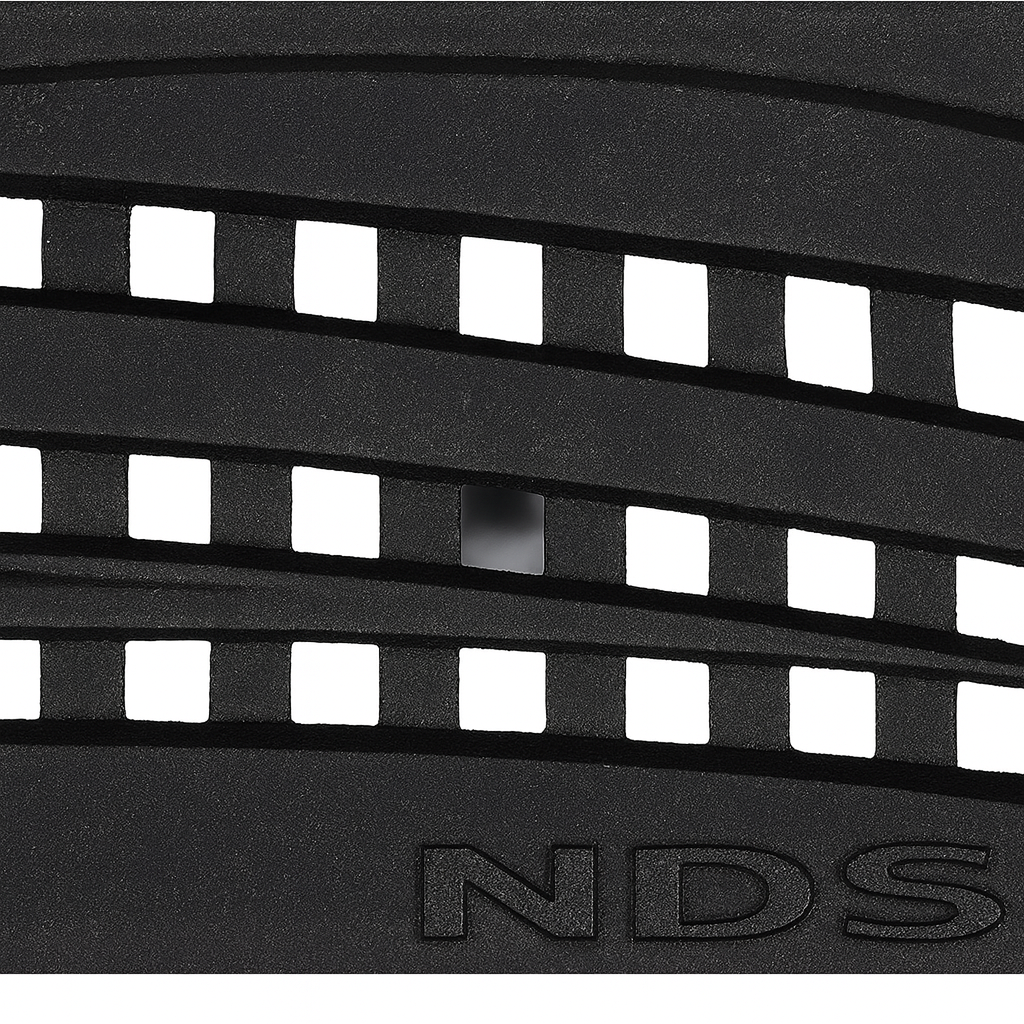

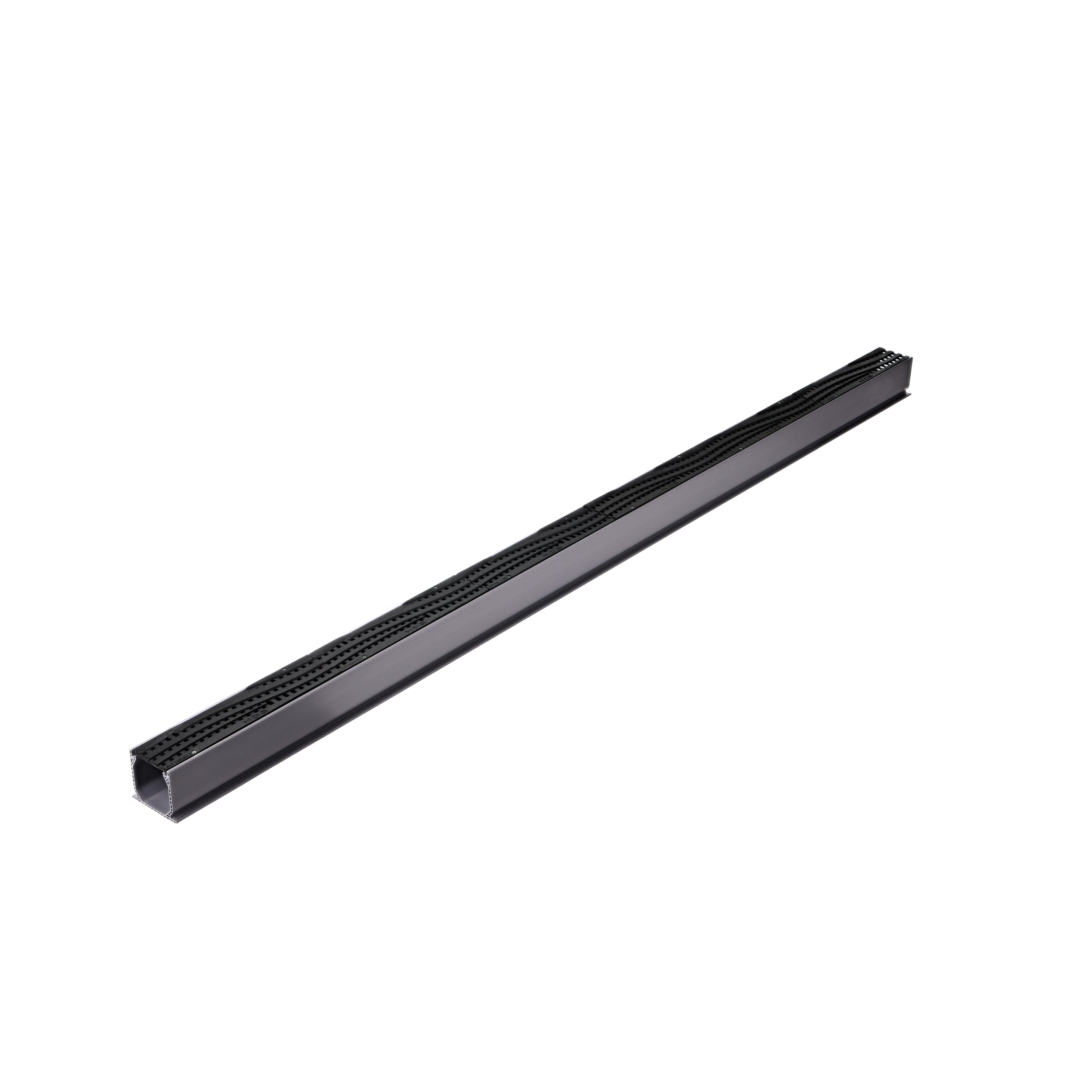

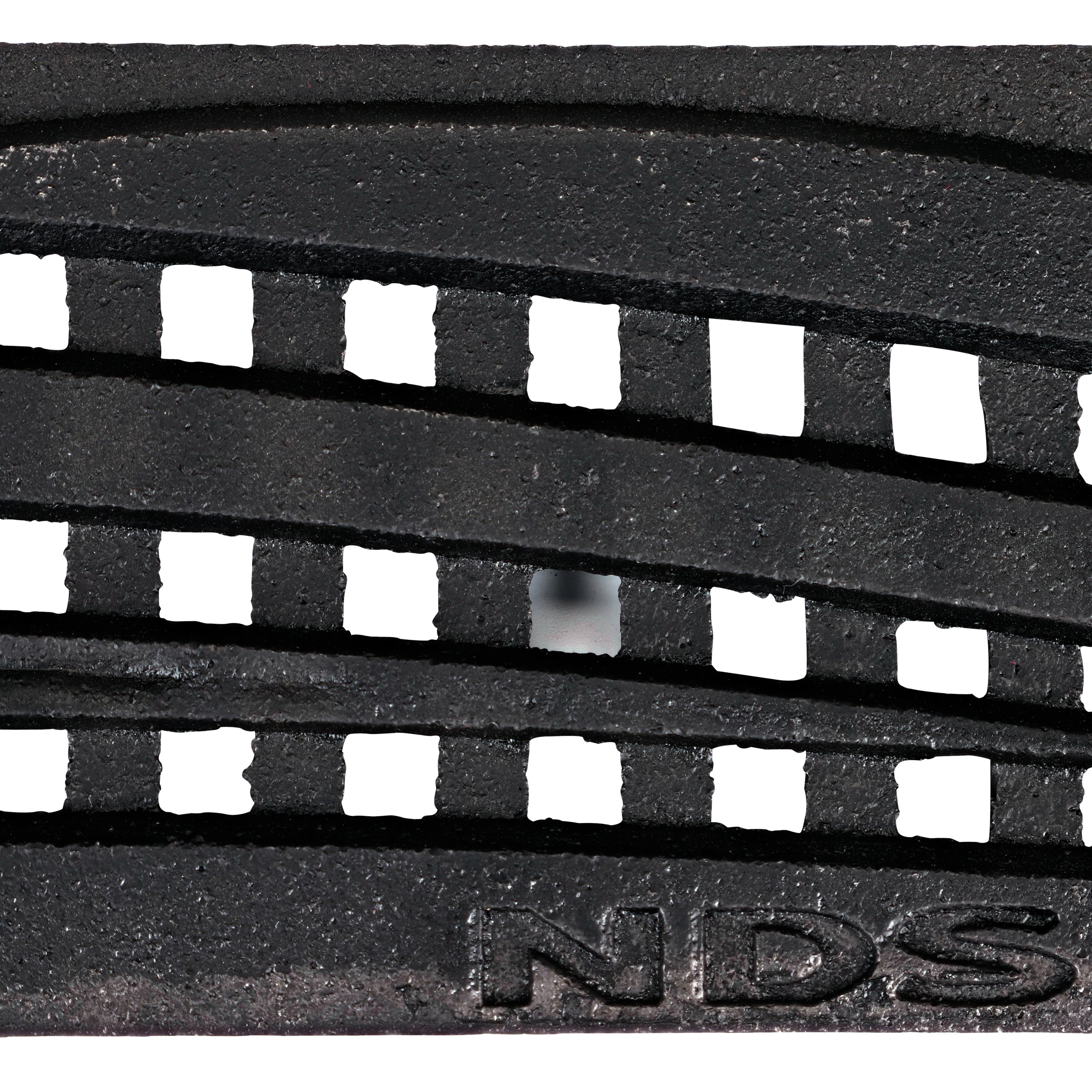

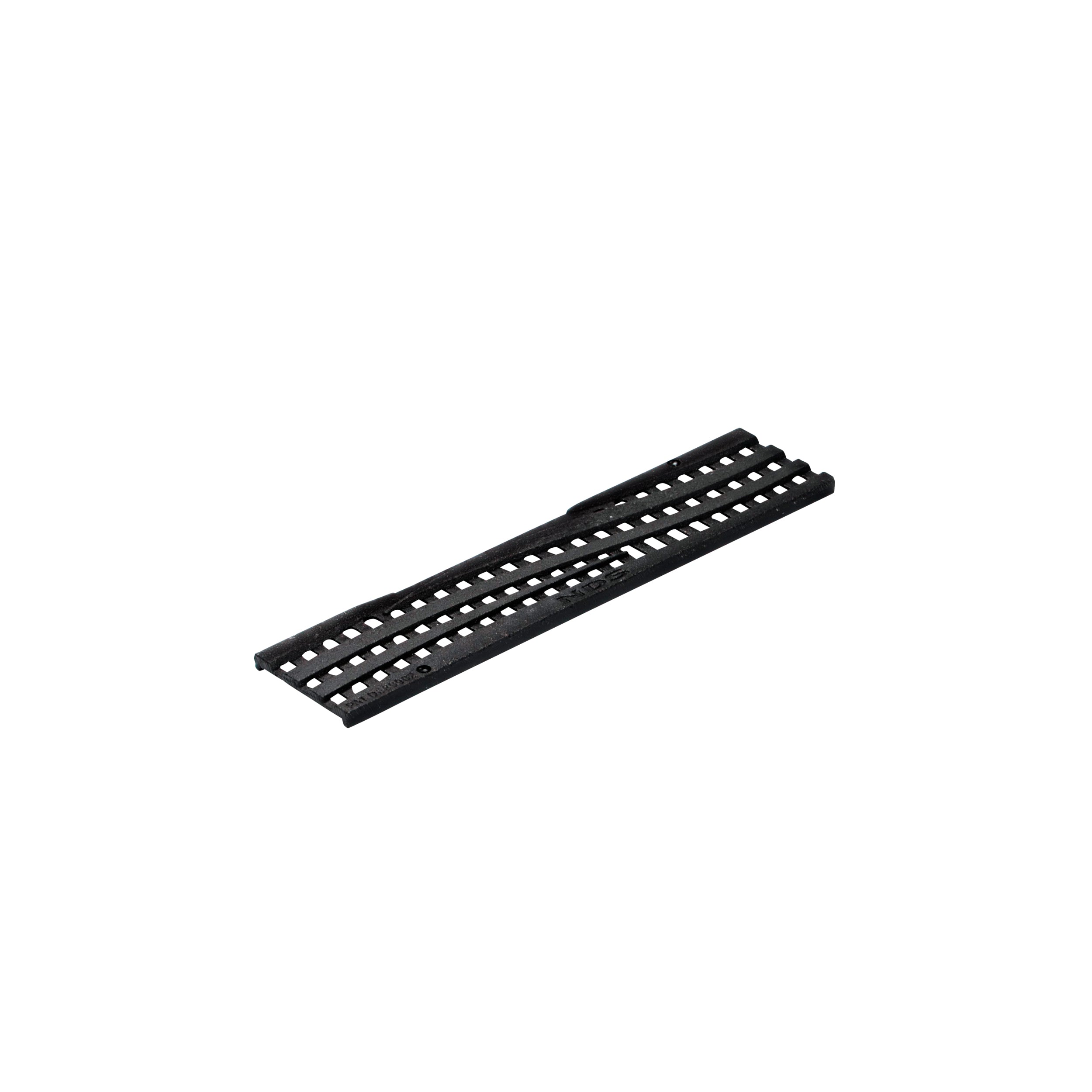

NDS 555 - 3FT Wave Grate - Black

NDS 555 - Mini Channel Decorative Wave Grate - Black

Colors: Black (#555), Gray (#555GY), Green (#555GR) & Sand (#555S)

The NDS 555 3FT Wave Grate is a durable, aesthetically pleasing drainage solution designed for residential and commercial applications. Its wave pattern offers excellent water flow while preventing debris from entering the drain system.

Product Specifications:

• Material: High-impact polypropylene
• Length: 3 feet (36 inches)
• Width: 5.4 inches
• Color: Black
• Load Class: Light traffic (pedestrian)
• Compatible with NDS 3-inch and 4-inch channel drains

Installation Instructions:

1. Ensure the channel drain is properly installed and level.
2. Clean the top edges of the channel drain.
3. Align the Wave Grate with the channel drain.
4. Press the grate firmly into place, ensuring it snaps securely onto the drain.
5. For additional security, use stainless steel screws to fasten the grate to the drain (optional).

Features:

• UV-resistant for long-lasting performance
• Slip-resistant surface for safety
• Easy to remove for cleaning and maintenance
• Interlocking design for extended lengths
