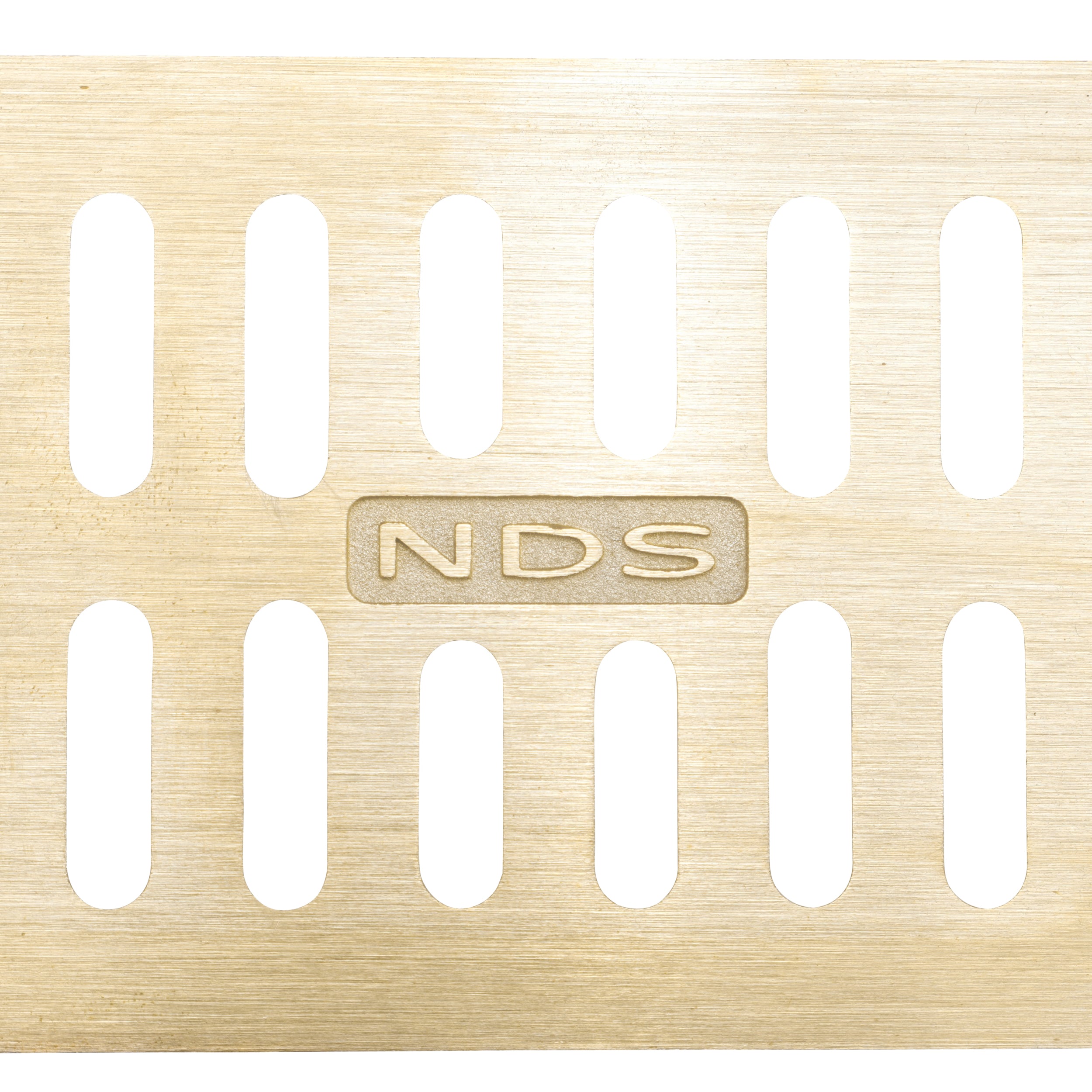

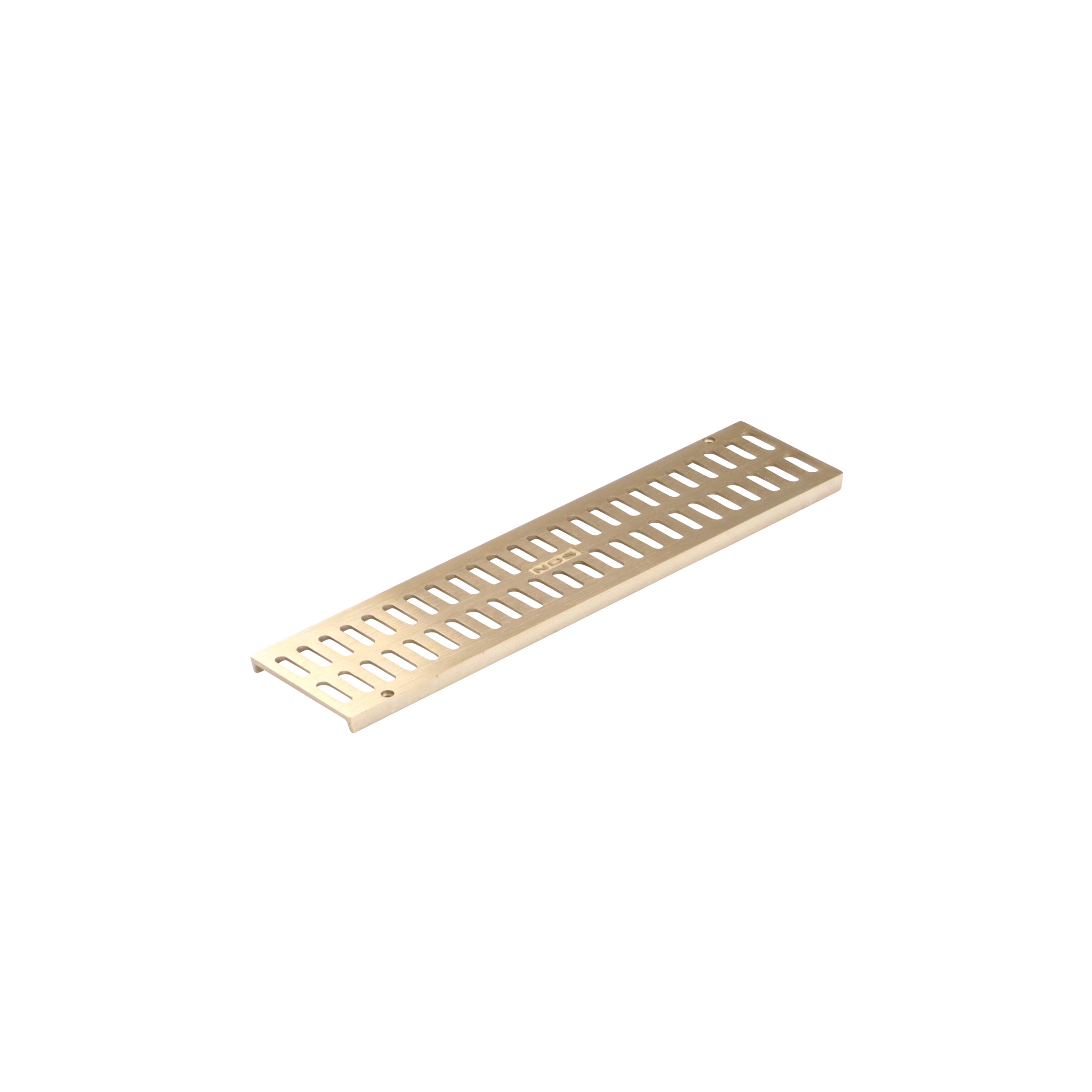

NDS 552B - 1FT Mini Channel Grate - Satin Brass

NDS 552B - Mini Channel Grate, 12" Satin Brass

The NDS 552B is a 12-inch mini channel grate designed for efficient water drainage in residential and light commercial applications. This durable grate provides a sleek, low-profile solution for managing surface water runoff in driveways, patios, and walkways.

Key Features:

• 12-inch length
• Low-profile design
• Corrosion-resistant materials
• Easy installation
• Suitable for pedestrian and light vehicle traffic

Installation Instructions:

1. Excavate a trench to accommodate the channel and grate.
2. Install the channel system according to manufacturer guidelines.
3. Place the 552B grate on top of the channel, ensuring proper alignment.
4. Secure the grate to the channel using the provided locking mechanism.
5. Backfill and compact the surrounding area, ensuring proper slope for drainage.

Product Specifications:

• Material: High-impact polypropylene
• Length: 12 inches (30.48 cm)
• Load class: Light duty (up to 2,000 lbs)
• Color: Satin Brass
• Compatible with NDS Mini Channel system
