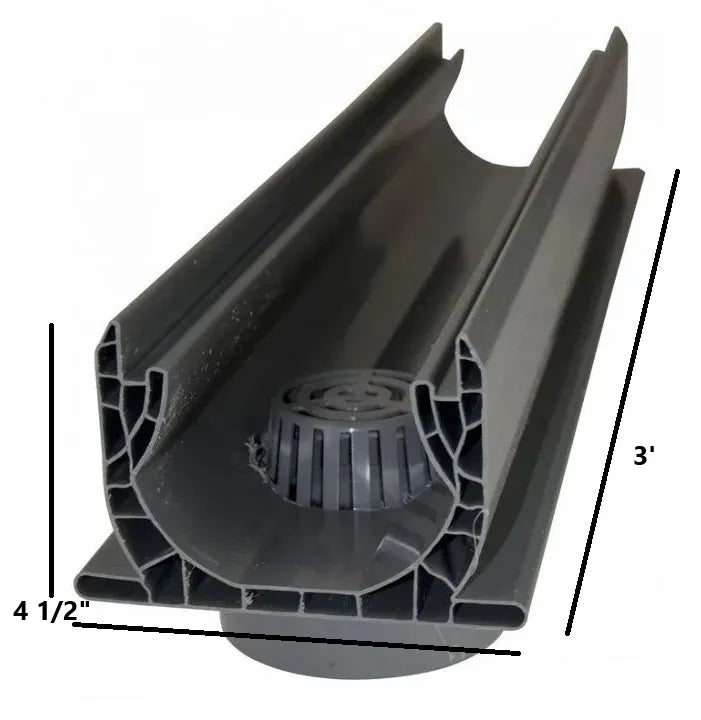

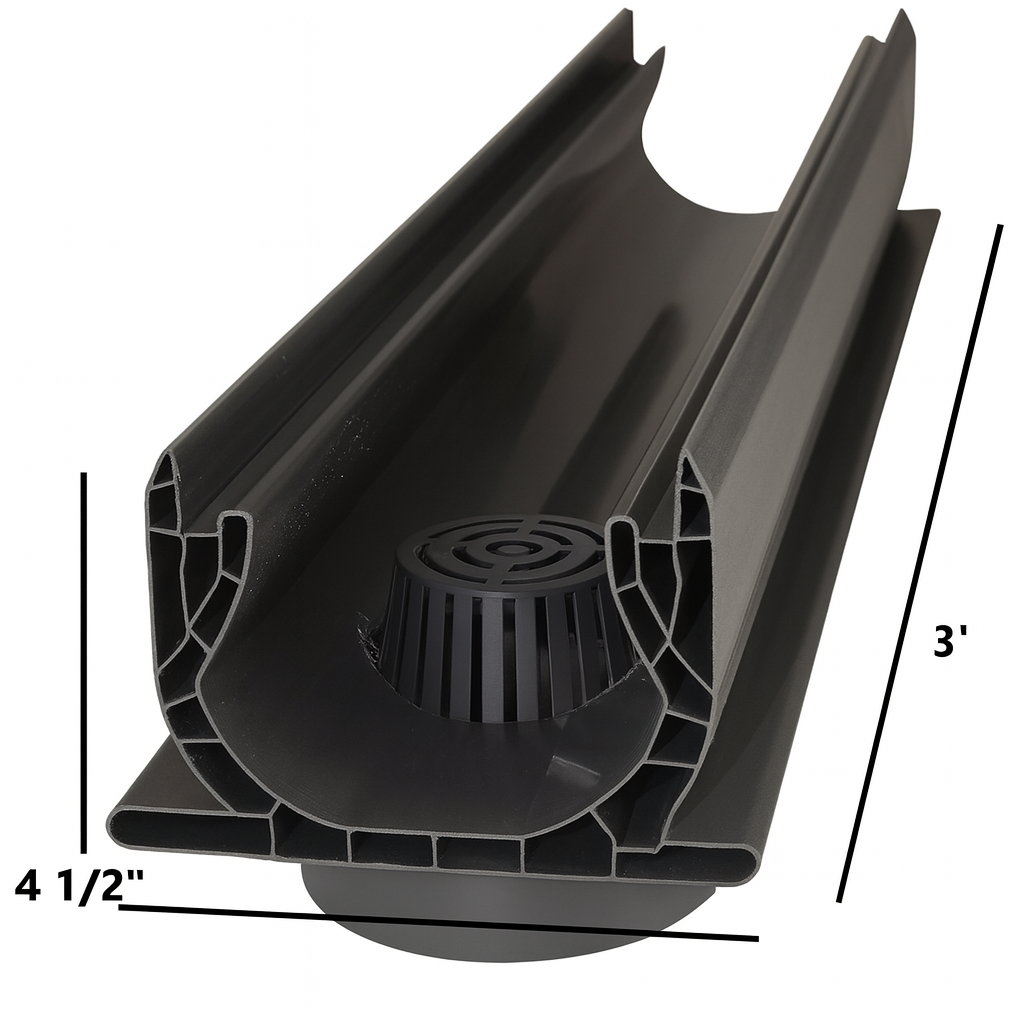

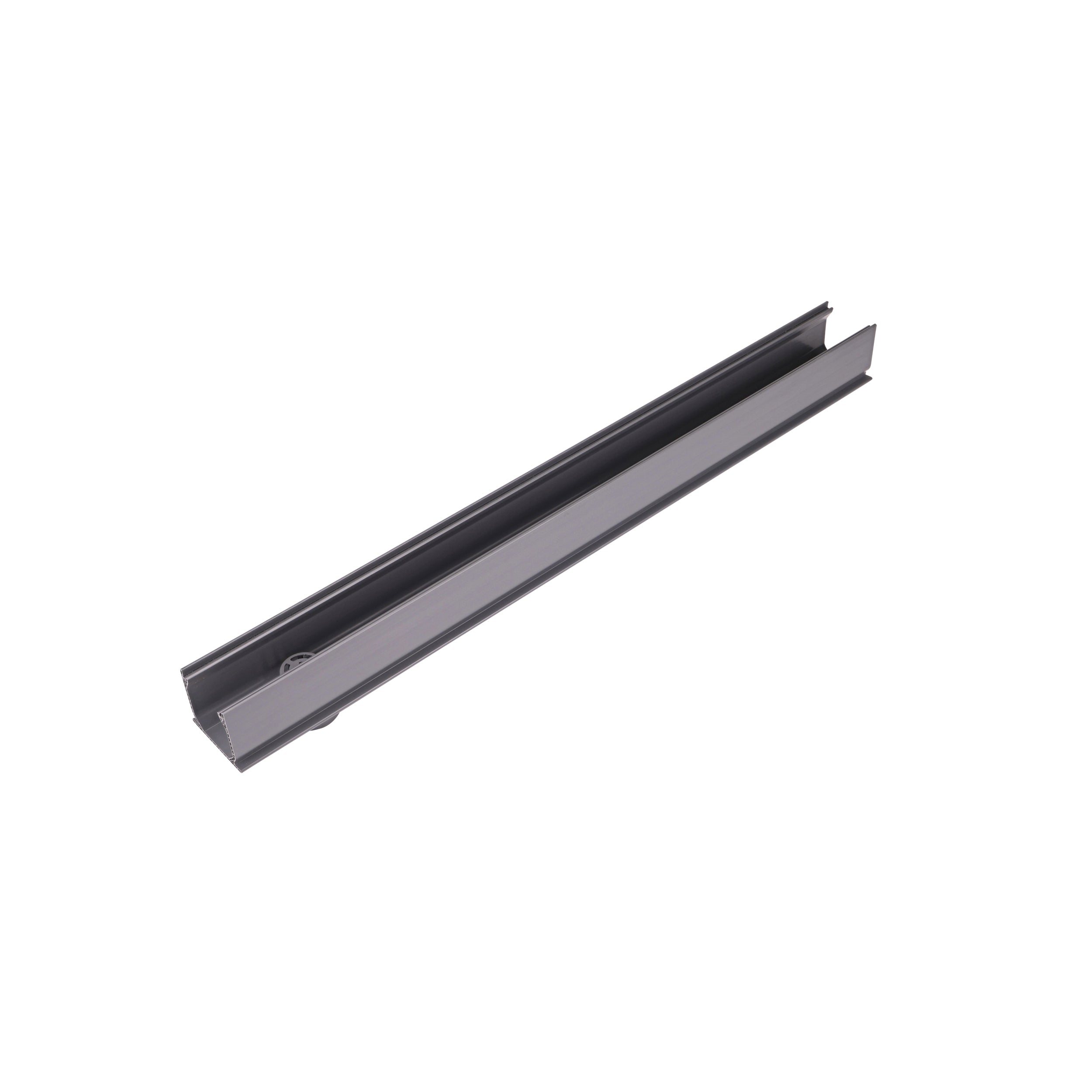

NDS 550 - 3FT Mini Channel With 2" Spigot Bottom Outlet

NDS 550 - 3' Mini Channel With 2" Spigot Bottom Outlet

The NDS 550 3FT Mini Channel With 2IN Spigot Bottom Outlet is a high-quality drainage solution designed for efficient water management in residential and light commercial applications. This durable channel system effectively collects and directs surface water, preventing flooding and erosion.

Key Features:

• 3-foot long mini channel
• 2-inch spigot bottom outlet for easy connection to drainage pipes
• Lightweight yet sturdy construction
• UV-resistant material for long-lasting performance
• Compatible with various grate options (sold separately)

Installation Instructions:

1. Excavate a trench slightly wider and deeper than the channel.
2. Create a level base using compacted gravel or concrete.
3. Begin installation at the outlet point, connecting the bottom spigot to your drainage pipe.
4. Place the channel in the trench, ensuring it's level and properly aligned.
5. Secure the channel in place using concrete on both sides, leaving the top 1/8 inch below the finished grade.
6. Install additional channel sections as needed, connecting them securely.
7. Add your chosen grate (sold separately) to complete the installation.
8. Backfill and finish the surrounding area as desired.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Length: 3 feet (36 inches)
• Bottom outlet size: 2-inch spigot
• Load class: Suitable for pedestrian and light vehicle traffic (confirm exact rating)
• Color: Black
