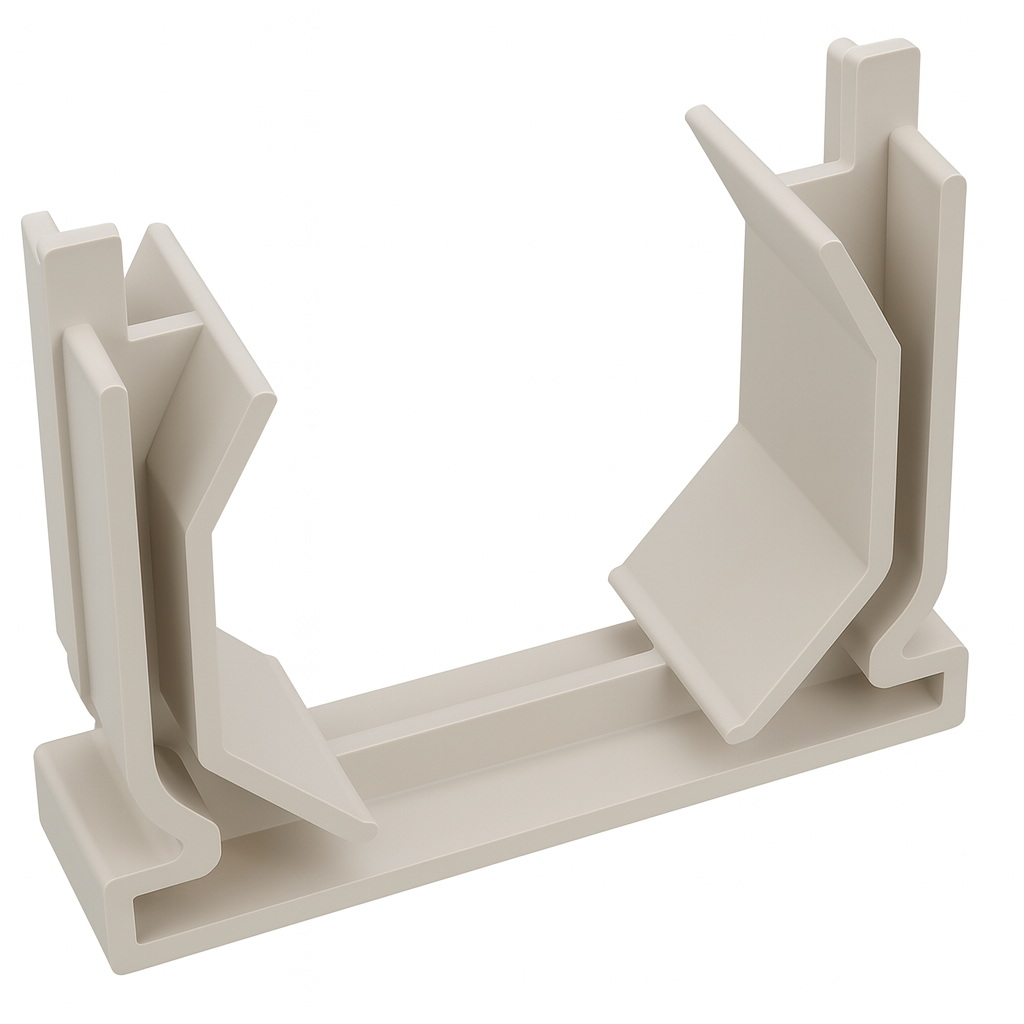

NDS 548S - Mini Channel Coupling - Sand

NDS 548S - Mini Channel Coupling - Sand

The NDS 548S Mini Channel Coupling is a durable, sand-colored connector designed to join sections of mini channel drainage systems seamlessly. This coupling ensures a secure, leak-free connection between channel segments, allowing for efficient water flow and easy system expansion.

Installation Instructions:

1. Clean the ends of the mini channels to be connected.
2. Align the coupling with the channel ends.
3. Push the coupling onto one channel end until it stops.
4. Slide the other channel into the opposite end of the coupling.
5. Ensure both channels are fully seated in the coupling.
6. If desired, apply a small amount of silicone sealant around the joint for extra protection.

Product Specifications:

• Material: High-impact polypropylene
• Color: Sand
• Compatible with NDS mini channel systems
• UV-resistant for long-lasting outdoor use
• Chemical-resistant
• Temperature range: -40°F to 180°F (-40°C to 82°C)
• Load class: Suitable for pedestrian and light vehicle traffic

Product and Technical Information

Technical Specifications - NDS Mini Channel Coupling
