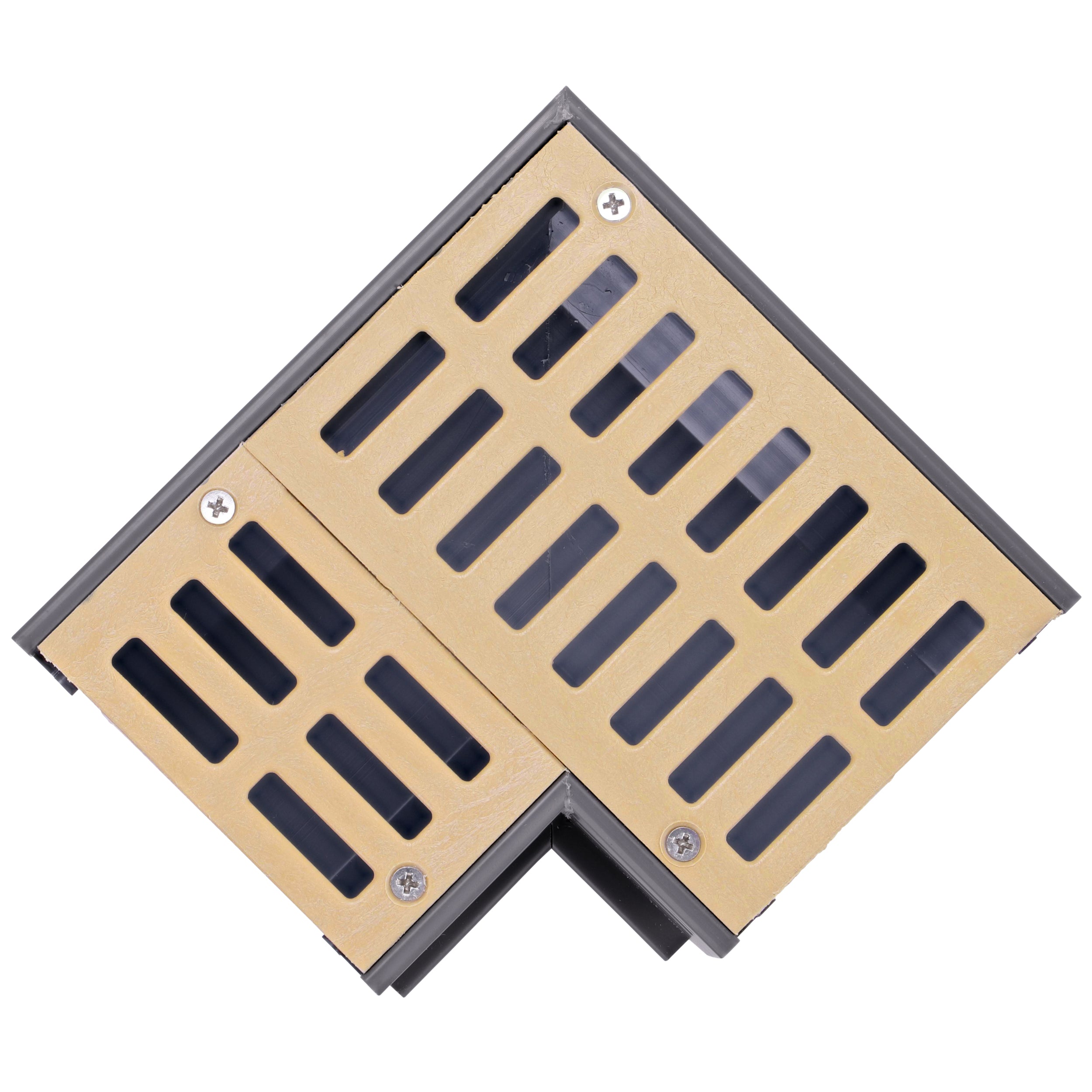

NDS 5383 - Mini Channel Fabricated 90 Degree Elbow With Grate - Sand

NDS 5383 - Mini Channel Fabricated 90 Degree Elbow With Grate - Sand

The NDS 5383 Mini Channel Fabricated 90-Degree Elbow with Grate is a high-quality drainage solution designed for efficient water management in residential and light commercial applications. This pre-fabricated elbow allows for seamless 90-degree turns in your drainage system, ensuring smooth water flow around corners. The included grate provides protection against debris while allowing water to enter the channel freely.

Key Features:

• 90-degree elbow for easy cornering in drainage systems
• Durable construction for long-lasting performance
• Removable grate for easy cleaning and maintenance
• Compatible with NDS Mini Channel drainage systems
• Suitable for pedestrian traffic areas

Installation Instructions:

1. Excavate the area where the elbow will be installed, ensuring proper depth and width.
2. Place a layer of compacted gravel or sand as a base.
3. Position the elbow in the desired location, ensuring its level and aligned with connecting channels.
4. Connect the elbow to adjacent channel sections using NDS connectors (sold separately).
5. Backfill around the elbow with concrete or soil, depending on the application.
6. Install the grate by snapping it into place on the elbow.
7. Finish the surrounding surface to match your landscape design.

Product Specifications:

• Material: High-impact polypropylene
• Color: Black (elbow), Black or Gray (grate)
• Dimensions: 5" x 5" x 4" (L x W x H)
• Channel width: 3 inches
• Load class: Pedestrian traffic
• Flow rate: Up to 11 GPM (Gallons Per Minute)
• UV-resistant: Yes
• Chemical-resistant: Yes
• Freeze-thaw resistant: Yes
• Compatible with: NDS Mini Channel system components
