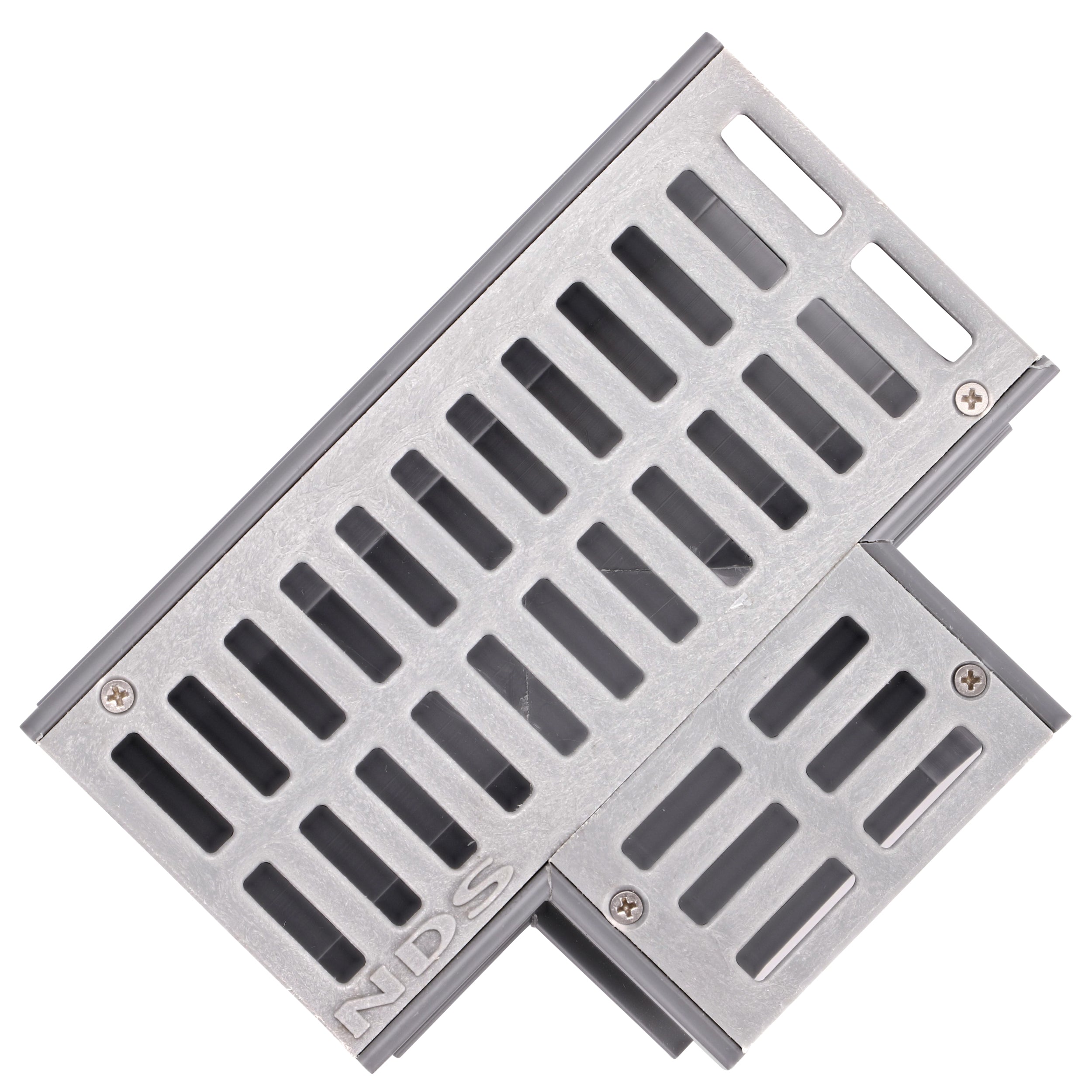

The NDS 5370 Mini Channel Fabricated Tee with Grate is a versatile and efficient drainage solution for residential and light commercial applications. This gray, T-shaped channel fitting is designed to seamlessly connect three sections of mini channel, allowing for flexible drainage system layouts. The included grate provides a durable, attractive finish while preventing debris from entering the drainage system.

Key Features:

• T-shaped design for connecting three channel sections
• Durable, UV-resistant plastic construction
• Gray color blends well with various landscaping designs
• Removable grate for easy cleaning and maintenance
• Suitable for pedestrian traffic

Installation Instructions:

1. Excavate a trench for the mini channel system, ensuring proper slope for water flow.
2. Place the NDS 5370 Fabricated Tee at the desired junction point.
3. Connect the adjoining mini channel sections to the three open ends of the tee.
4. Secure the connections using NDS locking clips or adhesive (sold separately).
5. Backfill around the channel system, compacting the soil to prevent settling.
6. Install the grate by snapping it into place on the tee.

Product Specifications:

• Material: High-density polyethylene (HDPE)
• Color: Gray
• Grate material: ABS plastic
• Load class: Pedestrian traffic
• UV resistance: Yes
• Chemical resistance: Resistant to most common chemicals and fertilizers
• Compatibility: Works with NDS Mini Channel system components
