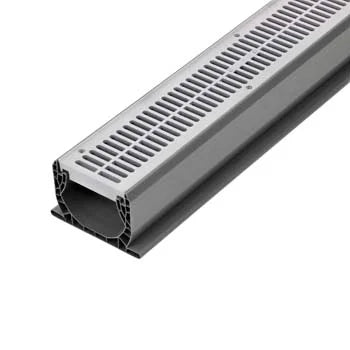

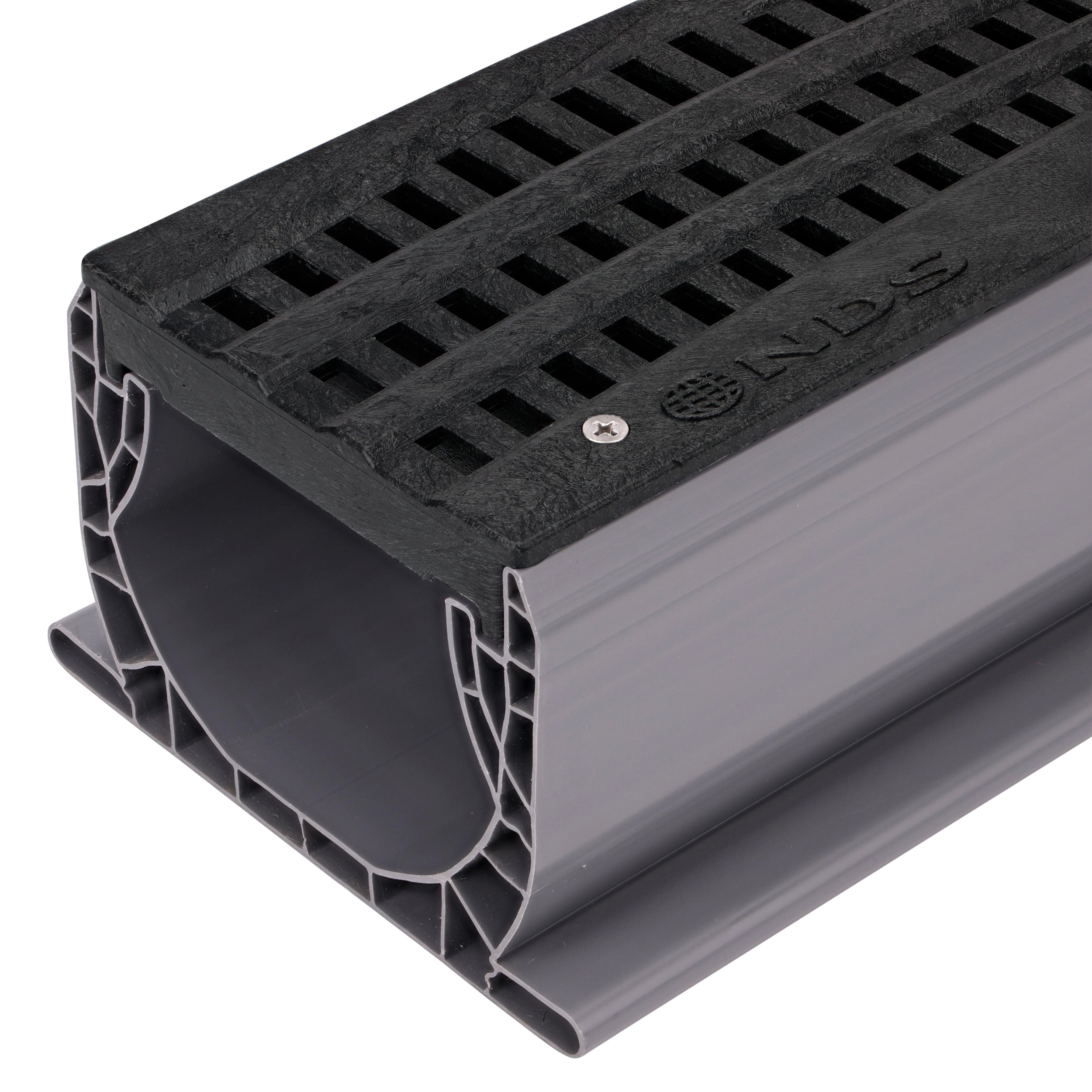

NDS 400 - 4' Spee-D Channel Drain
The NDS 400 4FT Spee-D Channel Drain is a high-performance drainage solution designed for efficient water management in residential and light commercial applications. This 4-foot long channel drain features a durable construction and easy installation process, making it ideal for driveways, patios, pool decks, and other areas requiring effective surface water removal.
Key Features:
- 4-foot length for versatile installation
- Durable, weather-resistant materials
- Interlocking design for extended drainage runs
- Compatible with various grate options
Installation Instructions:
- Excavate a trench 6 inches wider than the channel and deep enough to accommodate the drain plus 3 inches of concrete base.
- Pour a 3-inch concrete base and level it.
- Place the channel sections, ensuring proper alignment and slope (1/8 inch per foot minimum).

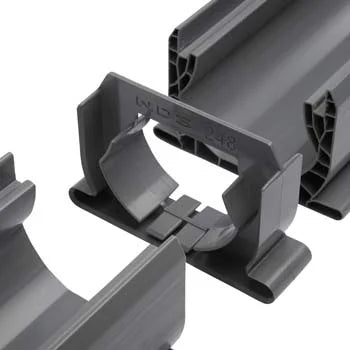

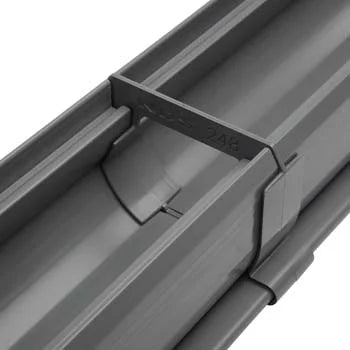

- Connect multiple sections using the interlocking system.
- Secure the channels with concrete haunching along the sides.

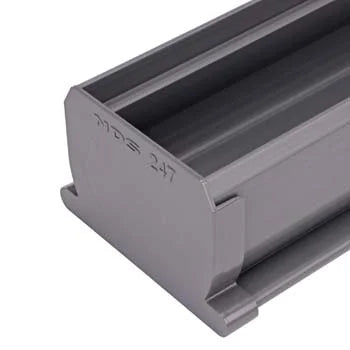

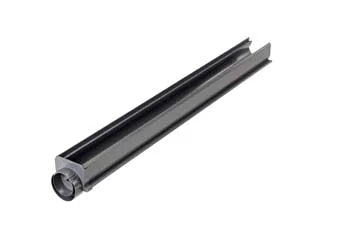

- Install end caps and outlets as needed.
- Pour concrete around the drain, leaving 1/8 inch below the top edge for the grate.
- Install the grate once the concrete has cured.
Product Specifications:
- Material: High-density polyethylene (HDPE)
- Length: 4 feet (48 inches)
- Width: 5.4 inches
- Height: 4.1 inches
- Load class: Light duty (pedestrian to light vehicle traffic)
- Flow rate: Up to 17.6 GPM
