NDS 400-10 - 10' Spee-D Channel Drain
The NDS 400-10 Spee-D Channel Drain is a high-performance, 10-foot long surface drainage solution designed for efficient water management in residential and light commercial applications. This innovative channel drain system offers quick installation and superior durability, making it ideal for driveways, patios, pool decks, and other areas prone to water accumulation.
Key Features:
- 10-foot length for extended coverage
- Durable, high-density polyethylene construction
- Pre-sloped channel for optimal water flow

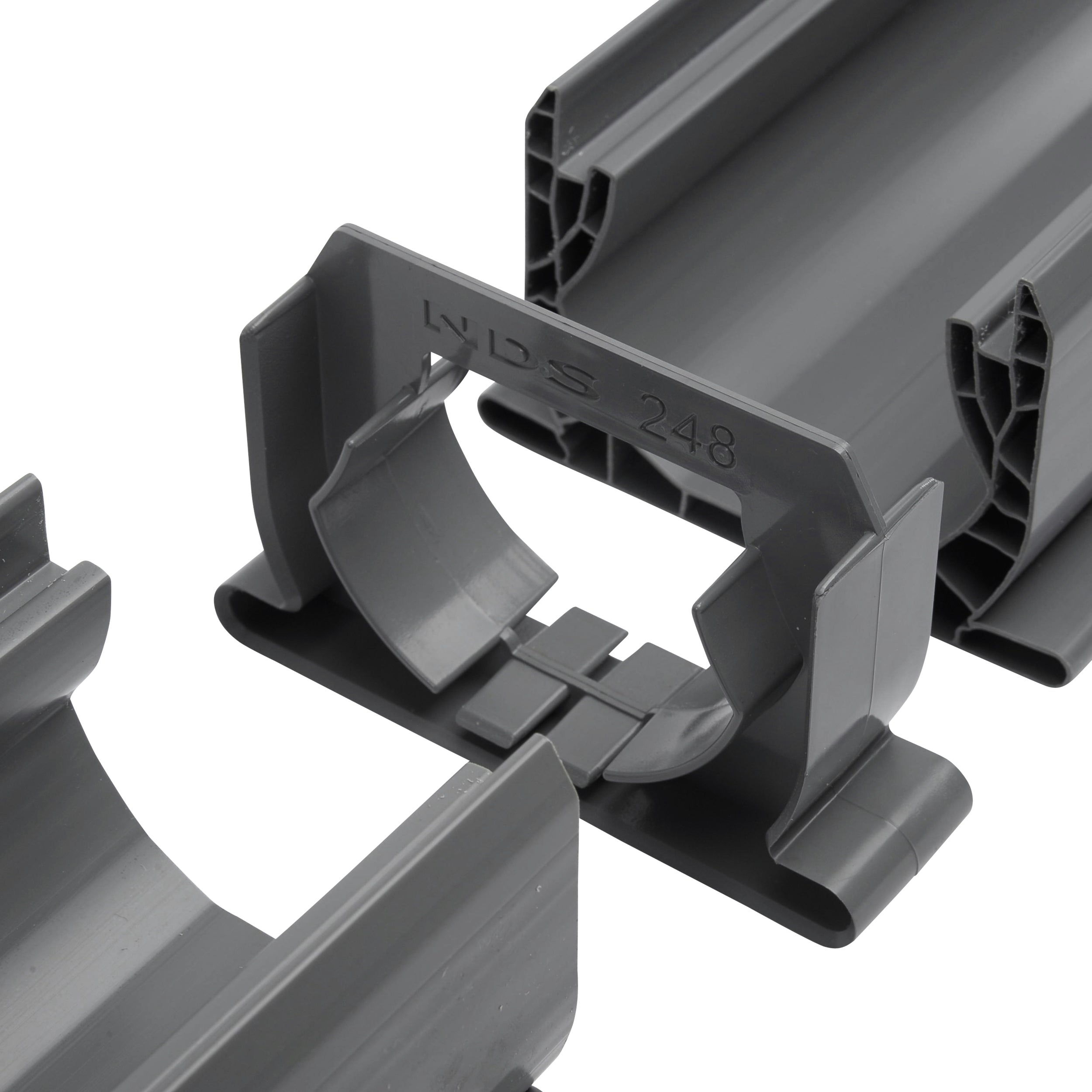

- Interlocking system for easy connection of multiple channels
- Compatible with various grate options (sold separately)
- UV-resistant material for long-lasting performance
Product Specifications:
- Length: 10 feet (3.05 meters)
- Channel width: 3 inches (7.62 cm)
- Overall width: 5 inches (12.7 cm)
- Height: 3 inches (7.62 cm)
- Material: High-density polyethylene (HDPE)
- Color: Black
- Load class: Light duty (pedestrian and light vehicle traffic)
- Flow rate: Up to 11 gallons per minute (GPM)
Installation Instructions:
- Plan and mark the drain location, ensuring a slight slope for proper water flow.
- Excavate a trench approximately 8 inches wide and 5 inches deep, allowing for a 1-inch gravel base.
- Add a 1-inch layer of gravel to the trench and compact it.
- Place the Spee-D Channel sections in the trench, starting from the lowest point. Ensure proper alignment and slope.

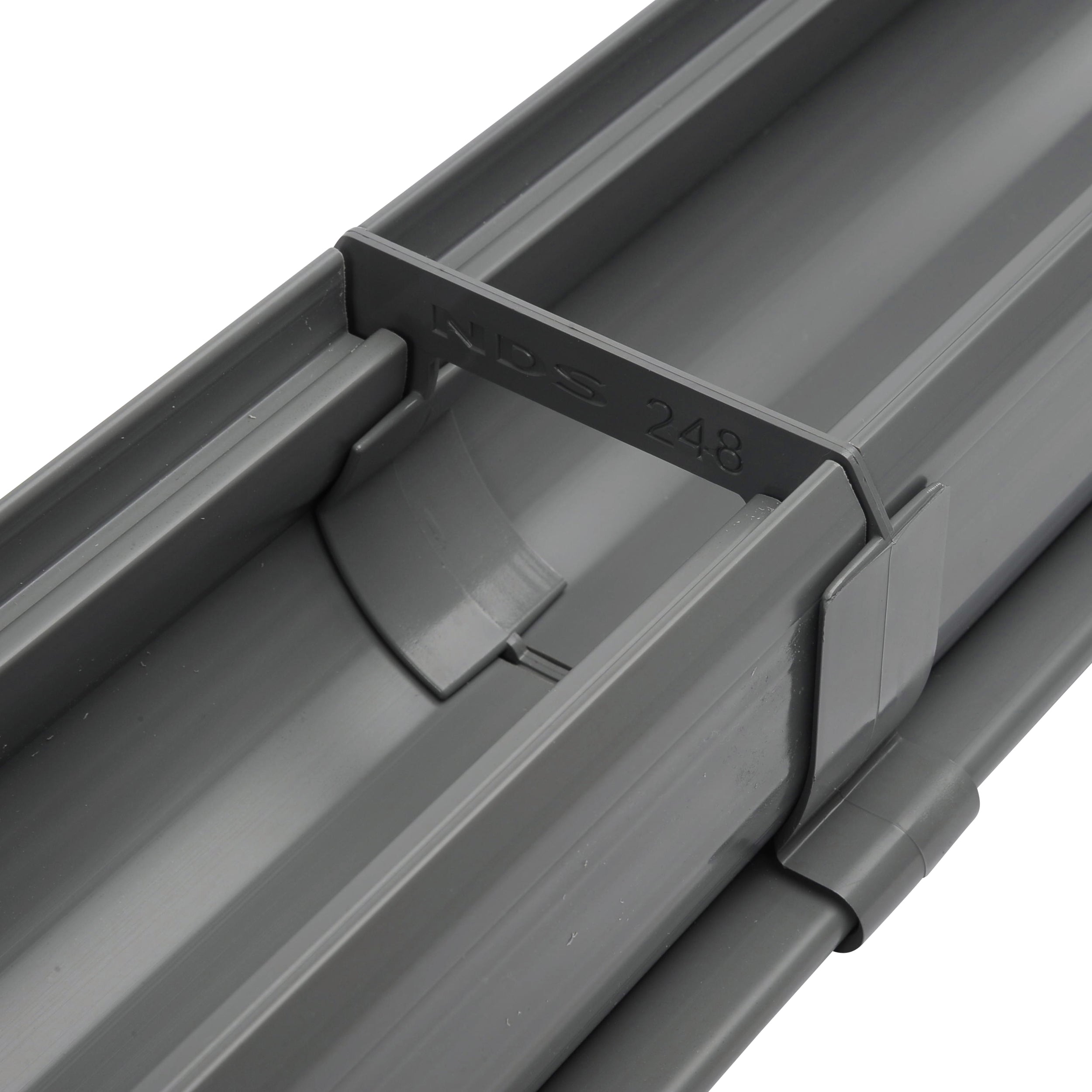

- Connect multiple channels using the interlocking system, if necessary.
- Secure the channels in place using concrete or landscaping spikes.
- Install the desired grate (sold separately) onto the channel.
- Pour concrete around the sides of the channel, leaving the top 1/8 inch below the grate surface for proper drainage.
- Allow the concrete to cure according to manufacturer's instructions.
- Test the system by running water through it to ensure proper flow and drainage.
The NDS 400-10 10' Spee-D Channel Drain offers a reliable and efficient solution for managing surface water, protecting your property from water damage and erosion. Its easy installation process and durable construction make it an excellent choice for both DIY enthusiasts and professional contractors.
