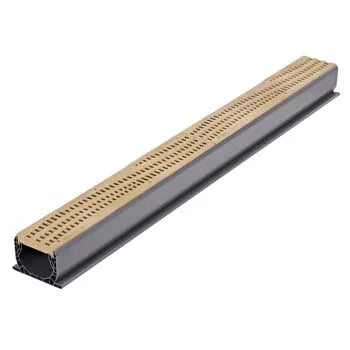

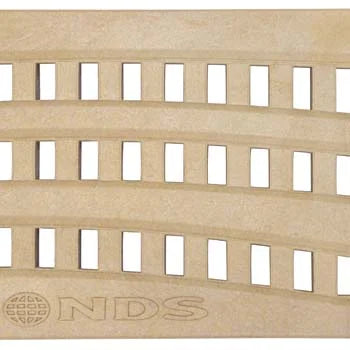

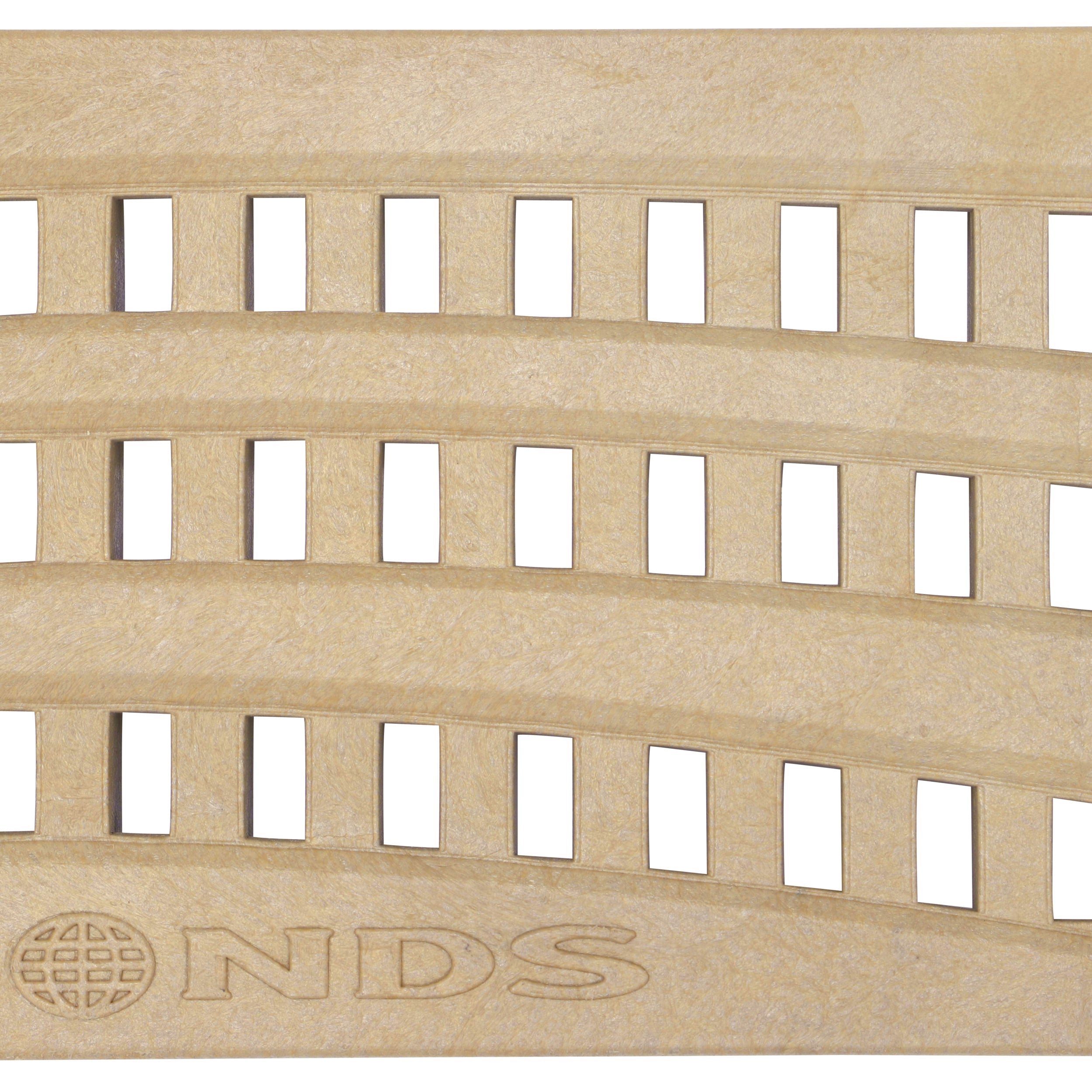

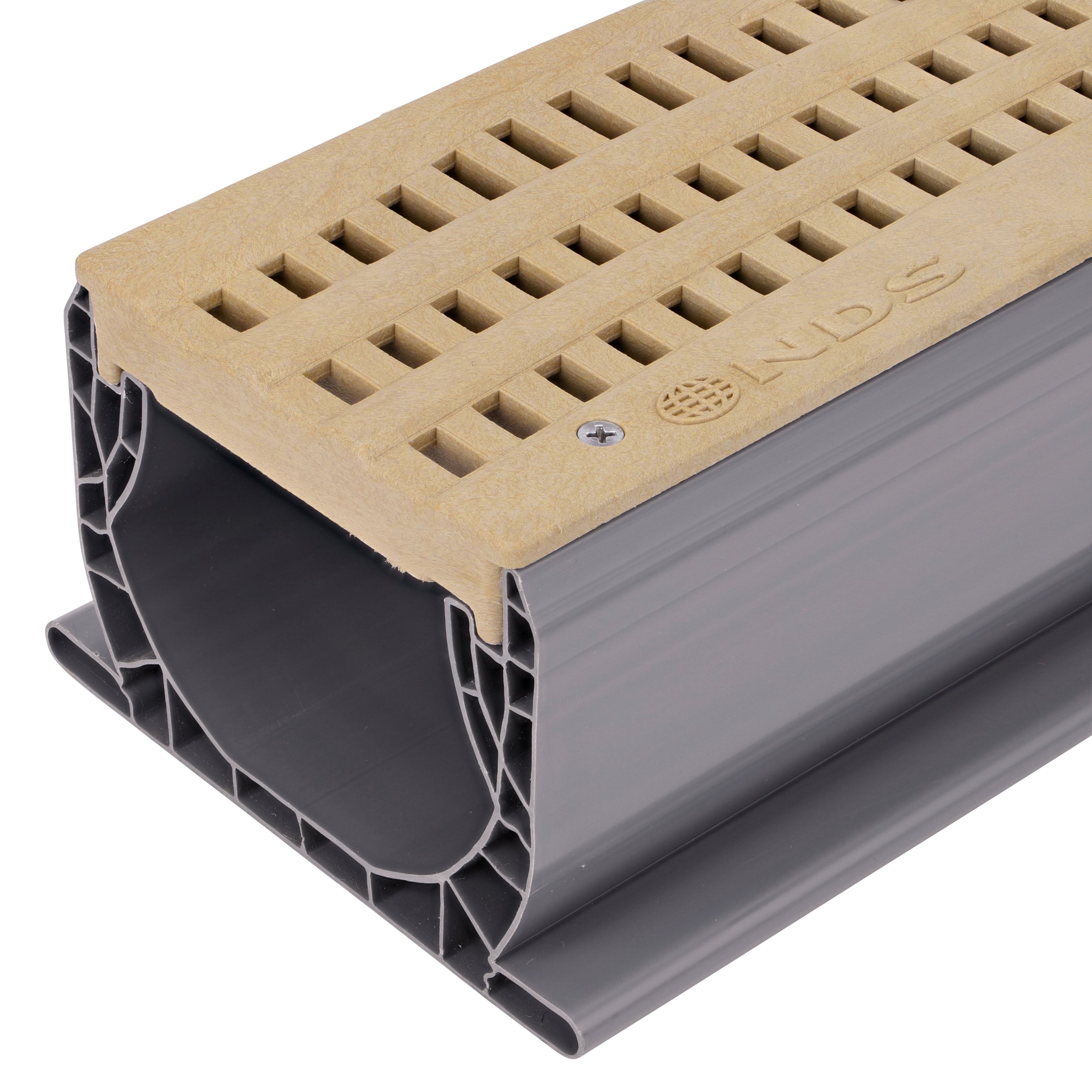

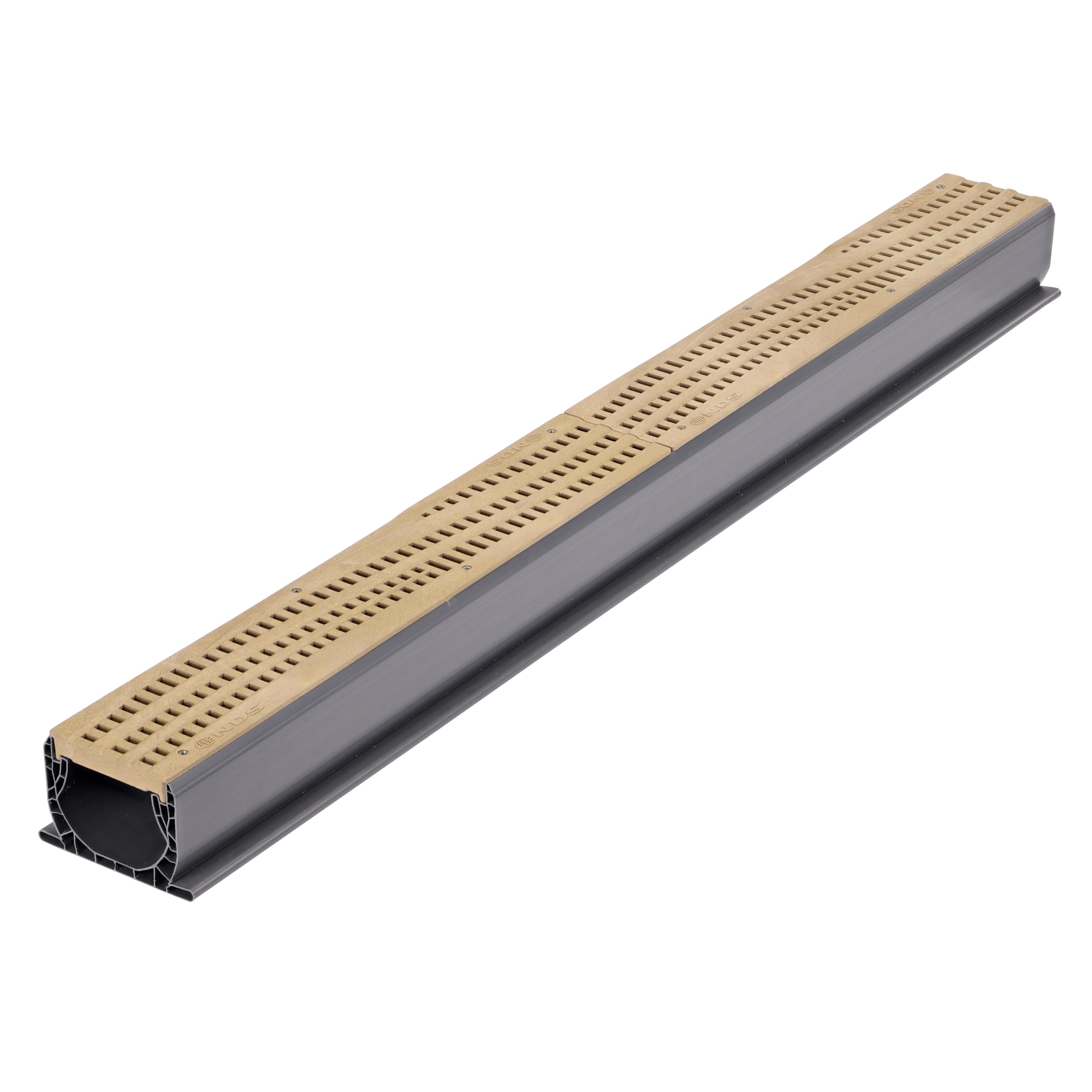

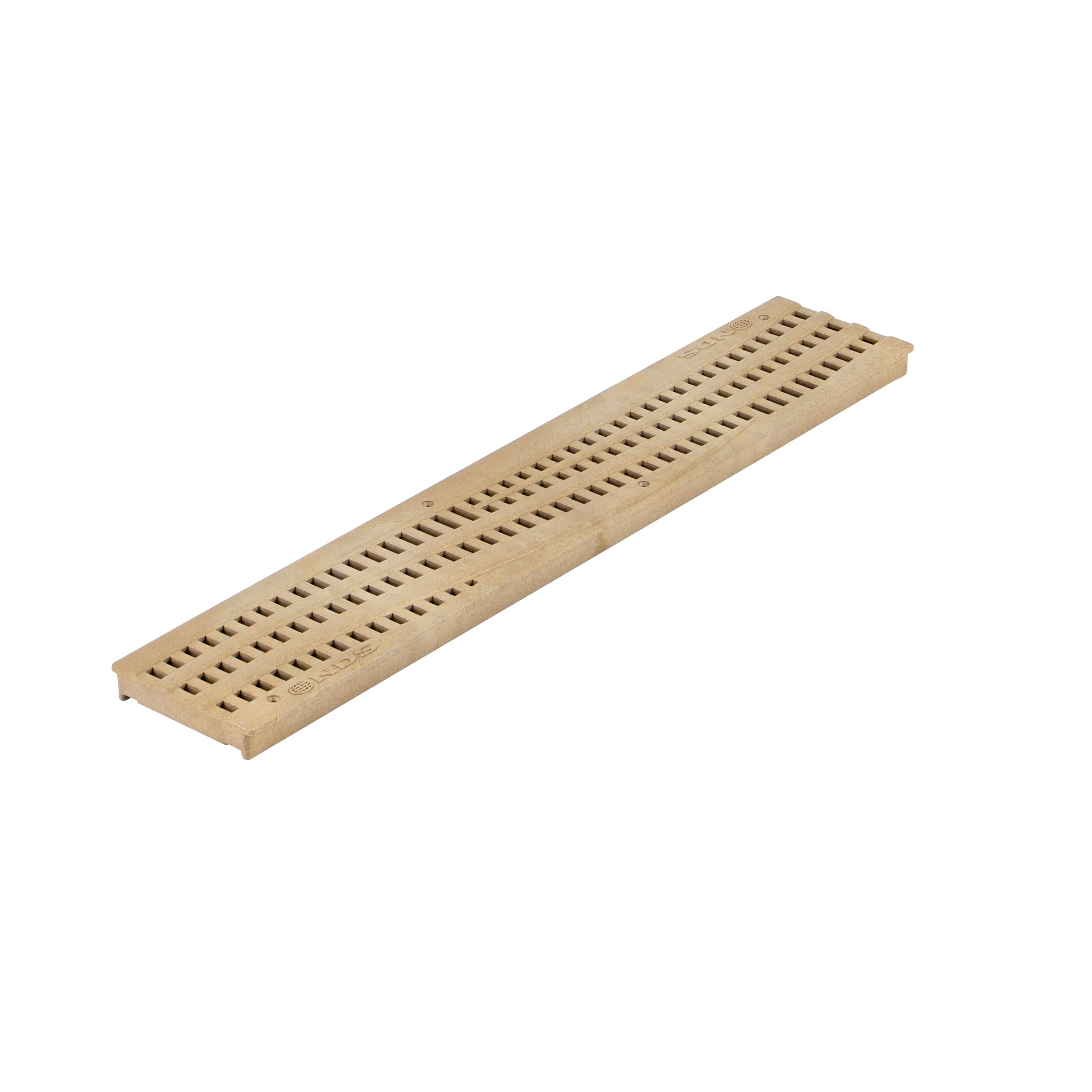

NDS 253S - 2FT Spee-D Channel Decorative Wave Grate - Sand

NDS 253S - Spee-D Channel Grate Decorative Wave - Sand

Colors: Black (#253), Green (#253GR), Sand (#253S)

Product Description: The NDS 253S Spee-D Channel Grate Decorative Wave is a stylish and functional drainage solution for residential and commercial applications. This decorative grate features an eye-catching wave pattern that adds a touch of elegance to any landscaping or hardscaping project. Designed to fit NDS Spee-D channel drains, this grate efficiently collects and diverts surface water, preventing flooding and erosion.

Key Features:

• Attractive wave pattern design
• Durable construction for long-lasting performance
• Compatible with NDS Spee-D channel drains
• Suitable for pedestrian traffic areas
• Easy installation and maintenance

Installation Instructions:

1. Ensure the Spee-D channel is properly installed and leveled.
2. Clean the channel of any debris or obstructions.
3. Align the grate with the channel, ensuring the wave pattern is oriented as desired.
4. Gently press the grate into place, making sure it sits flush with the channel edges.
5. For added security, use NDS grate locks (sold separately) to fasten the grate to the channel.

Product Specifications:

• Material: High-impact polypropylene
• Color: Sand
• Length: 24" inches
• Width: 4.42 inches
• Height: .925 inches
• Weight: 1.1 lbs (0.5 kg)
• Load class: Pedestrian traffic (up to 77 lbs/sq ft)
• UV-resistant: Yes
• Chemical-resistant: Yes

Compatibility:

• Fits NDS Spee-D channel drains (3", 4", and 5" widths)

Maintenance:

• Regularly remove debris from the grate surface to ensure optimal water flow. The grate can be easily lifted for cleaning of the channel beneath.
