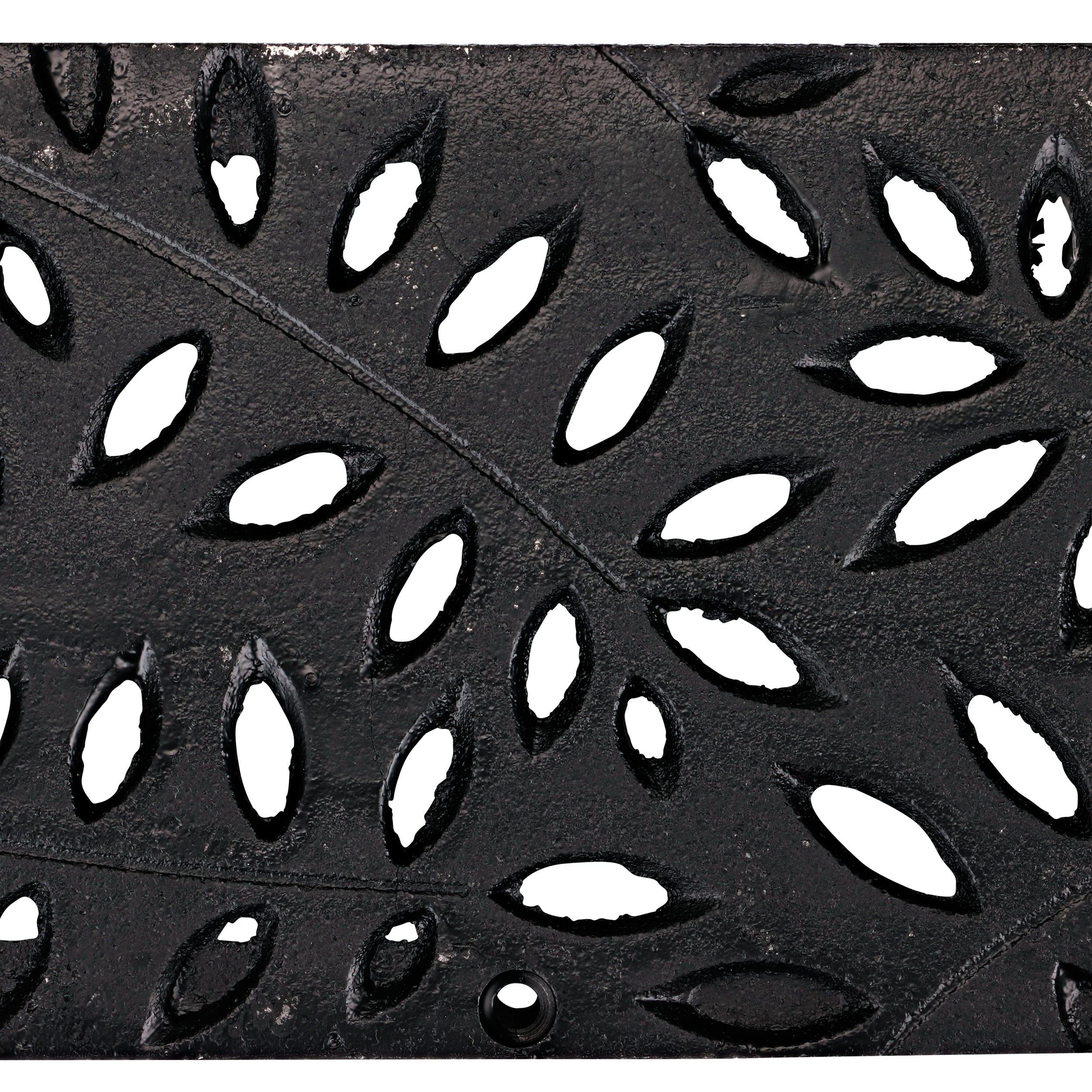

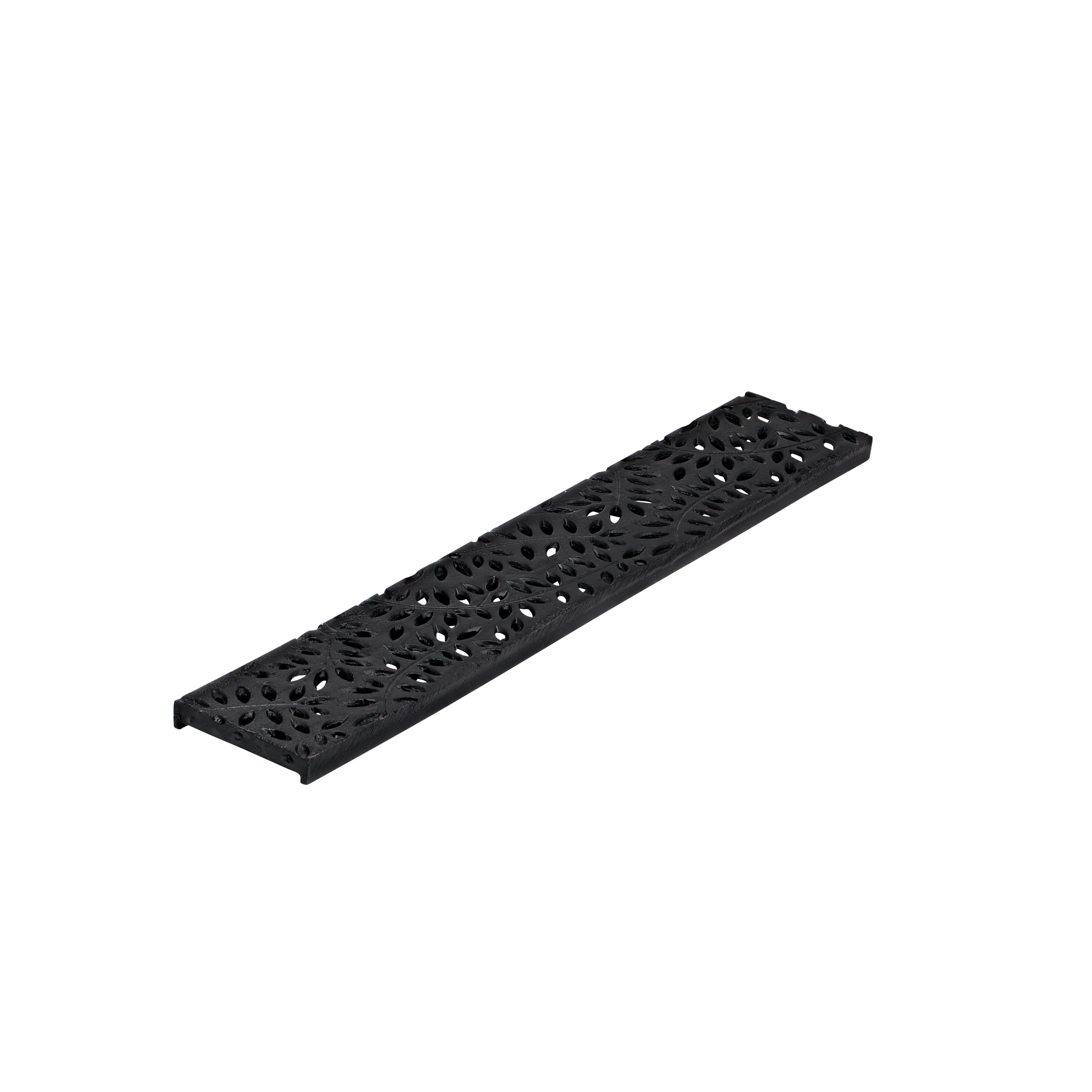

NDS 252CI 2FT Spee-D Channel Botanical Grate - Cast Iron

NDS 252CI - Spee-D Botanical Channel Grate - Cast Iron

Product Description: The NDS 252CI 2FT Spee-D Channel Botanical Grate is a high-quality, cast iron grate designed for efficient water drainage and aesthetic appeal in landscaping applications. This 2-foot long grate features an elegant botanical pattern that complements various outdoor settings while providing excellent functionality.

Key Features:

• Durable cast iron construction
• Attractive botanical design
• 2-foot length for versatile installation

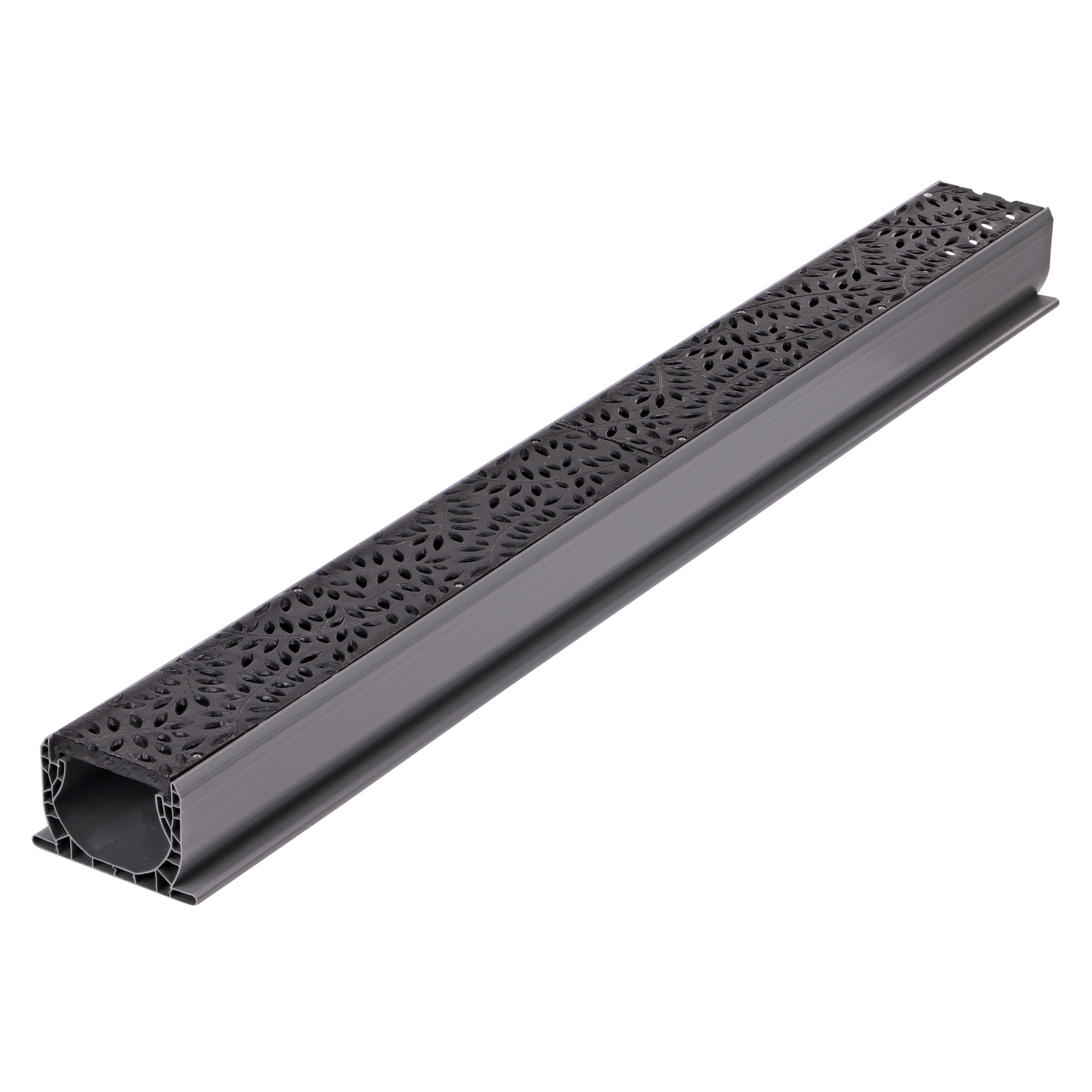

• Compatible with NDS Spee-D channel systems
• Ideal for residential and commercial landscaping projects

Installation Instructions:

1. Prepare the area by excavating a trench to the required depth and width for the Spee-D channel.
2. Install the Spee-D channel according to manufacturer guidelines.
3. Place the 252CI grate onto the channel, ensuring it sits flush and secure.
4. For multiple grates, align them end-to-end along the channel.
5. Secure the grate to the channel using appropriate fasteners if required.
6. Backfill and compact the surrounding area, ensuring proper drainage slope.

Product Specifications:

• Material: Cast Iron
• Length: 2 feet (24 inches)
• Width: 4.42 inches
• Height: .925
• Weight: 7.1 lbs
• Load Class: Class B rating [61-175 psi. , e.g. , pedestrian, light vehicle]
• Finish: Raw cast iron (may develop patina over time)
• Compatible with: NDS Spee-D Channel drainage systems
