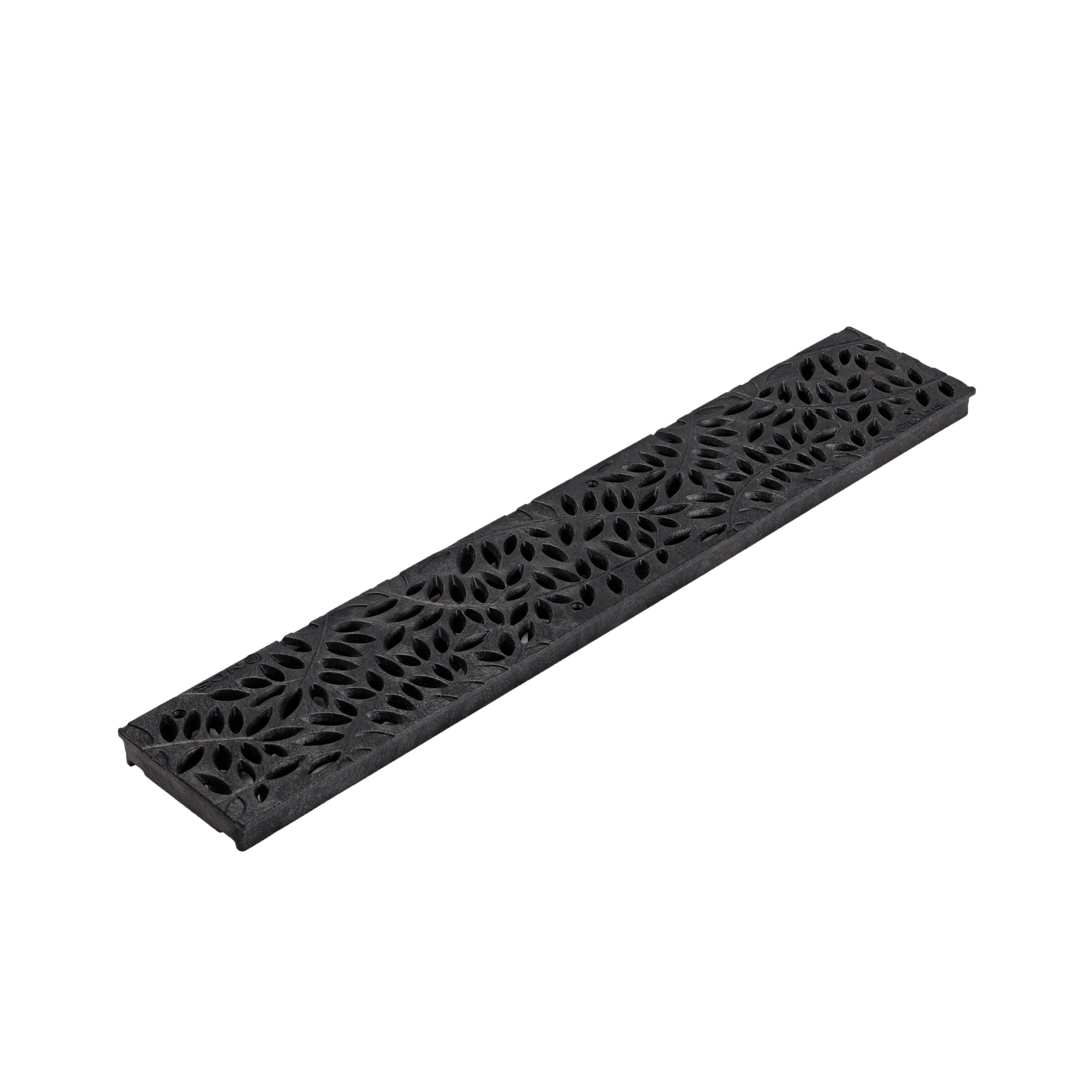

NDS 252 - 2FT Botanical Spee-D Channel Grate - Black

NDS 252 - Spee-D Botanical Channel Grate - Black

Colors: Gray (#252GY), Green (#252GR), Sand (#252S)

Product Description: The NDS 252 2FT Botanical Spee-D Channel Grate is a high-performance drainage solution designed for residential and light commercial applications. This attractive grate features a decorative botanical pattern that adds a touch of elegance to any landscape while providing efficient water management. Made from durable materials, it's built to withstand foot traffic and light vehicle loads.

Key Features:

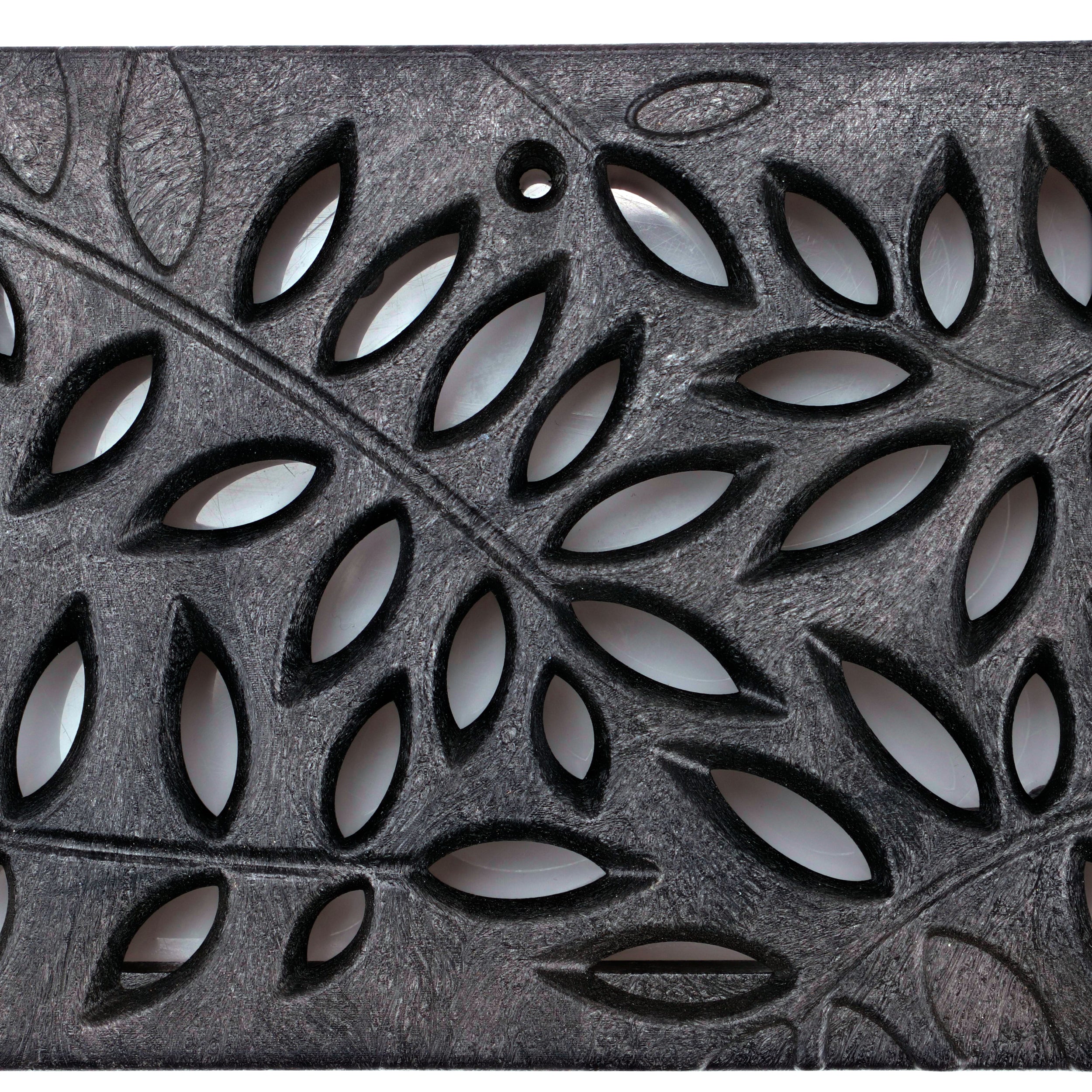

• Decorative botanical pattern
• 2-foot length for versatile installation

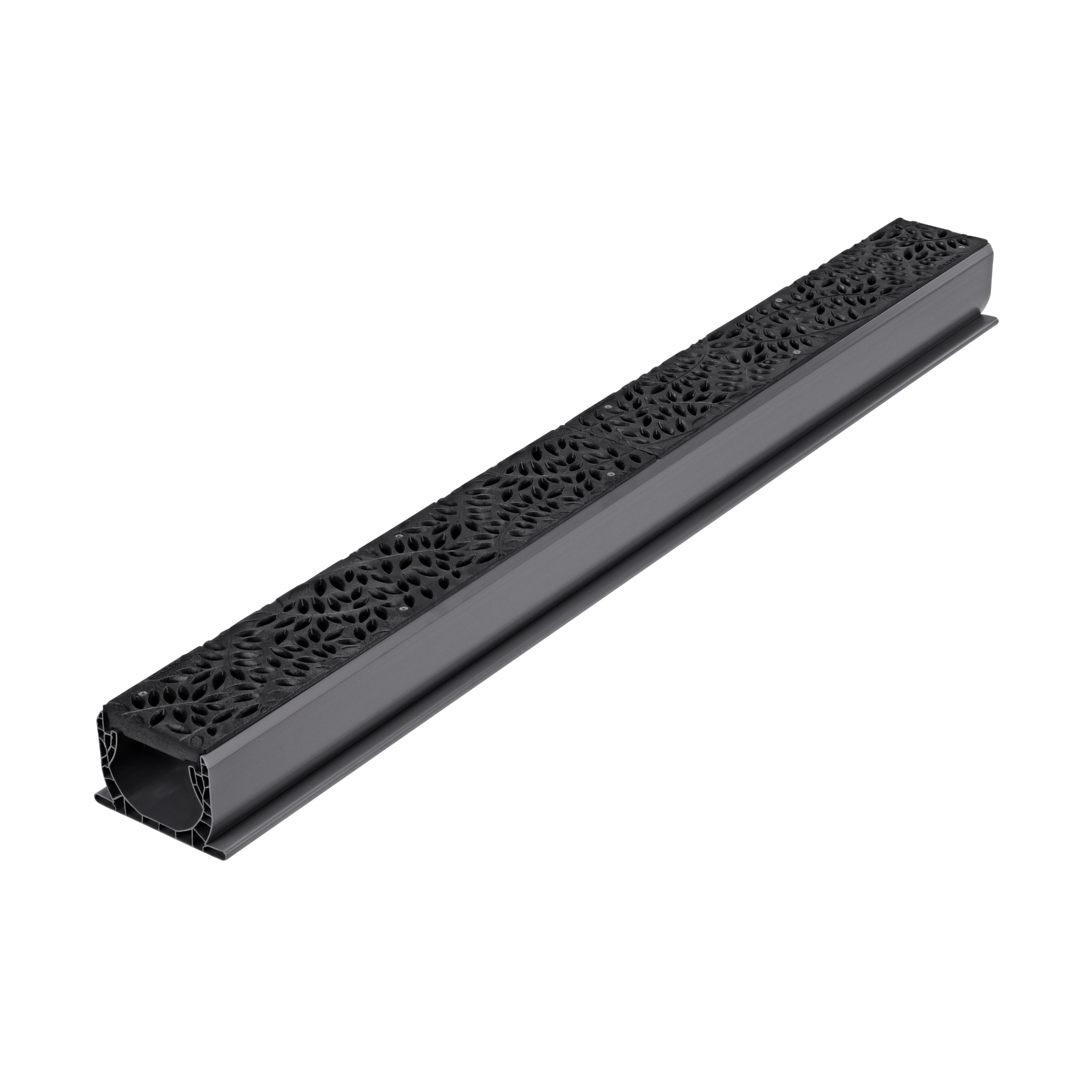

• Compatible with NDS Spee-D Channel drain bodies
• Suitable for walkways, patios, pool decks, and driveways
• UV-resistant for long-lasting performance

Installation Instructions:

1. Prepare the trench according to local building codes.
2. Install the Spee-D Channel drain body in the trench.
3. Ensure proper slope for water drainage (minimum 1/8" per foot).
4. Secure the channel with concrete or backfill material.

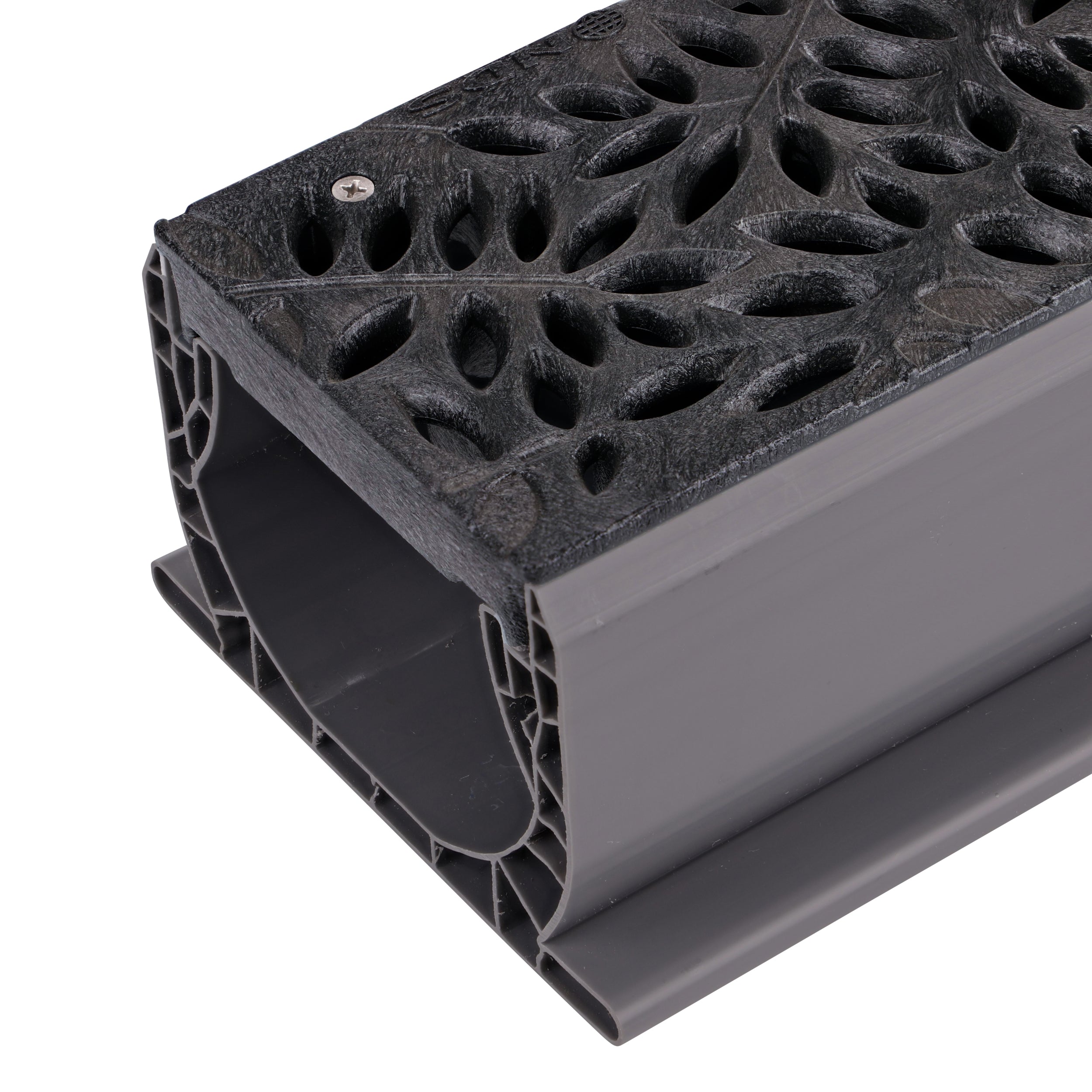

5. Snap the Botanical Spee-D Channel Grate onto the drain body.
6. Adjust surrounding surface material to be flush with the grate top.

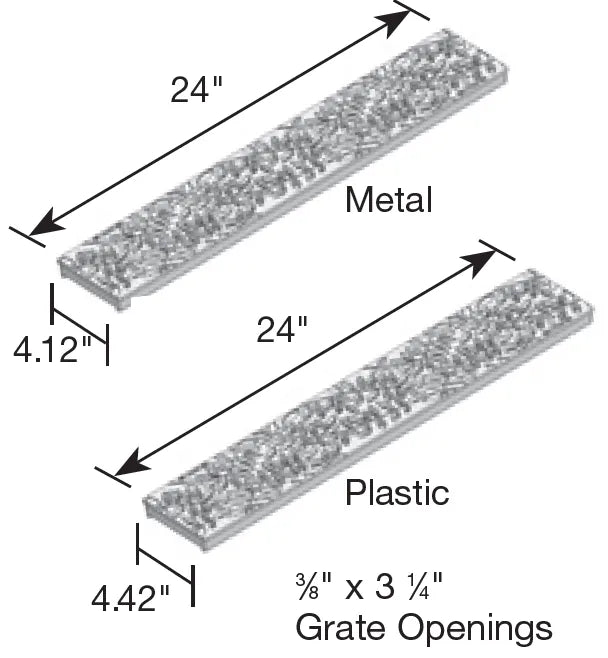

Product Specifications:

• Material: High-impact polypropylene
• Length: 2 feet (24 inches)
• Width: 4.42 inches
• Height: .925 inches
• Color: Black
• Load Class: Light duty (up to 35 psi)
• Flow Rate: Up to 11.2 GPM (gallons per minute)
• UV Resistance: Yes
• Chemical Resistance: Excellent
