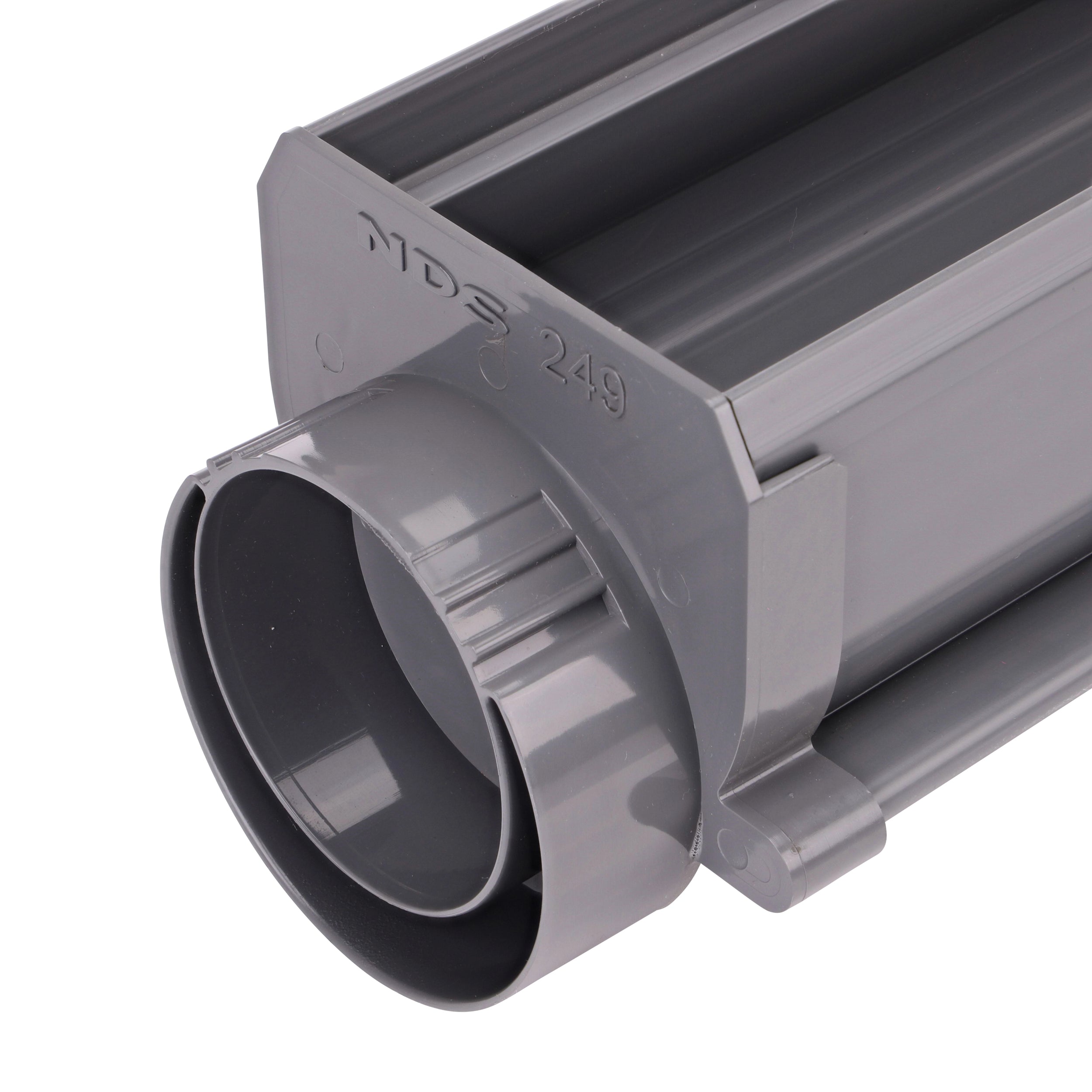

NDS 249 - Spee-D 3IN & 4IN Offset End Outlet - Gray

NDS 249 - Spee-D 3" & 4" Offset End Outlet

The NDS 249 Spee-D 3" & 4" Offset End Outlet is a versatile drainage solution designed for efficient water management in residential and commercial applications. This innovative product allows for quick and easy installation of drainage systems, offering both 3-inch and 4-inch outlet options to accommodate various pipe sizes.

Key Features:

• Dual-size compatibility (3" inch and 4" inch)
• Offset design for improved flow
• Durable, high-impact plastic construction
• UV-resistant for long-lasting performance
• Compatible with NDS Spee-D Channel Drain Systems

Installation Instructions:

1. Determine the desired location and orientation of the outlet.
2. Cut an appropriate-sized hole in the channel drain wall using a hole saw or utility knife.
3. Insert the outlet into the hole, ensuring a snug fit.
4. Secure the outlet using screws or adhesive, if necessary.
5. Connect the appropriate size pipe (3-inch or 4-inch) to the outlet.
6. Test the connection for proper fit and water flow.

Product Specifications:

• Material: polyvinyl chloride (PVC) treated with UV inhibitors
• Available outlet sizes: 3 inches and 4 inches
• Color: Gray
• UV resistant
• Chemical resistance: Resistant to common chemicals and fertilizers

The NDS 249 Spee-D 3IN & 4IN Offset End Outlet offers a reliable and efficient solution for your drainage needs, combining ease of installation with superior performance
