NDS 248 - Spee-D Channel Coupling - Gray

NDS 248 - Spee-D Channel Coupling

NDS 248 Spee-D Channel Coupling

The NDS 248 Spee-D Channel Coupling is an innovative solution for quick and efficient drainage channel connections. This coupling is designed to save time and labor during installation while ensuring a secure and watertight seal between channel sections.

Key Features:

• Fast and easy installation
• Watertight seal
• Durable construction
• Compatible with NDS Spee-D Channel Drains Systems

Installation Instructions:

1. Clean the ends of the channel sections to be connected.
2. Align the channel sections, ensuring they are level and properly positioned.

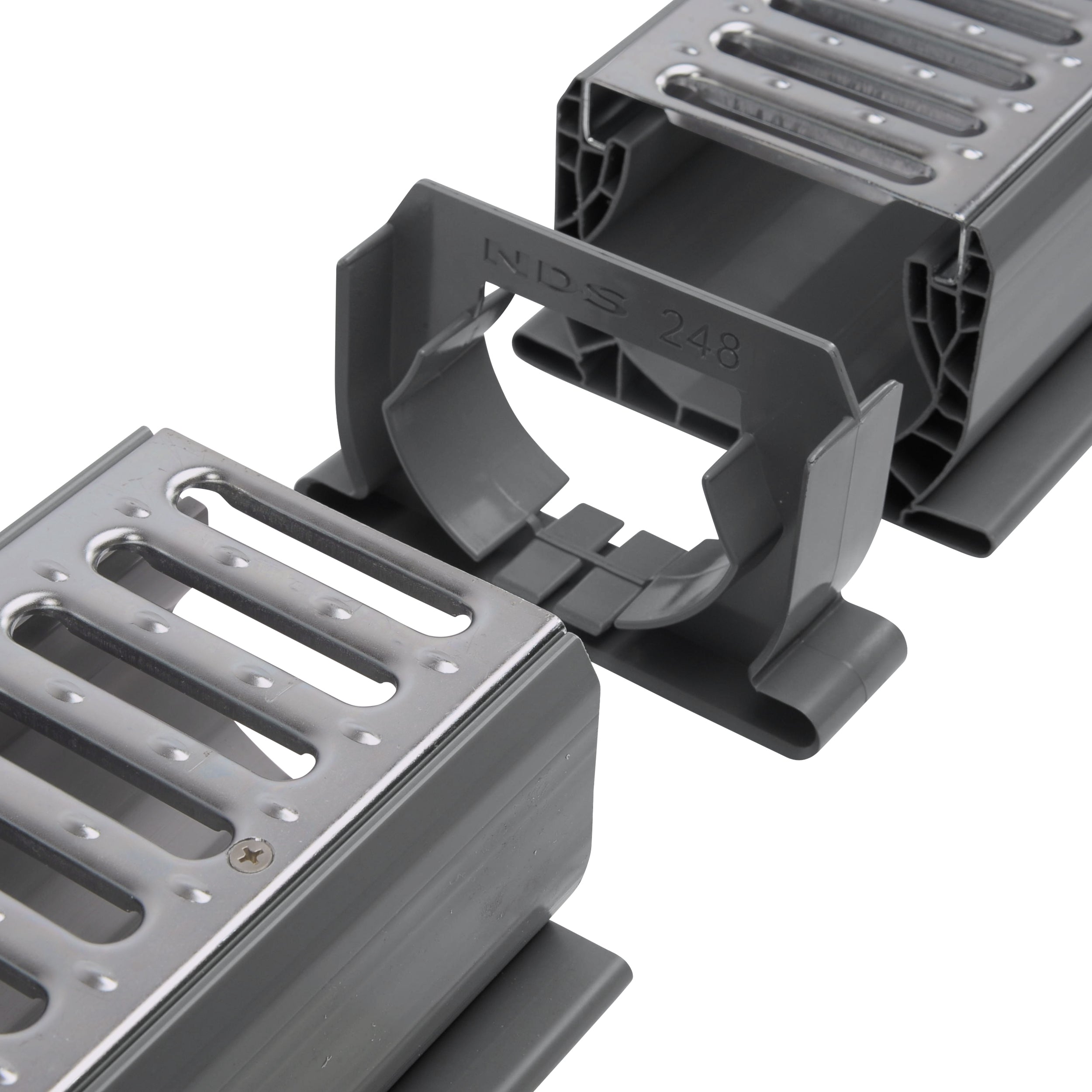

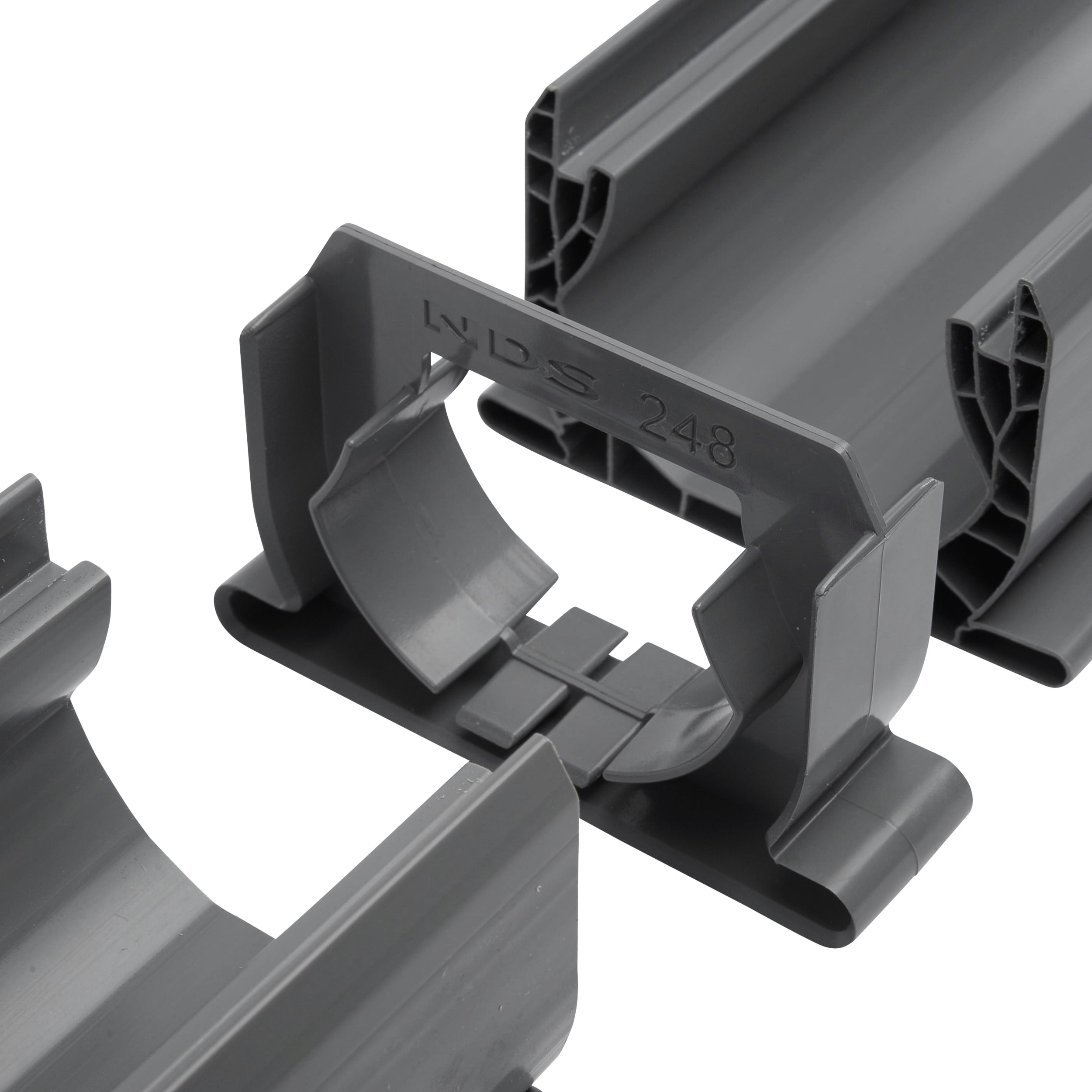

3. Place the Spee-D Channel Coupling over the joint between the two sections.
4. Press down firmly on the coupling until it snaps into place.

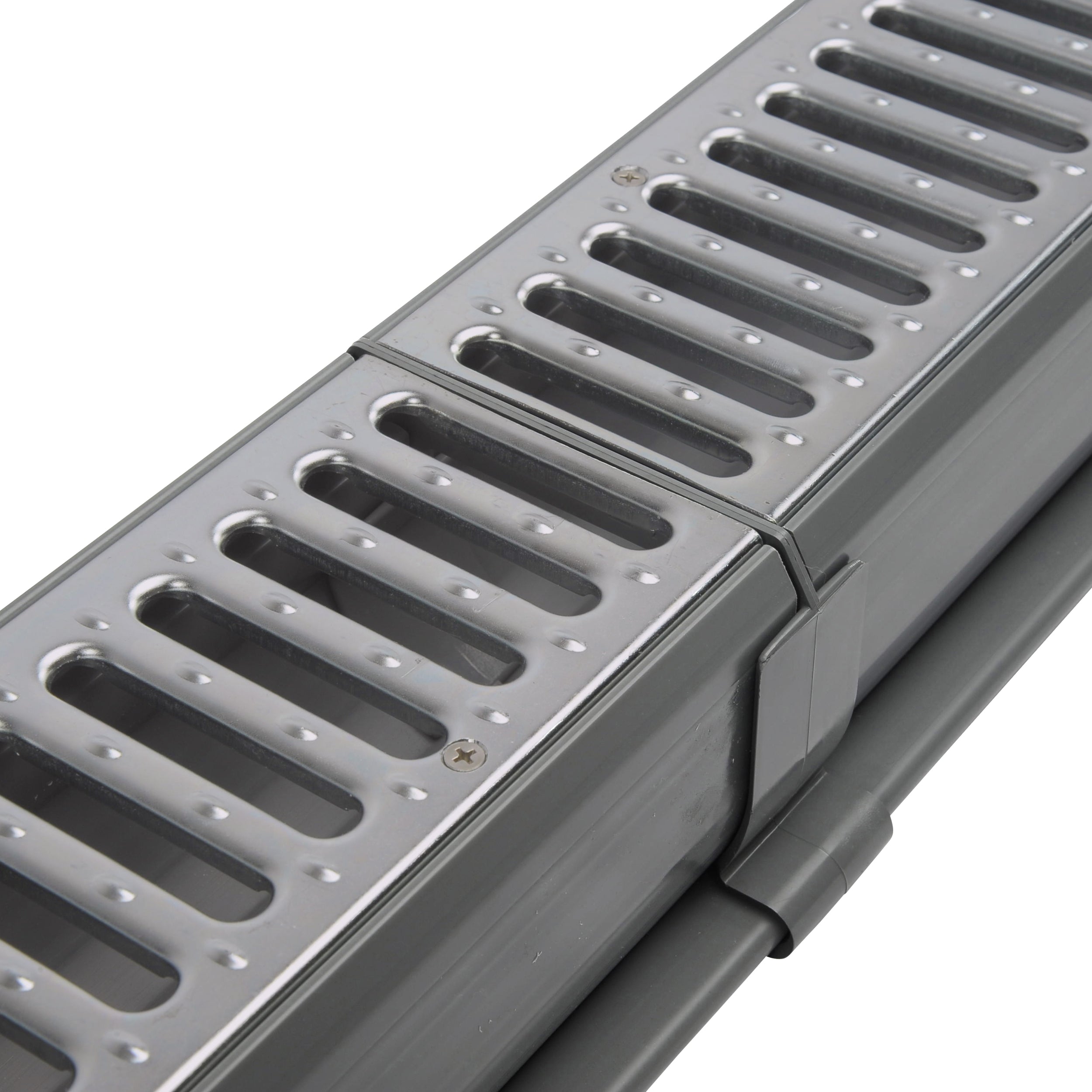

5. Check that the coupling is securely fastened and flush with the channel surface.

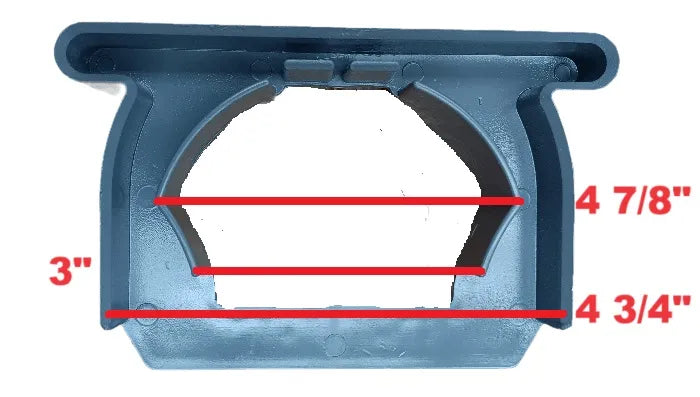

Product Specifications:

• Material: Polyvinyl chloride (PVC) with UV inhibitors
• Color: Grey
• Length: 6 inches (15.24 cm)
• Width: Fits standard 4-inch (10.16 cm) wide channels
• Weight: 0.25 lbs (113 g)
• Temperature range: -40°F to 180°F (-40°C to 82°C)
• Chemical resistance: Resistant to most common chemicals and UV radiation

The NDS 248 Spee-D Channel Coupling is the perfect choice for contractors and DIY enthusiasts looking to streamline their drainage system installations. Its user-friendly design and robust construction make it an essential component for any channel drain project.
