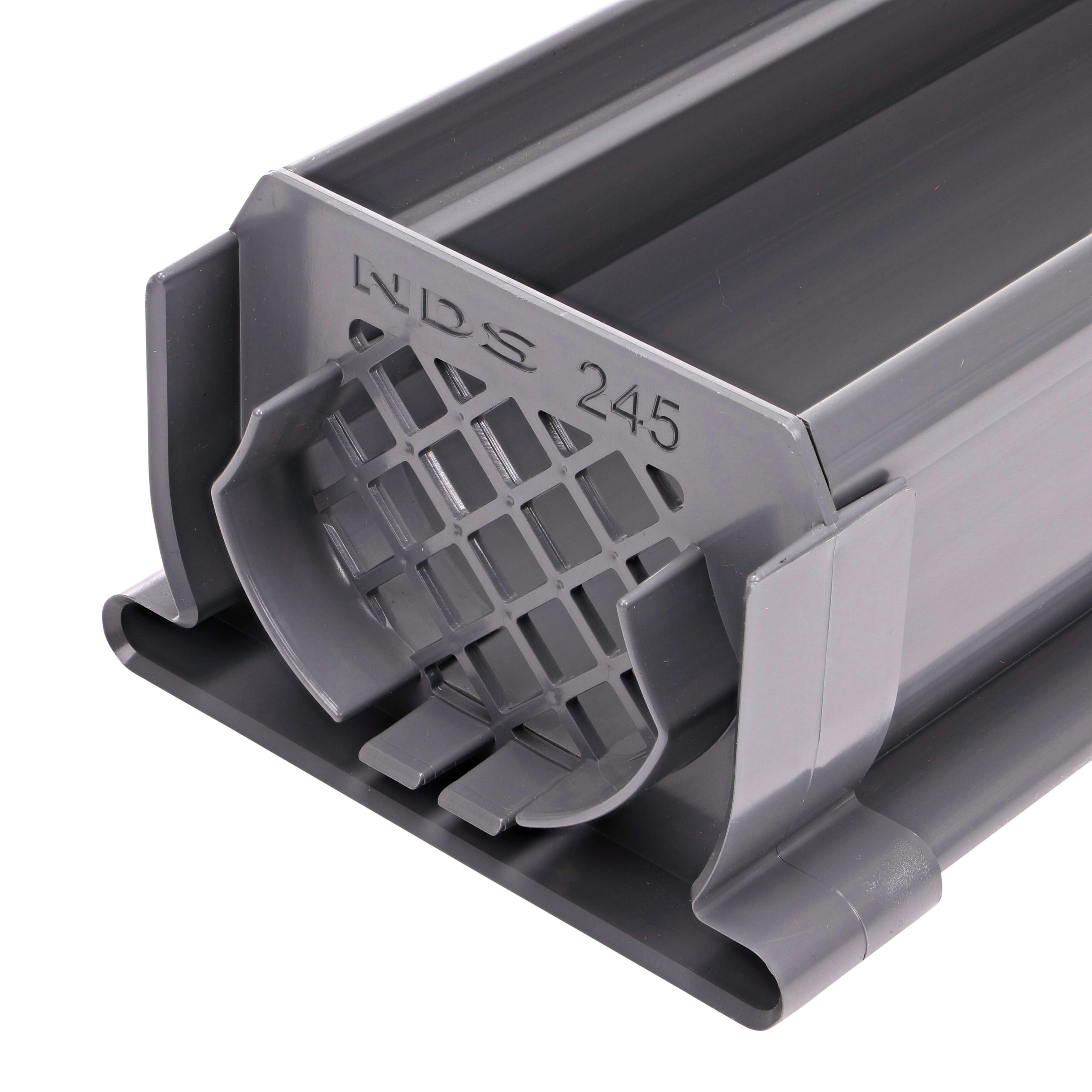

NDS 245 - Spee-D Channel Drain Strainer Coupling - Gray

NDS 245 - Spee-D Channel Drian Strainer Coupling

NDS 245 Spee-D Channel Drain Strainer Coupling

The NDS 245 Spee-D Channel Drain Strainer Coupling is an innovative solution for quick and efficient drainage system installations. This versatile coupling combines a channel drain, strainer, and pipe connection in one easy-to-install unit, saving time and labor costs. Ideal for residential and commercial applications, the Spee-D Channel Drain Strainer Coupling ensures reliable water flow while preventing debris from entering your drainage system.

Key Features:

• All-in-one design: channel drain, strainer, and pipe connection
• Quick and easy installation
• Durable construction for long-lasting performance
• Compatible with various pipe materials
• Removable strainer for easy cleaning and maintenance

Installation Instructions:

1. Excavate the area where the coupling will be installed, ensuring proper slope for drainage.
2. Place the Spee-D Channel Drain Strainer Coupling in the desired location.
3. Connect the drainage pipe to the coupling's outlet.
4. Secure the coupling in place using concrete or other suitable material.
5. Adjust the height of the strainer to match the finished grade.
6. Install surrounding pavers, concrete, or other surface materials.
7. Remove the protective cover from the strainer.

Product Specifications:

• Material: Polyvinyl Chloride (PVC) treated with UV inhibitors
• Color: Gray
• Compatible with NDS Spee-D Channel Drain

• Flow rate: 23.70 to 59.04 GPM per linear foot
• Load rating: Suitable for pedestrian traffic
• UV resistant
• Chemical resistant
• Temperature range: -40°F to 180°F (-40°C to 82°C)
