NDS 2381 - 7" Inch Spee-D Channel Drain Fabricated 90° Degree Corner and Grate

NDS 2381 - Spee-D Channel Fabricated 90°-Degree Corner And Grate

The NDS 2381 7" inch Spee-D Channel Drain Fabricated 90° Degree Corner and Grate is a high-quality drainage solution designed for efficient water management in residential and commercial applications. This pre-fabricated corner piece seamlessly connects two 7"-inch Spee-D channels at a 90°-degree angle, ensuring smooth water flow and easy installation.

Key Features:

• 90°-degree corner design for versatile drainage layouts
• Compatible with 7"-inch Spee-D channel drain systems
• Durable construction for long-lasting performance
• Includes a removable grate for easy maintenance
• Suitable for various applications, including driveways, patios, and landscaping

Installation Instructions:

1. Excavate the area where the corner piece will be installed, ensuring proper depth and slope.
2. Place a layer of gravel or crushed stone as a base for stability and drainage.
3. Position the corner piece, aligning it with the connecting Spee-D channels.
4. Secure the corner piece to the channels using the manufacturer-recommended connectors.
5. Backfill around the installed corner piece with concrete, ensuring it's level and properly supported.
6. Allow the concrete to cure according to local building codes.
7. Install the grate by snapping it into place on the corner piece.

Product Specifications:

• Material: PVC (Channel Drain) High-density polyethylene HDPE (Grate)

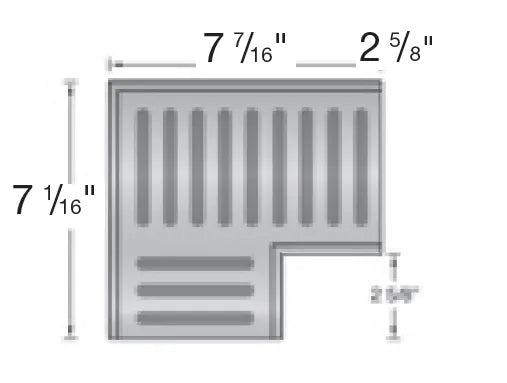

• Dimensions: 7 1/16" width x 7 1/16" length x 90°-degree angle
• Grate material: HDPE plastic (standard) or cast iron (optional upgrade)
• Load class: Suitable for pedestrian and light vehicle traffic
• Chemical resistance: Resistant to most common chemicals and UV radiation
• Color: Gray
• Compatibility: Designed for use with NDS Spee-D channel drain systems

This NDS 2381 "inch Spee-D Channel Fabricated 90° Degree Corner and Grate offers a reliable solution for creating efficient drainage systems in various settings. Its pre-fabricated design simplifies installation while ensuring optimal performance and durability.
