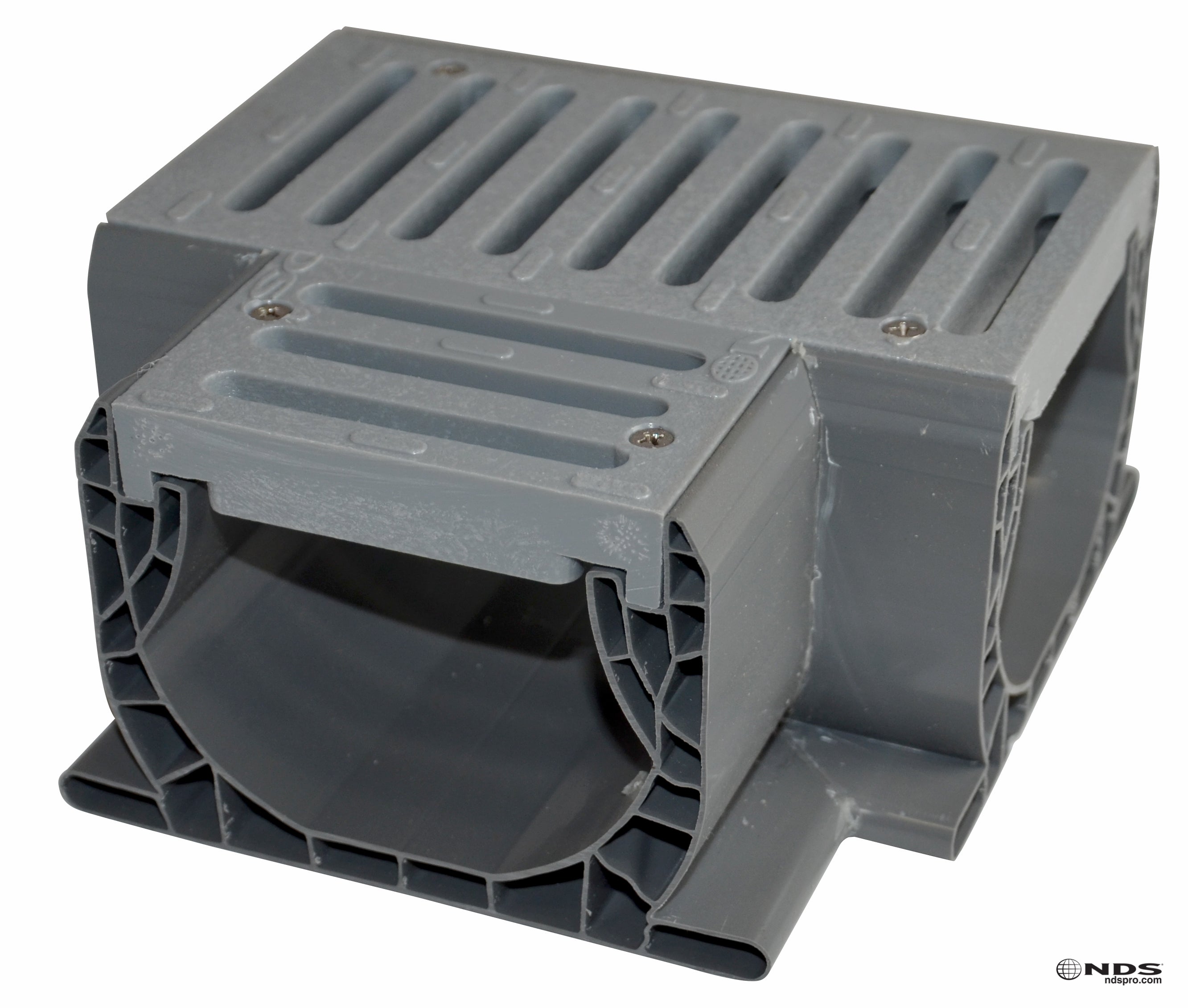

NDS 2371 - 7" Inch Spee-D Channel Drain Fabricated Tee with Grate - Gray

NDS 2371 - Spee-D Channel Drain Fabricated Tee With Grate

The NDS 2371 7" inch Spee-D Channel Drain Fabricated Tee with Grate is a high-quality drainage solution designed for efficient water management in residential, commercial, and industrial applications. This versatile tee fitting allows for the creation of T-shaped junctions in your channel drain system, providing flexibility in design and layout.

Key Features:

• 7"-inch width for optimal water flow
• Durable construction for long-lasting performance
• Pre-installed grate for easy installation
• Compatible with NDS Spee-D channel drain systems
• Suitable for pedestrian and light vehicle traffic

Installation Instructions:

1. Excavate the area to accommodate the channel drain system and tee fitting.
2. Prepare a level base using compacted gravel or concrete.
3. Position the tee fitting at the desired junction point.
4. Connect the adjoining channel sections to the tee fitting.
5. Ensure proper alignment and slope for effective drainage.
6. Secure the tee fitting and channel sections in place.
7. Pour concrete around the system, leaving the top edge slightly below the final surface level.
8. Install the grate and finish the surrounding surface.

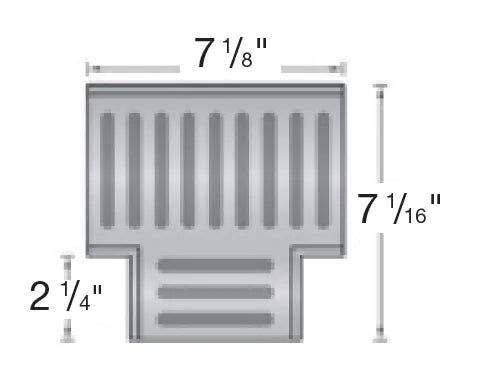

Product Specifications:

• Material: PVC (Channel Drain) High-density polyethylene HDPE (Grate)
• Load class: Suitable for pedestrian and light vehicle traffic
• Chemical resistance: Resistant to most common chemicals and pollutants
• UV resistance: Protected against UV degradation
• Grate material: HDPE plastic (standard) or cast iron (optional upgrade)
• Compatible accessories: Spee-D Channel Drain Systems
