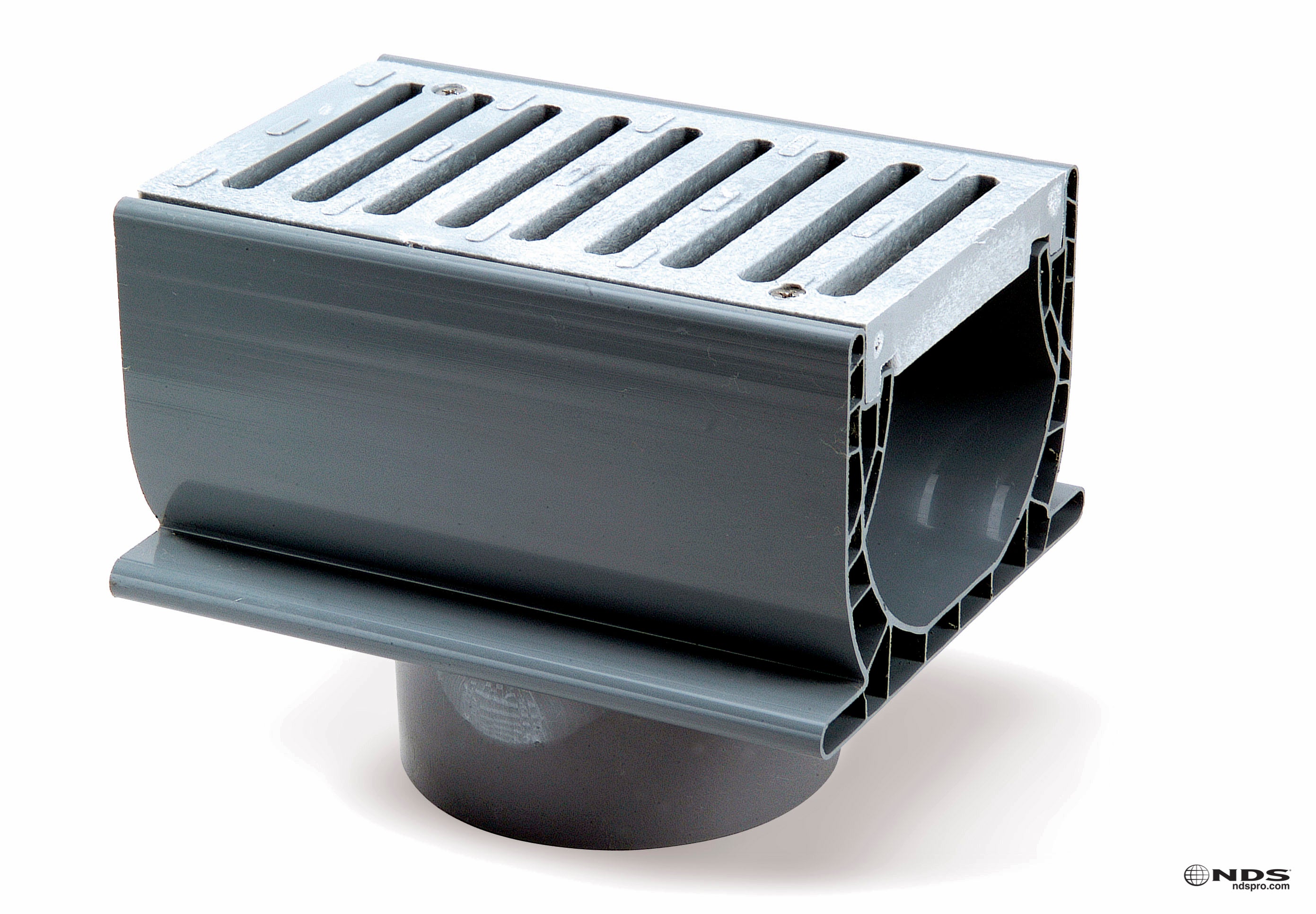

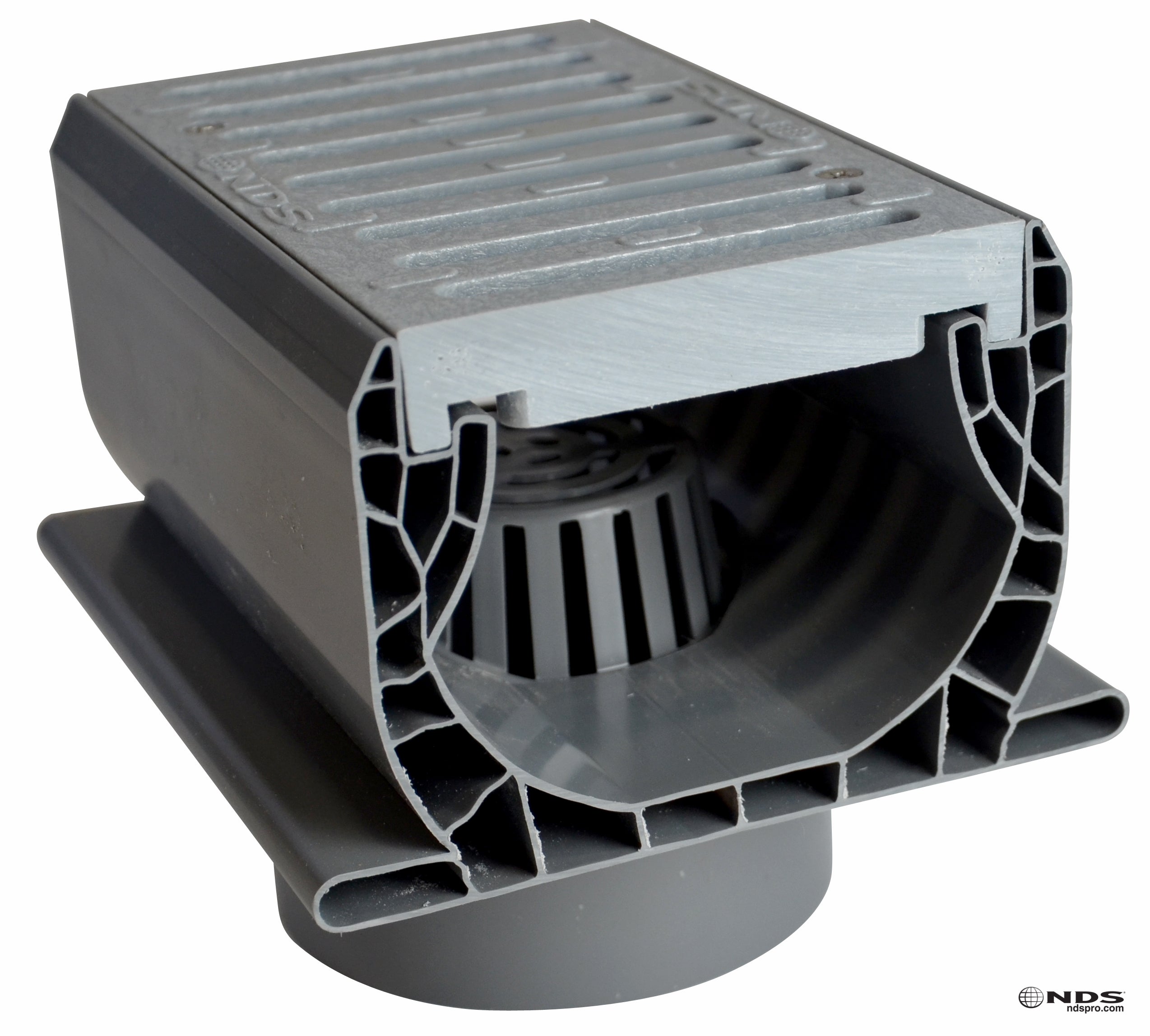

NDS 2351 - 7" Inch Spee-D Fabricated Drain with 4" Inch Bottom Outlet

NDS 2351 - 7" Inch Spee-D Fabricated Drain with Bottom Outlet

The NDS 2351 is a high-quality 7"-inch Spee-D Fabricated Drain designed for efficient water drainage in various applications. Featuring a 4-inch bottom outlet, this drain provides superior performance and easy installation for residential and commercial drainage systems.

Key Features:

• 7"-inch round grate for optimal water intake
• 4"-inch bottom outlet for rapid water discharge
• Durable construction for long-lasting performance
• Compatible with various pipe materials
• Ideal for patios, driveways, and landscaped areas

Installation Instructions:

1. Excavate the area where the drain will be installed, ensuring proper slope for water flow.
2. Place a layer of gravel at the bottom of the excavation for improved drainage.
3. Position the drain body, ensuring it's level and at the desired height.
4. Connect the 4"-inch outlet to your drainage pipe system.
5. Backfill around the drain body with gravel or soil, compacting as you go.
6. Install the grate securely onto the drain body.
7. Finish the surrounding area with your desired surface material.

Product Specifications:

• Material: PVC (Channel Drain) HDPE (Drain Grate)
• Grate Diameter: 7" inches (178 mm)
• Outlet Size: 4" inches (102 mm)
• Outlet Type: Bottom
• Flow Rate: Up to 41 GPM (gallons per minute)
• Load Rating: Light duty (pedestrian traffic)
• Color: Gray (grate and body)
• Compatible Pipe Materials: PVC, corrugated, sewer & drain
