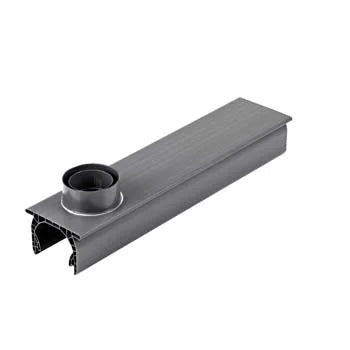

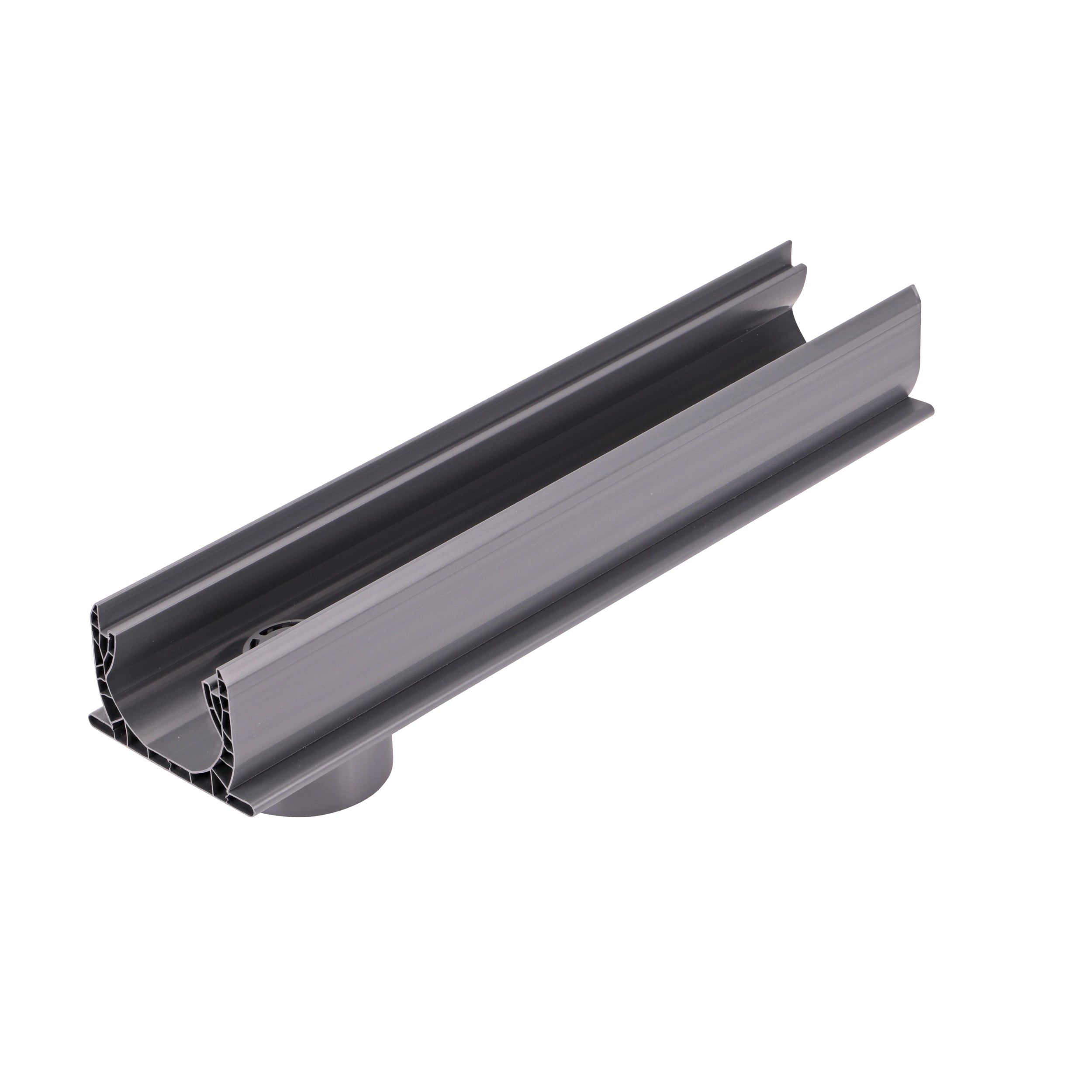

NDS 234 - 2FT Spee-D Channel Fabricated 4" inch Bottom Outlet

NDS 234 - 2' Spee-D Channel Fabricated 4" Bottom Outlet

The NDS 234 2FT Spee-D Channel Fabricated 4" inch Bottom Outlet is a high-quality drainage solution designed for efficient water management in residential and commercial applications. This pre-fabricated channel system features a 4-inch bottom outlet for optimal water flow and easy connection to existing drainage systems.

Key Features:

• 2'-foot length for versatile installation
• 4"-inch bottom outlet for superior drainage capacity
• Durable construction for long-lasting performance
• Compatible with various grate options (sold separately)
• Easy to install and maintain

Installation Instructions:

1. Excavate a trench slightly wider than the channel and deep enough to accommodate the channel height plus 4 inches for a concrete base.
2. Pour a 4-inch concrete base and allow it to set.
3. Place the channel on the concrete base, ensuring it's level and aligned properly.
4. Connect the 4-inch bottom outlet to your drainage pipe system.
5. Secure the channel in place with concrete on both sides, leaving the top 1/8" inch below the finished grade.
6. Install your chosen grate (sold separately) on top of the channel.
7. Finish the surrounding area with your desired surface material.

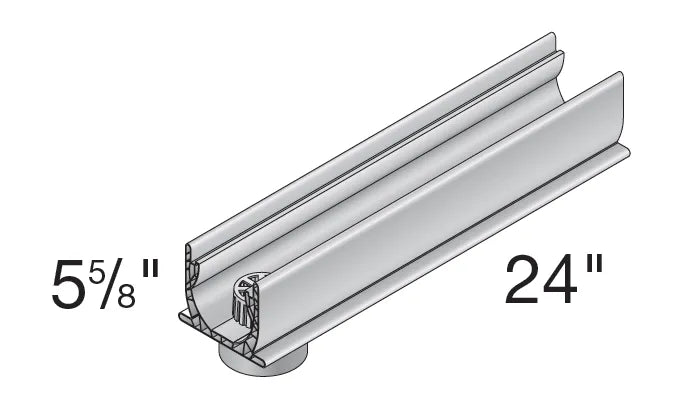

Product Specifications:

• Material: Polyvinyl Chloride with UV inhibitors
• Length: 2' feet (24 inches)
• Width: 5.4" inches (nominal)
• Height: 9.5" inches (including outlet)
• Bottom Outlet Diameter: 4 inches
• Load Class: Residential and light commercial (when used with appropriate grate)
• Chemical Resistance: Excellent
• UV Resistance: Yes
• Freeze/Thaw Cycle Resistance: Yes
• Compatible Grate Types: Various (check NDS catalog for options)
