NDS 2301 - Spee-D 7" Inch Fabricated Channel Drain 45° Degree Elbow with Grate - Gray

NDS 2301 - Spee-D 7" Inch Fabricated Channel Drain Fabricated 45°-Degree Elbow And Grate

The NDS 2301 7" inch Fabricated Spee-D Channel 45° Degree Elbow with Grate is a high-quality drainage solution designed for efficient water management in residential and commercial applications. This preformed elbow allows for smooth directional changes in your drainage system, ensuring optimal water flow and reducing the risk of clogs or backups.

Key Features:

• 45 -degree angle for versatile drainage configurations
• 7"-inch width for substantial water capacity
• Durable fabricated construction
• Includes a removable grate for easy maintenance
• Compatible with NDS Spee-D Channel systems

Installation Instructions:

1. Excavate the area where the elbow will be installed, ensuring proper depth and width.
2. Prepare a level base using crushed stone or gravel.
3. Place the elbow in the desired position, ensuring it aligns with connecting channel sections.
4. Connect the elbow to adjacent channel sections using NDS connectors or adhesive.
5. Backfill around the elbow, compacting the soil to prevent settling.
6. Install the grate by snapping it into place.
7. Complete the installation by grading the surrounding area to direct water flow into the channel system.

Product Specifications:

• Material: High-density polyethylene (HDPE)

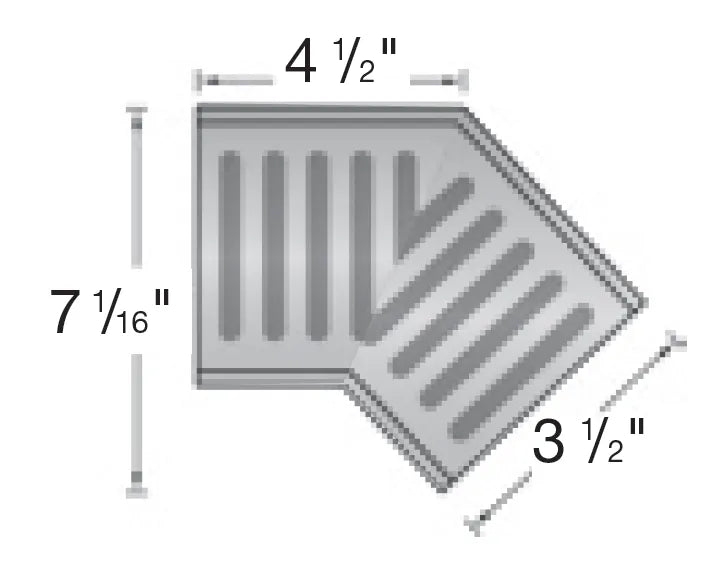

• Dimensions: 7" width x 45-degree angle
• Load class: Light duty (suitable for pedestrian and light vehicle traffic)
• Color: Black body with gray grate (other grate colors may be available)
• Chemical resistance: Excellent resistance to common chemicals and UV radiation
• Temperature range: -40°F to 140°F (-40°C to 60°C)
• Compatibility: Fits NDS 7" Spee-D Channel systems

Product and Technical Information

Technical Specifications - NDS Spee-D Channel With Bottom Outlet
Technical Specifications - NDS Spee-D Channel Drain Accessories

Installation Instructions - NDS Channel Drain
Installation Instructions - NDS Spee-D Channel Drain End Outlet

Installation Instructions - NDS Spee-D Channel Drain Bottom Outlet

Installation Instructions - NDS Spee-D Channel Drain Typical Pedestrian Traffic
Installation Instructions - NDS Spee-D Channel Drain Typical Landscape Traffic

Installation Instructions - NDS Spee-D Channel Drain Light Vehicular Traffic Pavers
Installation Instructions - NDS Spee-D Channel Drain Typical Light Vehicular Traffic
