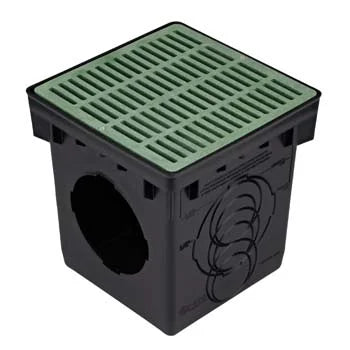

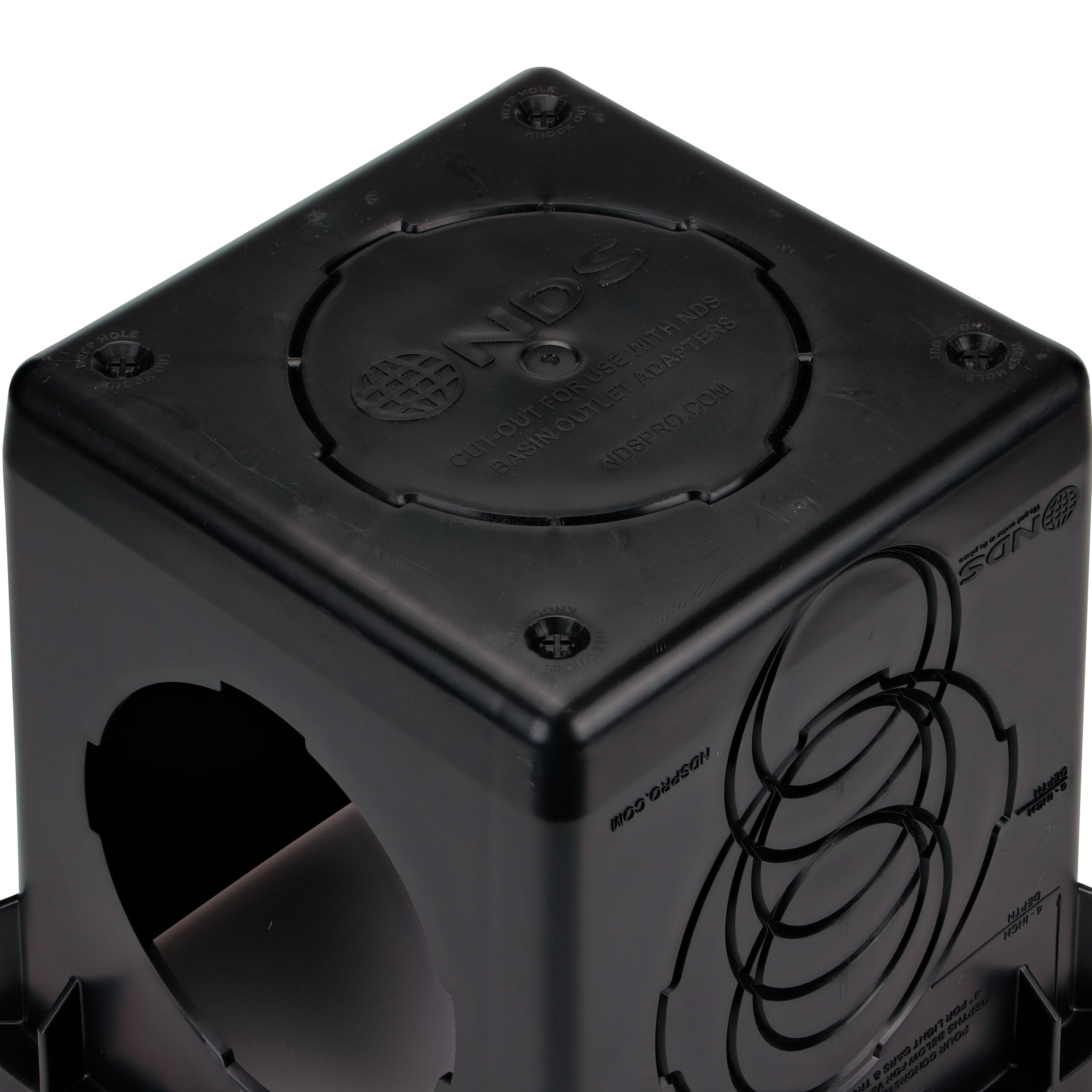

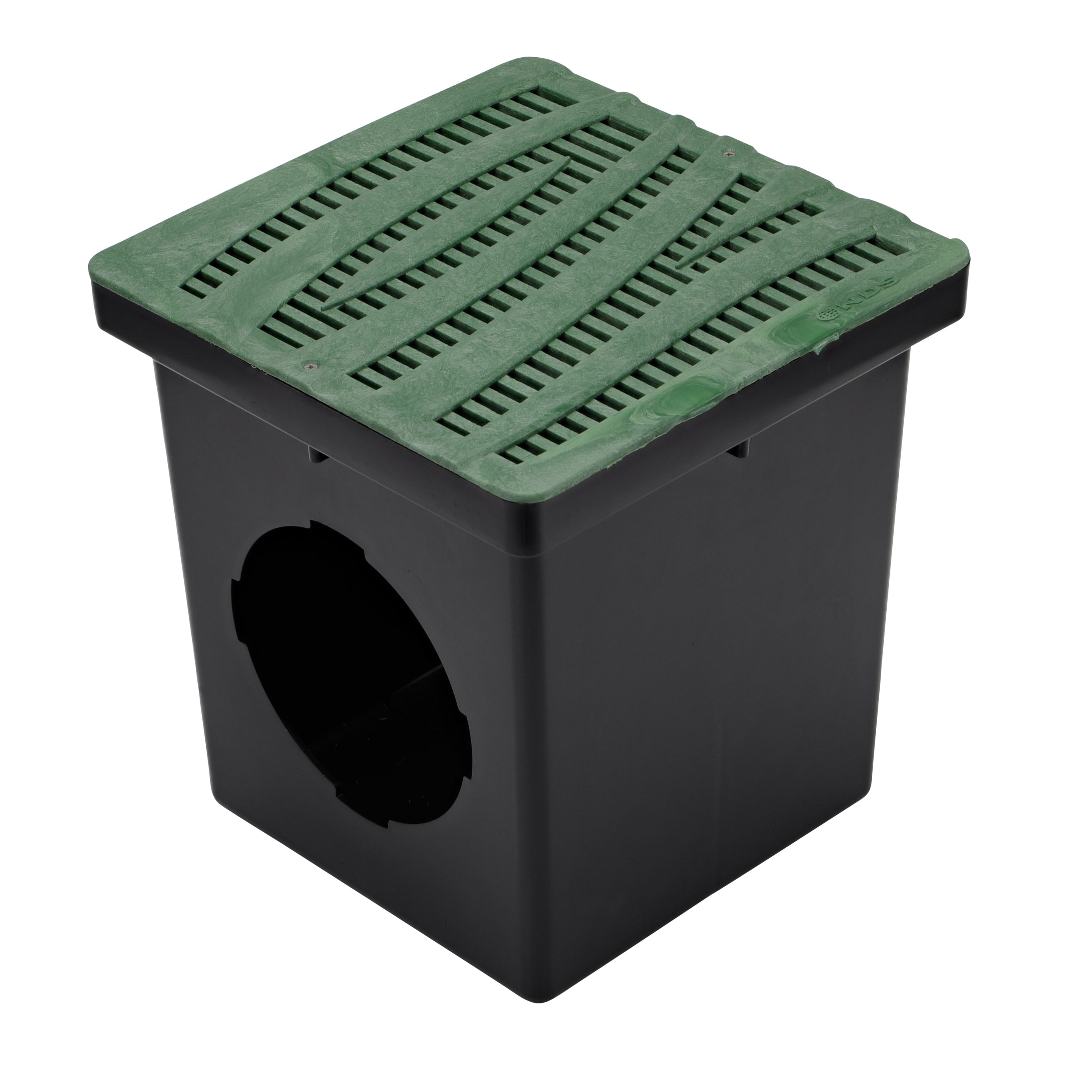

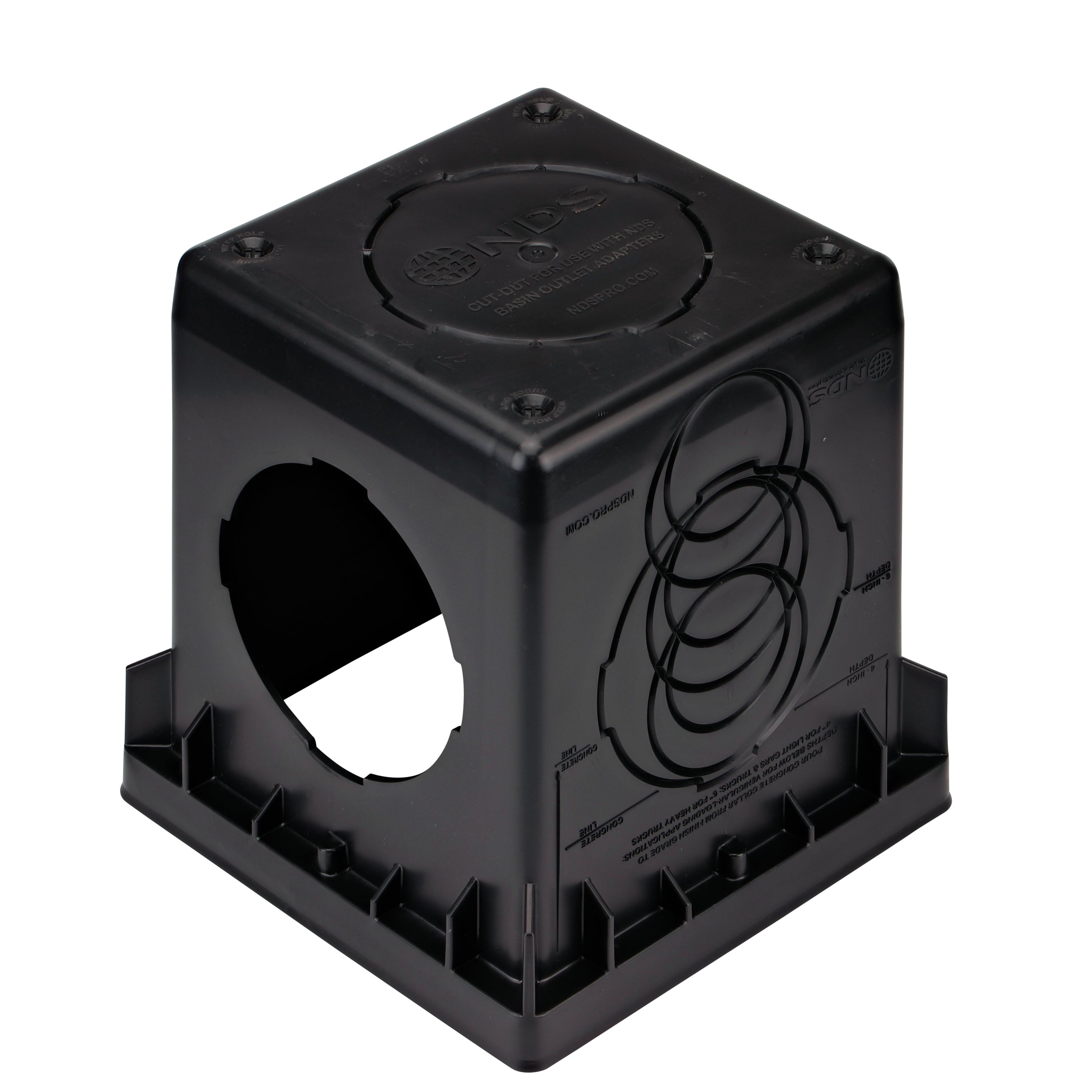

NDS 1200 - 12" Catch Basin (2 Openings)

NDS 1200 - 12" Catch Basin (2 Openings)

The NDS 1200 is a 12-inch square catch basin designed for efficient water drainage in residential and commercial landscapes. With two openings, it offers versatile connection options for various drainage systems.

Key Features:

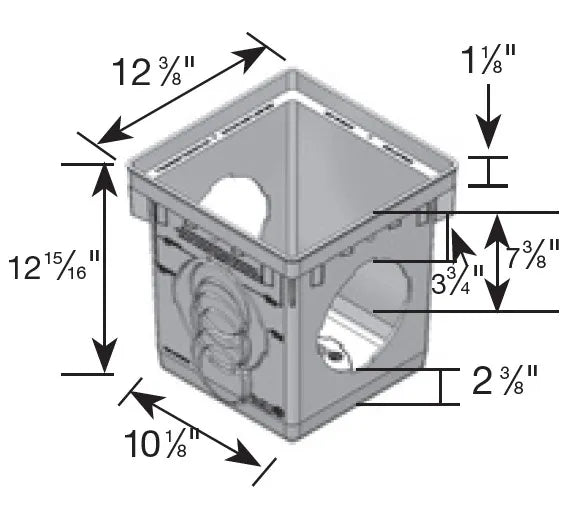

• Dimensions: 12" x 12" x 12"
• Material: Durable, UV-resistant plastic

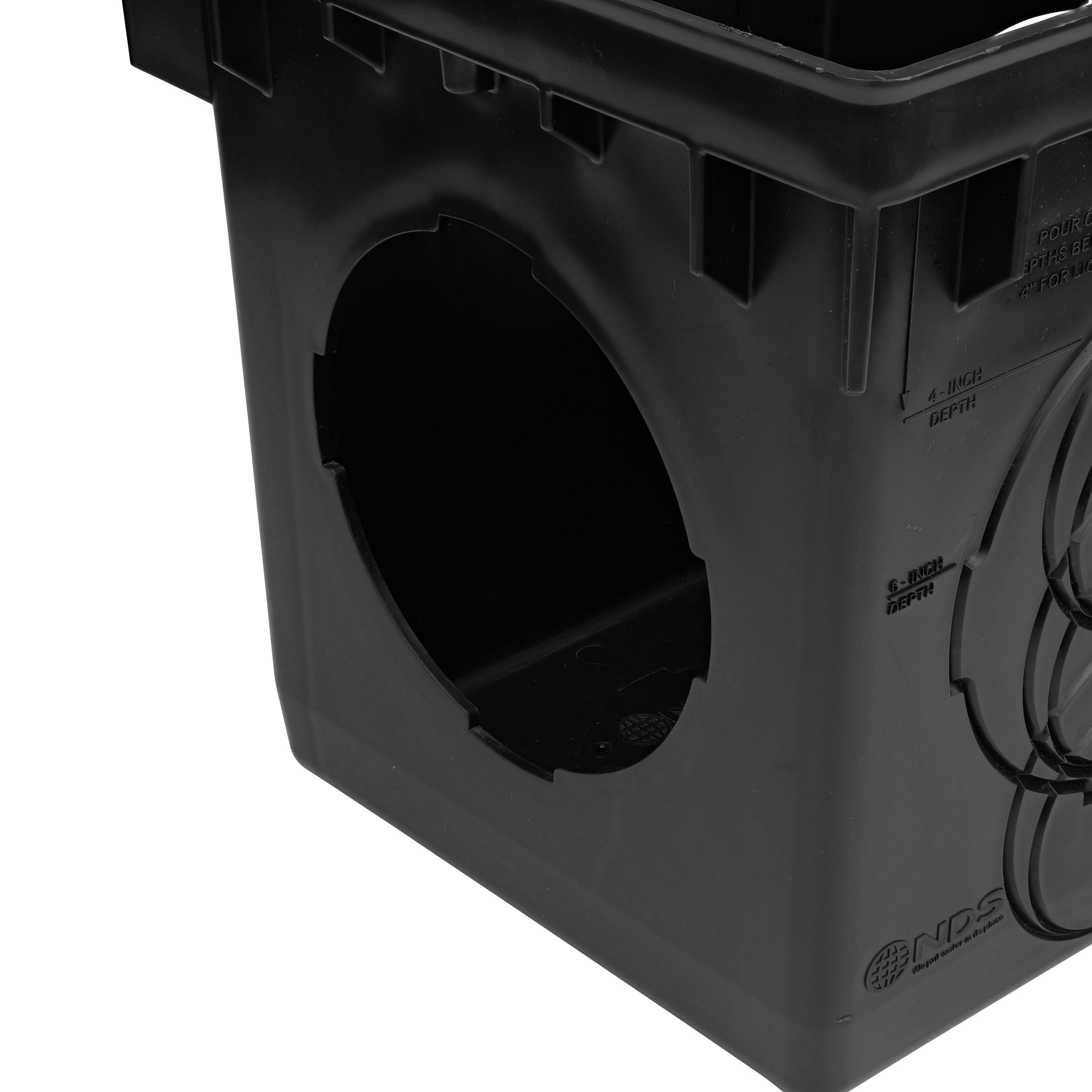

• Two pre-molded pipe openings
• Compatible with 3" and 4" drain pipes
• Includes removable atrium grate

Installation Instructions:

1. Excavate an area slightly larger than the catch basin.
2. Create a 4" gravel base for stability.
3. Level the catch basin, ensuring the grate is flush with the ground surface.
4. Connect drain pipes to the openings using appropriate fittings.
5. Backfill around the basin, compacting soil as you go.
6. Install the grate and adjust surrounding landscape as needed.

Product Specifications:

• Load rating: Light vehicular traffic (when properly installed)
• Color: Black
• Weight: Approximately 5 lbs
• Maximum flow rate: 29 GPM
• Outlet size options: 3" or 4" round
