NDS 117BC - Jumbo Valve Box & Cover - 13" x 20" Jumbo Box, Overlapping Cover - ICV
Colors: Black (#117CB), Brown (#117C BRN), Green (#117C), Sand (#117C SAND), Purple Reclaimed Water (#117CR), and Green Sewer (#117CS)
The NDS Standard Series 13" x 20" body is tapered and has a minimum wall thickness of 0.250". The body has a double wall at the top cover seat area with a minimum thickness of 0.250". The cover seat area has 16 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The 13" x 20" cover has an average thickness of 0.250". The valve box has a 3/8" Brass nut for the bolt-down as a standard feature.
Key Features:
- 13" x 20" rectangular jumbo design
- Durable construction with structural reinforcing ribs
- Double wall at the top cover seat area with structural support ribs on the underside
- Overlapping cover prevents dirt and debris from entering the box
- Slot on lid for easy lifting with flathead screwdriver
- Built-in pipe holes allow irrigation piping to pass through the walls, so the box does not rest on the pipe
- Patented Universal Locking Mechanism (ULM) enables secure cover attachment with various bolts and screws (3/8 to 1/2 in. diameter, minimum 2-1/2 in. length)
- ICV (Irrigation Control Valve) designation for easy identification
Installation Instructions:
- Excavate the area where the valve box will be installed, ensuring proper depth for the 12-inch height box.
- Level the bottom of the excavation and place the box in position.
- Route irrigation piping through the built-in pipe holes in the box walls.
- Backfill around the box with soil, ensuring it remains level with the surrounding surface.
- Place the overlapping cover on top, ensuring proper alignment with the box rim.
- If desired, secure the cover using the Universal Locking Mechanism with appropriate hardware.
- Test accessibility and ensure the cover sits flush with the surrounding landscape.
Product Specifications:
- Material: High-impact structural plastic
- Color Options: Multiple colors available including Black, Green, Sand, Brown, and Purple

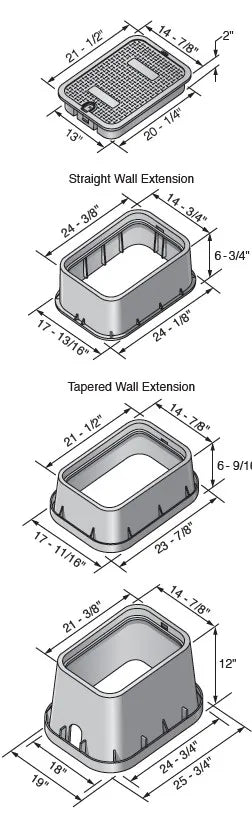

- Cover Dimensions: 21-1/2" L x 14-7/8" W x 2" H

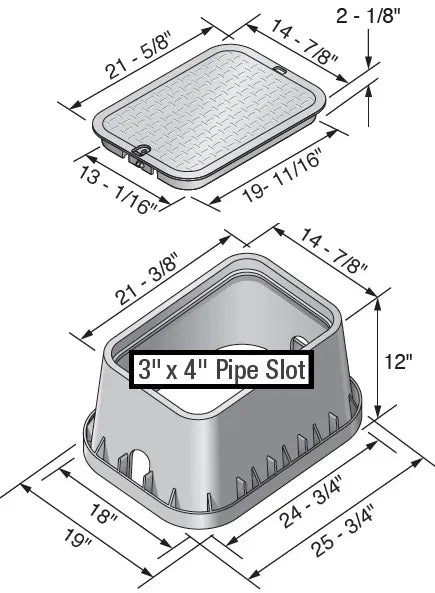

- Box Dimensions: 25-3/4" L x 19" W x 12-1/4" H (exterior)
- Interior Access Opening: 13" x 20"
- Cover Weight: 5.0 lbs
- Total Weight (box and cover): 14.0 lbs
- Load rated to withstand pedestrian traffic and lawn care equipment
- Compatible with standard irrigation control valves and fittings
Maintenance: The cover features a convenient slot for easy lifting with a flathead screwdriver, allowing simple access for routine maintenance of irrigation components. Regularly inspect the overlapping cover seal to ensure continued protection against dirt and debris infiltration. The durable construction requires minimal maintenance while providing long-term protection for your irrigation system components.
