NDS 1 - 4" Square Grate - Green

NDS 1 - 4" Square Grate - Green

The NDS 1 4IN Square Grate is a durable and versatile drainage solution designed for residential and light commercial applications. This sleek, square grate provides efficient water drainage while maintaining an aesthetically pleasing appearance. Perfect for patios, driveways, walkways, and other outdoor areas, the NDS 1 4IN Square Grate offers superior performance and long-lasting reliability.

Product Specifications:

• Dimensions: 4" x 4" (10.16 cm x 10.16 cm)
• Material: High-impact polypropylene
• Color: Green (other colors may be available)
• Load Class: Light duty (pedestrian traffic)
• Flow Rate: Up to 10 GPM (gallons per minute)
• Compatible with 3" and 4" drain pipes
• UV resistant
• Snap-in design for easy installation and removal

Installation Instructions:

1. Prepare the drainage area by excavating to the appropriate depth and grade.
2. Install the drain pipe according to local building codes and manufacturer's instructions.
3. Place the drain body (sold separately) into the excavated area, ensuring it's level and at the correct height.
4. Connect the drain body to the drain pipe using appropriate fittings and adhesives.
5. Backfill around the drain body, compacting the soil as you go to prevent settling.
6. Pour concrete or install pavers around the drain body, leaving a slight slope towards the drain for proper water flow.
7. Once the surrounding area is complete, simply snap the NDS 1 4IN Square Grate into place on the drain body.
8. Test the installation by pouring water over the grate to ensure proper drainage.

This product offers a simple yet effective solution for managing water runoff in various outdoor settings. Its durable construction and easy installation make it an excellent choice for both DIY enthusiasts and professional contractors.

Product and Technical Information

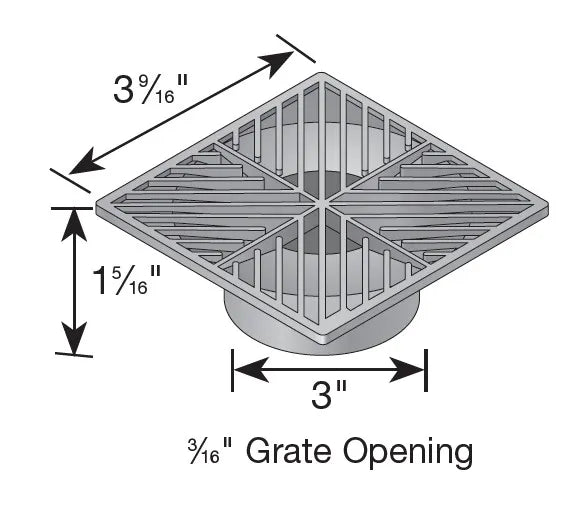

Dimensions: L 3-9/16" x W 3-9/16" x H 1-5/16"

Colors: Green (#1), Black (#2), Gray (#3)

Technical Specifications - NDS 4" Square Grate
Installation Information - NDS CAD Details - Square Grate with Adaptor Corrugated Elbow
Installation Information - NDS CAD Details - Square Grate with Adaptor Corrugated Tee
Installation Information - NDS CAD Details - Square Grate with Adaptor Elbow
Installation Information - NDS CAD Details - Square Grate with Adaptor Tee
Installation Information - NDS CAD Details - Square Grate with Sanitary Sewer and Drain Tee Corrugated
Installation Information - NDS CAD Details - Square Grate with Sanitary Sewer and Drain Tee
Installation Information - NDS CAD Details - Square Grate with Sediment Elbow Catch Basin Tee
Installation Information - NDS CAD Details - Square Grate with Sewer and Drain Elbow Corrugated
Installation Information - NDS CAD Details - Square Grate with Sewer and Drain Elbow
Installation Information - NDS CAD Details - Square Grate with Spee-D Basin Corrugated
Installation Information - NDS CAD Details - Square Grate with Spee-D Basin Tee
Installation Information - NDS CAD Details - Square Grate with Spee-D Basin
