2350 Spee-D Channel Drain Bottom Outlet

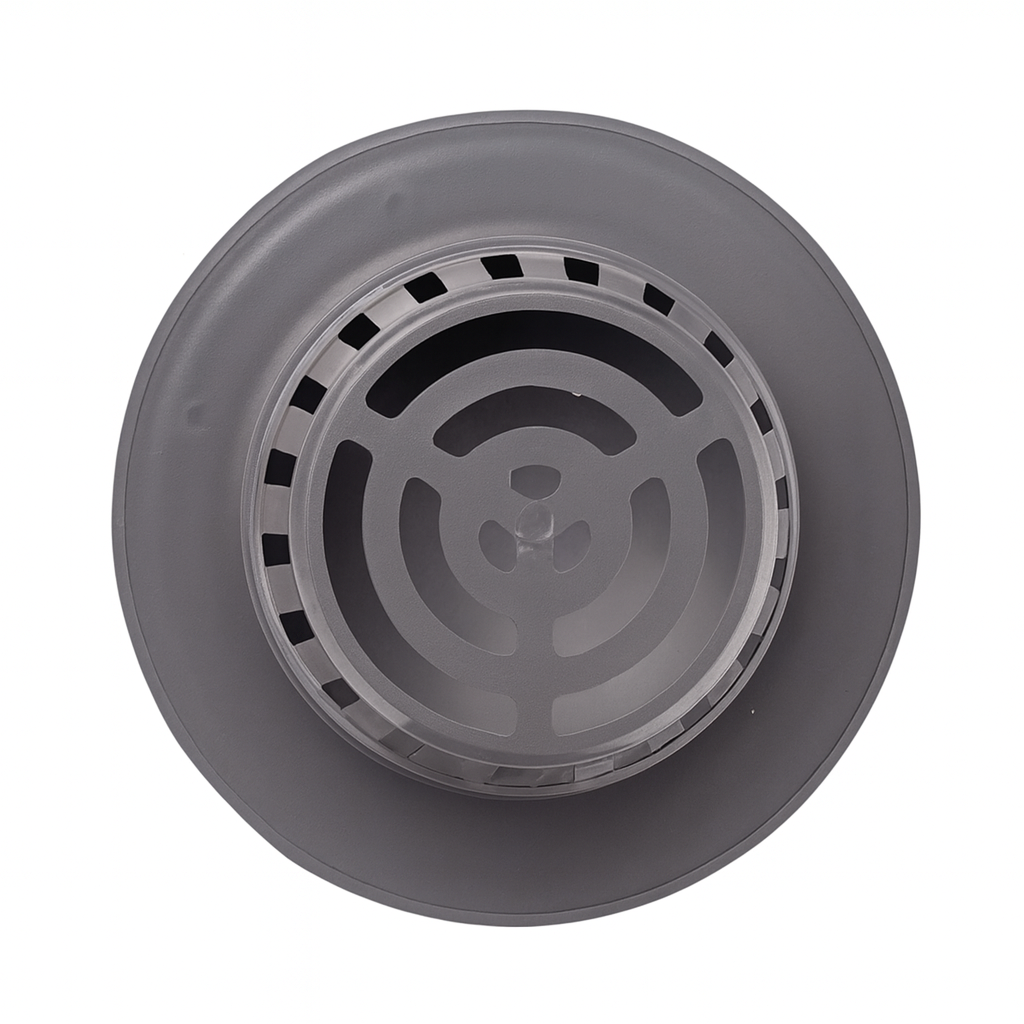

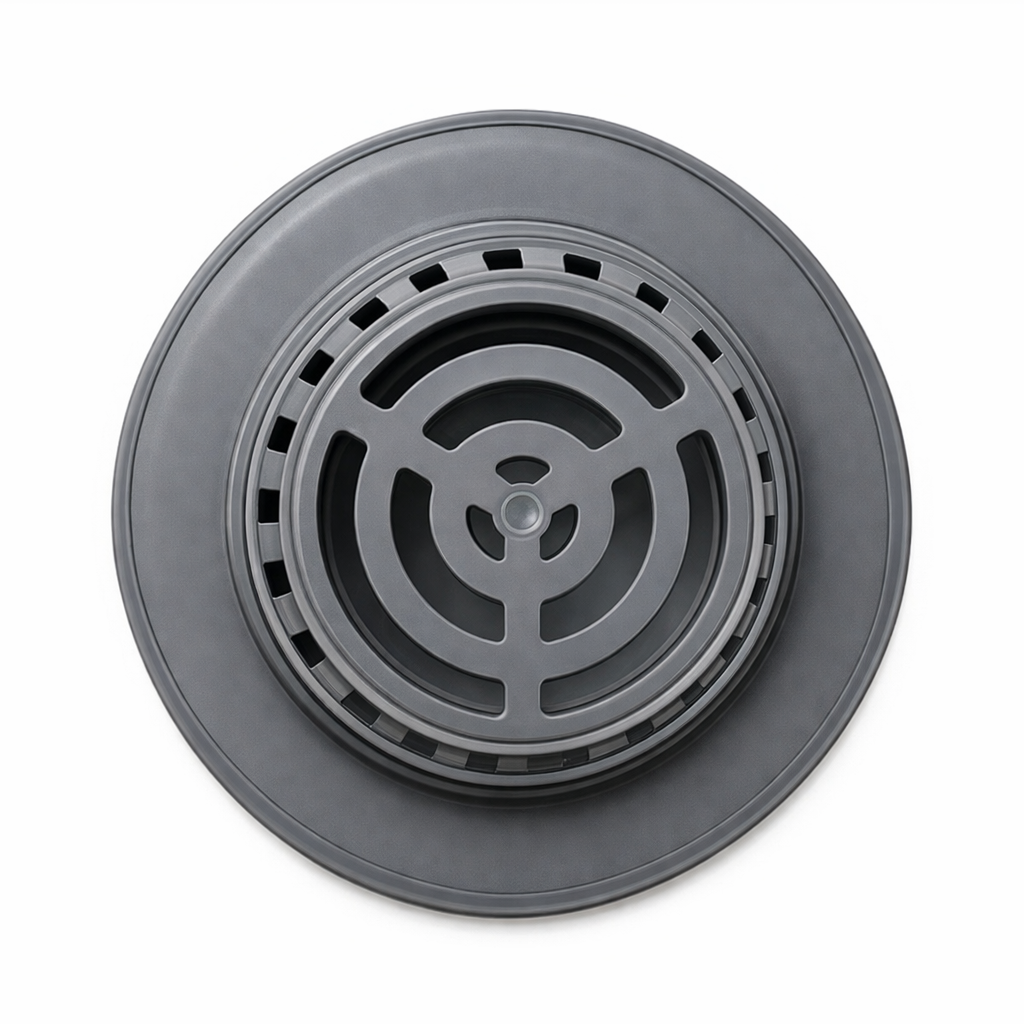

NDS 2350 - Spee-D Channel Drain Bottom Outlet

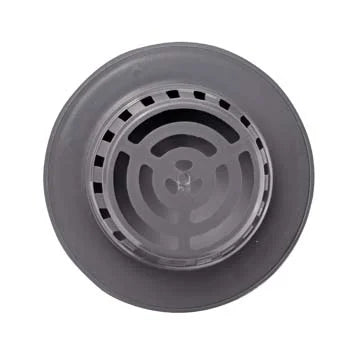

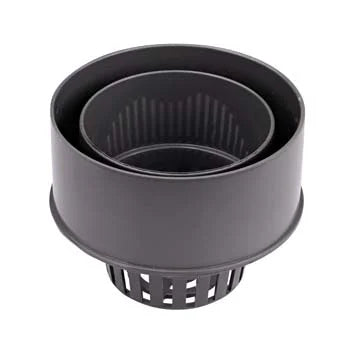

The NDS 2350 bottom outlet atrium is designed to fit the 4" wide Spee-D Channel linear drainage system and serves as a critical component for effective water management in residential and commercial applications.

Key Features:

• This bottom outlet helps move surface water away from the area while minimizing the amount of debris entering pipe outlets of the system
• Bottom outlet can be added anywhere in the channel run for maximum installation flexibility

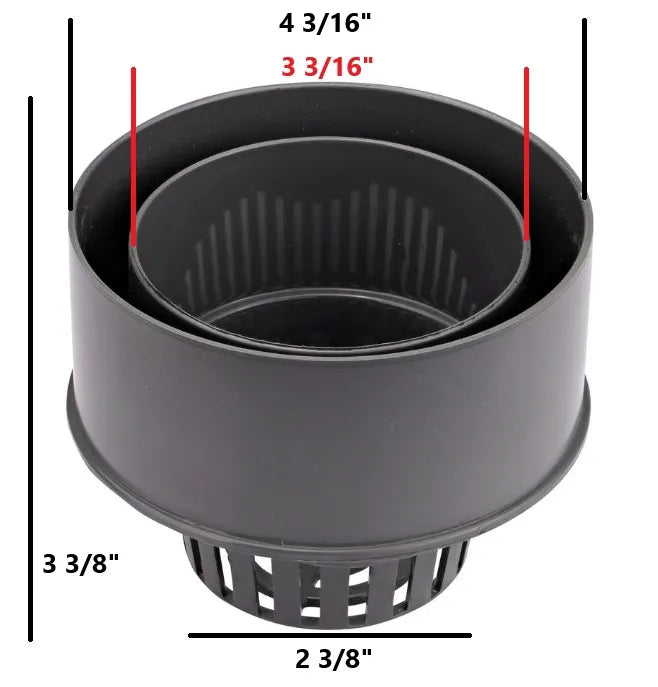

• Connects to 3" in. & 4" in. sewer and drain fittings
• Made of polyvinyl chloride treated with UV inhibitors for long-lasting durability

Installation:

• To install the bottom outlet, cut a 3 in. hole where desired in the base of the Spee-D Channel, insert the outlet, and solvent weld for a secure, watertight connection.

Applications:

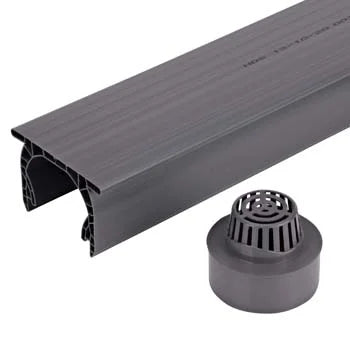

•  Works with the Spee-D Channel Drain, part of the NDS Profile Channel series, to capture moderate flows from driveways, concrete & paver patios, pool areas, courtyards, & walkways to prevent slippery mildew, concrete staining, & costly structural damage

Material Benefits:

• NDS® channel drains are a great alternative to the standard concrete drains and have built-in UV inhibitors to prevent fading and cracking from the sun, chemical-resistant, rustproof, lightweight, and easy to install
• This bottom outlet is an essential component for creating an efficient drainage system that effectively channels water away from surfaces while preventing debris accumulation in the drainage pipes.

Product and Technical Information

Technical Specifications - NDS Spee-D Channel With Bottom Outlet
Technical Specifications - NDS Spee-D Channel Drain Accessories

Installation Instructions - NDS Channel Drain
Installation Instructions - NDS Spee-D Channel Drain End Outlet

Installation Instructions - NDS Spee-D Channel Drain Bottom Outlet

Installation Instructions - NDS Spee-D Channel Drain Typical Pedestrian Traffic
Installation Instructions - NDS Spee-D Channel Drain Typical Landscape Traffic

Installation Instructions - NDS Spee-D Channel Drain Light Vehicular Traffic Pavers
Installation Instructions - NDS Spee-D Channel Drain Typical Light Vehicular Traffic
